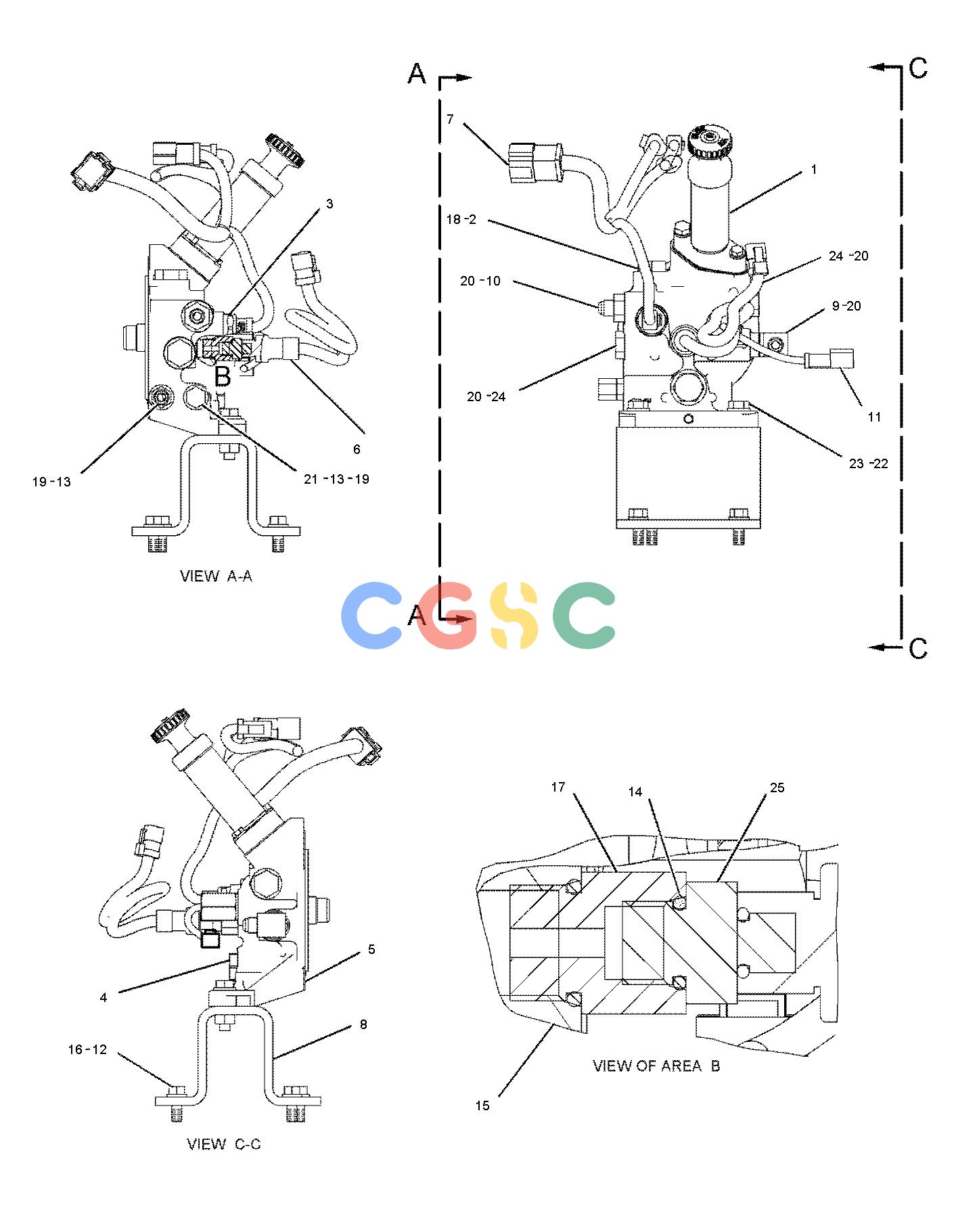

| 1. | 116-5411Y | [1] | PUMP GP-FUEL PRIMING(HAND) | |
| 2. | 139-6873Y | [1] | VALVE GP-FUEL BYPASS(FILTER) | |
| 3. | 197-8391Y | [1] | SENSOR GP-TEMPERATURE(FUEL) | |
| 4. | 233-6742Y | [1] | VALVE GP-CHECK(FUEL) | |
| 5. | 237-9314 | [1] | BASE AS | |
| | 9S-4167 | [1] | STUD-HOLLOW(1-14X1.47-IN) | |
| 6. | 239-2396Y | [1] | SENSOR GP-PRESSURE(FUEL) | |
| 7. | 240-8721 | [1] | HARNESS AS-ENGINE(FUEL FILTER) | |
| 8. | 240-9567 | [1] | BRACKET AS | |
| | 159-9541M | [2] | NUT-WELD(M10X1.5-THD) | |
| 9. | 005-4362 | [1] | ELBOW | |
| 10. | 030-8188 | [1] | CONNECTOR | |
| 11. | 258-0883Y | [1] | SWITCH GP-PRESSURE(FUEL) | |
| 12. | 0S-1594 | [4] | BOLT(3/8-16X1-IN) | |
| 13. | 2R-6806 | [2] | CONNECTOR | |
| 14. | 3J-1907 | [1] | SEAL-O-RING | |
| 15. | 3K-0360 | [1] | SEAL-O-RING | |
| 16. | 5M-2894 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 17. | 5P-6944 | [1] | ADAPTER(STRAIGHT THREAD-O RING) | |
| 18. | 6V-4589 | [1] | SEAL-O-RING | |
| 19. | 6V-5049 | [2] | SEAL-O-RING | |
| 20. | 8L-2786 | [4] | SEAL-O-RING | |
| 21. | 8S-4950 | [1] | CAP(FLARED 37-DEG) | |
| 22. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 23. | 8T-4186M | [2] | BOLT(M10X1.5X40-MM) | |
| 24. | 9S-4185 | [2] | PLUG(3/4-16-THD)(STRAIGHT THREAD-O RING) | |
| 25. | 9X-0261 | [1] | ADAPTER | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
