Pos.	Part No	Qty	Parts name
1.	8C-3451	[1]	CAP-DUST(HYDRAULIC OIL)
2.	113-6380I	[1]	HOSE AS
3.	121-3286I	[2]	HOSE AS
4.	135-7902I	[1]	HOSE AS
5.	148-8430	[1]	TEE AS
	6V-9746	[1]	SEAL-O-RING
	7X-0873	[1]	TEE
6.	164-5590	[1]	VALVE AS-FLUID SAMPLING(HYDRAULIC FAN OIL)
	3J-7354	[1]	SEAL-O-RING
	8C-3446	[1]	VALVE-SAMPLING
7.	174-6781	[1]	TUBE AS
8.	174-6782	[1]	TUBE AS
9.	174-6886	[1]	BLOCK-MANIFOLD
10.	174-8665I	[1]	HOSE AS
11.	178-8903	[1]	TUBE AS
12.	178-8977	[1]	PLATE AS
13.	185-9398I	[1]	HOSE AS
14.	188-8726	[1]	VALVE-BYPASS(HYDRAULIC FAN FLUID FLOW)
15.	190-6289	[1]	PLATE
16.	219-6692I	[1]	HOSE AS
17.	193-9230	[1]	VALVE GP-CHECK(HYDRAULIC FAN FLUID FLOW)
	3D-2824	[1]	SEAL-O-RING
	6V-9746	[1]	SEAL-O-RING
18.	194-0772	[1]	TUBE AS
19.	194-0773	[1]	TUBE AS
20.	194-0774	[1]	TUBE AS
21.	194-0775	[1]	TUBE AS
22.	194-1497	[1]	TEE AS
	3D-2824	[1]	SEAL-O-RING
	6V-9746	[1]	SEAL-O-RING
	8T-8900	[1]	TEE-O-RING PORT
23.	194-2530Y	[1]	VALVE & MTG GP-HYDRAULIC FAN
24.	211-3375	[1]	TUBE AS
25.	211-3376	[1]	TUBE AS
26.	211-3377	[1]	PLATE
27.	211-6062	[1]	VALVE GP-CHECK(HYDRAULIC FAN FLUID FLOW)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
28.	148-8305	[1]	ADAPTER AS
	3J-1907	[1]	SEAL-O-RING
	5P-9617	[1]	ADAPTER
29.	148-8322	[1]	CONNECTOR AS
	2M-9780	[1]	SEAL-O-RING
	6V-8640	[1]	CONNECTOR
	6V-9746	[1]	SEAL-O-RING
30.	148-8324	[2]	CONNECTOR AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-9746	[1]	SEAL-O-RING
	6V-9874	[1]	CONNECTOR(STRAIGHT)
31.	148-8327	[2]	CONNECTOR AS
			(EACH INCLUDES)
	3D-2824	[1]	SEAL-O-RING
	6V-8637	[1]	CONNECTOR
	6V-9746	[1]	SEAL-O-RING
32.	148-8336	[1]	CONNECTOR AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8636	[1]	CONNECTOR
33.	148-8339	[3]	CONNECTOR AS
			(EACH INCLUDES)
	6V-8716	[1]	CONNECTOR(STRAIGHT)
	6V-9746	[1]	SEAL-O-RING
	7M-8485	[1]	SEAL-O-RING
34.	148-8347	[3]	ELBOW AS
			(EACH INCLUDES)
	3D-2824	[1]	SEAL-O-RING
	6V-9007	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
35.	148-8376	[1]	ELBOW AS
	6V-8983	[1]	ELBOW
	6V-9746	[2]	SEAL-O-RING
36.	148-8379	[1]	ELBOW AS
	1J-9671	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	7X-0901	[1]	ELBOW
37.	148-8407	[1]	PLUG AS
	3J-1907	[1]	SEAL-O-RING
	9S-4191	[1]	PLUG(9/16-18-THD)
38.		[1]	PLUG AS
	3D-2824	[1]	SEAL-O-RING
	9S-4183	[1]	PLUG(1-1/16-12-THD)
39.	148-8411	[2]	PLUG AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	9S-4185	[1]	PLUG(3/4-16-THD)
40.	148-8417	[1]	REDUCER AS
	6V-8397	[1]	SEAL-O-RING
	6V-8941	[1]	REDUCER
41.	148-8451	[1]	TEE AS
	6V-8791	[1]	TEE-FACE SEAL
	6V-9746	[3]	SEAL-O-RING
42.	150-4033	[1]	TEE AS
	6V-9746	[2]	SEAL-O-RING
	6V-9846	[1]	TEE
43.	150-4049	[1]	ELBOW AS
	6V-9746	[1]	SEAL-O-RING
	7M-8485	[1]	SEAL-O-RING
	8T-4149	[1]	ELBOW
44.	164-6861	[1]	UNION AS
	6V-8733	[1]	UNION
	6V-9746	[2]	SEAL-O-RING
45.	164-6862	[1]	TEE AS
	6V-9160	[1]	TEE-FACE SEAL
	6V-9746	[3]	SEAL-O-RING
46.	2P-1293	[2]	LOCKNUT(1-3/16-12-THD)
47.	5C-7261M	[2]	NUT(M8X1.25-THD)
48.	5P-7462	[3]	CLIP(SLOT)
49.	5P-7463	[3]	CLIP(TAB)
50.	5P-7466	[1]	CLIP(SLOT)
51.	5P-7467	[1]	CLIP(TAB)
52.	5P-8112	[1]	GROMMET
53.	5P-9297	[2]	CLIP(LOOP)
54.	6V-0683	[3]	GROMMET
55.	6V-9746	[2]	SEAL-O-RING
56.	7X-0531	[1]	WASHER-HARD(31X52.5X6-MM THK)
58.	8T-1887	[2]	CLIP(SLOT)
59.	8T-1888	[2]	CLIP(TAB)
60.	8T-4121	[12]	WASHER-HARD(11X21X2.5-MM THK)
61.	8T-4133M	[6]	NUT(M10X1.5-THD)
62.	8T-4139M	[3]	BOLT(M12X1.75X30-MM)
63.	8T-4177M	[2]	BOLT(M8X1.25X90-MM)
64.	8T-4185M	[2]	BOLT(M10X1.5X50-MM)
65.	8T-4195M	[2]	BOLT(M10X1.5X30-MM)
66.	8T-4223	[4]	WASHER-HARD(13.5X25.5X3-MM THK)
67.	8T-4224	[8]	WASHER-HARD(8.8X16X2-MM THK)
68.	8T-4244M	[1]	NUT(M12X1.75-THD)
70.	8T-5005M	[2]	BOLT(M10X1.5X70-MM)
71.	8T-7547M	[4]	BOLT(M8X1.25X30-MM)
72.	9X-6580	[1]	NUT(1-3/16-12-THD)
73.	9X-8258	[1]	WASHER(33X56X6-MM THK)
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION

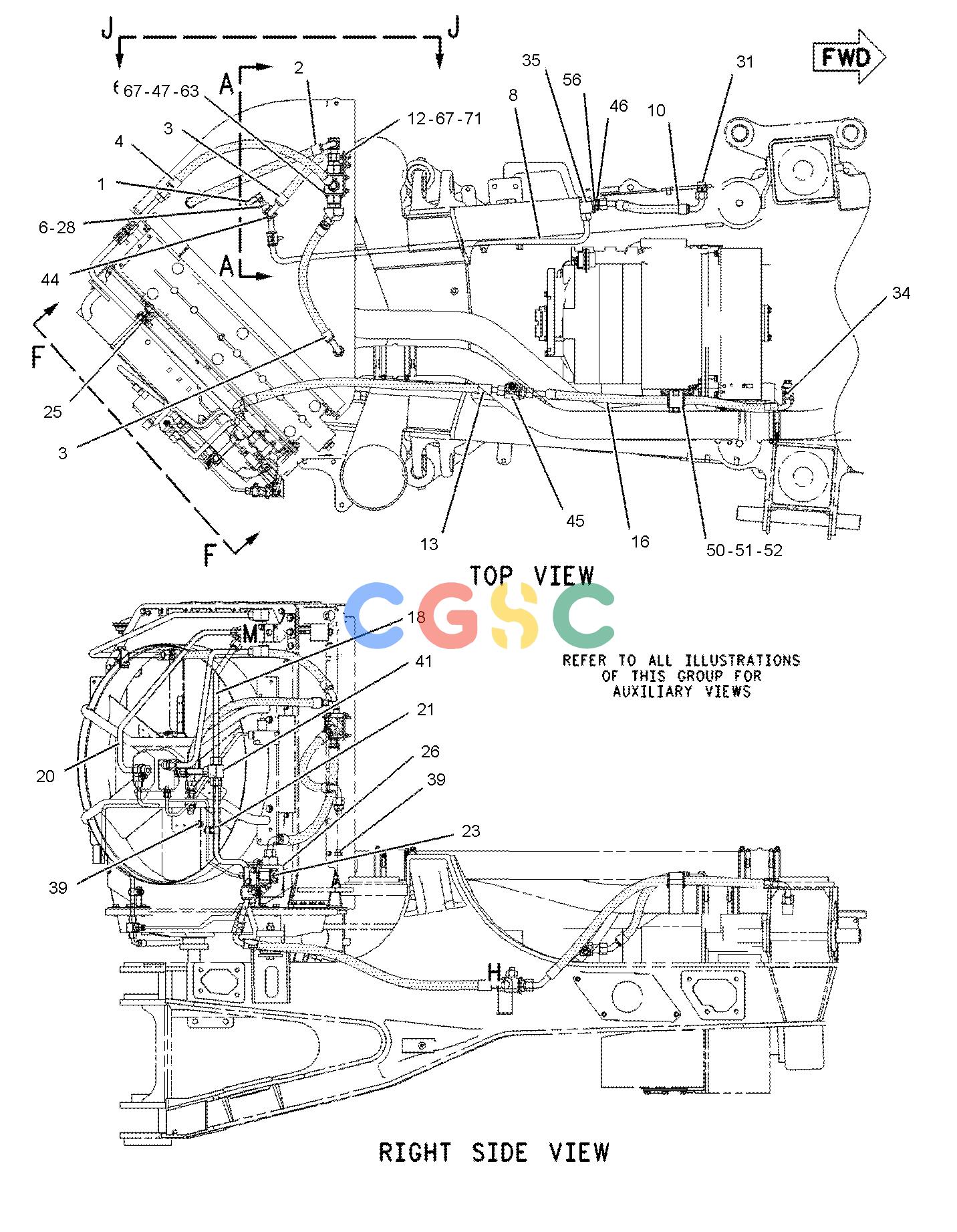

卡特零件查询（725） 210-5882: LINES GP-HYDRAULIC FAN
