Pos.	Part No	Qty	Parts name
1.	8C-3451	[1]	CAP-DUST(HYDRAULIC OIL)
2.	113-6380I	[1]	HOSE AS
3.	121-3286I	[2]	HOSE AS
4.	135-7902I	[1]	HOSE AS
5.	148-8322	[1]	CONNECTOR AS
	2M-9780	[1]	SEAL-O-RING
	6V-8640	[1]	CONNECTOR
	6V-9746	[1]	SEAL-O-RING
6.	148-8327	[2]	CONNECTOR AS
			(EACH INCLUDES)
	3D-2824	[1]	SEAL-O-RING
	6V-8637	[1]	CONNECTOR
	6V-9746	[1]	SEAL-O-RING
7.	148-8332	[2]	ADAPTER AS
			(EACH INCLUDES)
	1J-9671	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	8T-5043	[1]	ADAPTER
8.	148-8347	[3]	ELBOW AS
			(EACH INCLUDES)
	3D-2824	[1]	SEAL-O-RING
	6V-9007	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
9.	148-8376	[1]	ELBOW AS
	6V-8983	[1]	ELBOW
	6V-9746	[2]	SEAL-O-RING
10.	148-8378	[1]	ELBOW AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8724	[1]	ELBOW
11.	148-8411	[2]	PLUG AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	9S-4185	[1]	PLUG(3/4-16-THD)
12.	148-8430	[1]	TEE AS
	6V-9746	[1]	SEAL-O-RING
	7X-0873	[1]	TEE
13.	151-9929	[1]	VALVE GP-COMPENSATING(HYDRAULIC FAN OIL)
14.	163-3318Y	[1]	VALVE & MTG GP-HYDRAULIC FAN
15.	164-5590	[1]	VALVE AS-FLUID SAMPLING(HYDRAULIC FAN OIL)
	3J-7354	[11]	SEAL-O-RING
	8C-3446	[1]	VALVE-SAMPLING
16.	164-6861	[1]	UNION AS
	6V-8733	[1]	UNION
	6V-9746	[2]	SEAL-O-RING
17.	164-6862	[1]	TEE AS
	6V-9160	[1]	TEE-FACE SEAL
	6V-9746	[3]	SEAL-O-RING
18.	174-6781	[1]	TUBE AS
19.	174-6782	[1]	TUBE AS
20.	174-6886	[1]	BLOCK-MANIFOLD
21.	174-8665I	[1]	HOSE AS
22.	178-8903	[1]	TUBE AS
23.	178-8904	[1]	TUBE AS
24.	178-8905	[1]	TUBE AS
25.	178-8977	[1]	PLATE AS
26.	185-9398I	[1]	HOSE AS
27.	188-8726	[1]	VALVE-BYPASS(HYDRAULIC FAN FLUID FLOW)
28.	190-6287	[1]	TUBE AS
29.	190-6288	[1]	TUBE AS
30.	190-6289	[1]	PLATE
31.	193-5314I	[1]	HOSE AS
32.	193-9230	[1]	VALVE GP-CHECK(HYDRAULIC FAN)
	3D-2824	[1]	SEAL-O-RING
	6V-9746	[1]	SEAL-O-RING
33.	194-0772	[1]	TUBE AS
34.	194-0773	[1]	TUBE AS
35.	194-0774	[1]	TUBE AS
36.	194-0775	[1]	TUBE AS
37.	194-1497	[1]	TEE AS
	3D-2824	[1]	SEAL-O-RING
	6V-9746	[1]	SEAL-O-RING
	8T-8900	[1]	TEE-O-RING PORT
38.	211-6062	[1]	VALVE GP-CHECK(HYDRAULIC FAN FLUID FLOW)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
39.	148-8305	[1]	ADAPTER AS
	3J-1907	[1]	SEAL-O-RING
	5P-9617	[1]	ADAPTER
40.	148-8324	[2]	CONNECTOR AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-9746	[1]	SEAL-O-RING
	6V-9874	[1]	CONNECTOR(STRAIGHT)
41.	148-8326	[1]	CONNECTOR AS
	3J-7354	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-9872	[1]	CONNECTOR
42.	148-8339	[3]	CONNECTOR AS
			(EACH INCLUDES)
	6V-8716	[1]	CONNECTOR(STRAIGHT)
	6V-9746	[1]	SEAL-O-RING
	7M-8485	[1]	SEAL-O-RING
43.	148-8407	[1]	PLUG AS
	3J-1907	[1]	SEAL-O-RING
	9S-4191	[1]	PLUG(9/16-18-THD)
44.	148-8417	[1]	REDUCER AS
	6V-8397	[1]	SEAL-O-RING
	6V-8941	[1]	REDUCER
45.	148-8451	[1]	TEE AS
	6V-8791	[1]	TEE-FACE SEAL
	6V-9746	[3]	SEAL-O-RING
46.	150-4033	[1]	TEE AS
	6V-9746	[2]	SEAL-O-RING
	6V-9846	[1]	TEE
47.	150-4049	[1]	ELBOW AS
	6V-9746	[1]	SEAL-O-RING
	7M-8485	[1]	SEAL-O-RING
	8T-4149	[1]	ELBOW
48.	164-5570	[1]	UNION AS
	6V-8397	[1]	SEAL-O-RING
	6V-8730	[2]	UNION(FACE SEAL)
49.	2P-1293	[2]	LOCKNUT(1-3/16-12-THD)
50.	3D-2824	[1]	SEAL-O-RING
51.	5C-7261M	[4]	NUT(M8X1.25-THD)
52.	5P-7462	[3]	CLIP(SLOT)
53.	5P-7463	[3]	CLIP(TAB)
54.	5P-7466	[1]	CLIP(SLOT)
55.	5P-7467	[1]	CLIP(TAB)
56.	5P-8112	[1]	GROMMET
57.	5P-9297	[3]	CLIP(LOOP)
58.	6V-0683	[3]	GROMMET
59.	6V-9746	[2]	SEAL-O-RING
60.	7X-0531	[1]	WASHER-HARD(31X52.5X6-MM THK)
61.	7X-0818M	[2]	BOLT(M8X1.25X45-MM)
62.	8R-9400	[1]	CLAMP
63.	8T-1887	[1]	CLIP(SLOT)
64.	8T-1888	[1]	CLIP(TAB)
65.	8T-4121	[10]	WASHER-HARD(11X21X2.5-MM THK)
66.	8T-4133M	[5]	NUT(M10X1.5-THD)
67.	8T-4139M	[3]	BOLT(M12X1.75X30-MM)
68.	8T-4177M	[2]	BOLT(M8X1.25X90-MM)
69.	8T-4195M	[3]	BOLT(M10X1.5X30-MM)
70.	8T-4223	[6]	WASHER-HARD(13.5X25.5X3-MM THK)
71.	8T-4224	[12]	WASHER-HARD(8.8X16X2-MM THK)
72.	8T-4244M	[2]	NUT(M12X1.75-THD)
73.	8T-4956M	[1]	BOLT(M12X1.75X35-MM)
74.	8T-5005M	[2]	BOLT(M10X1.5X70-MM)
75.	8T-7547M	[4]	BOLT(M8X1.25X30-MM)
76.	9X-6580	[1]	NUT(1-3/16-12-THD)
77.	9X-8258	[1]	WASHER(33X56X6-MM THK)
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION

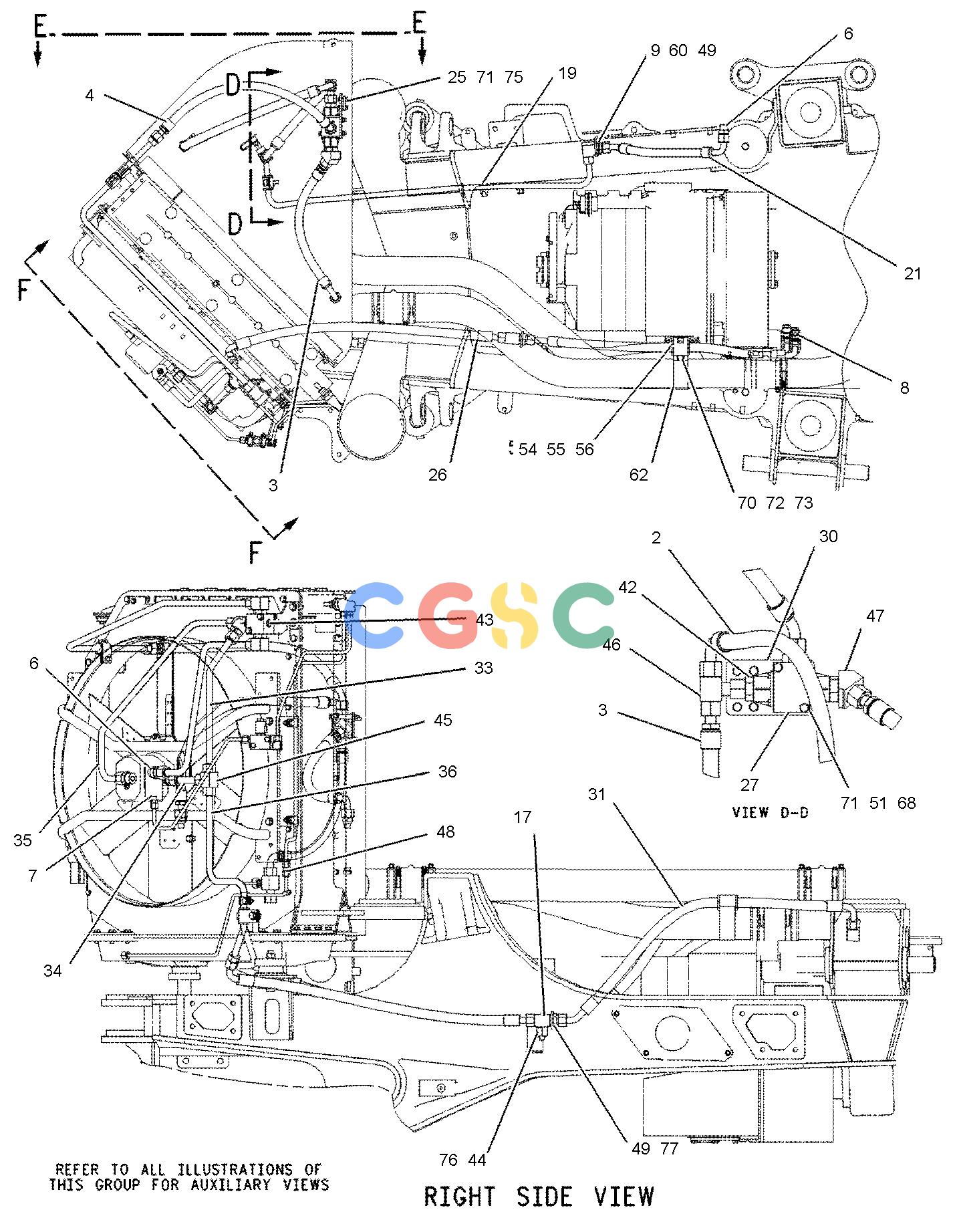

卡特零件查询（725） 149-0010: LINES GP-HYDRAULIC FAN
