凯斯零件查询(RBX461) - CASE IH ROUND BALER (12/01-12/02) (070) - WIDE PICKUP, FEEDER, FLOTATION & SHIELDS Case Agriculture

作者：广数供应链运营团队
浏览数：
时间：2025-01-25 21:47:08
Parts Contact me WhatsApp

工程机械零件图册查询

专业 覆盖挖掘机、装载机、推土机全系配件
立即查询
Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴 Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴

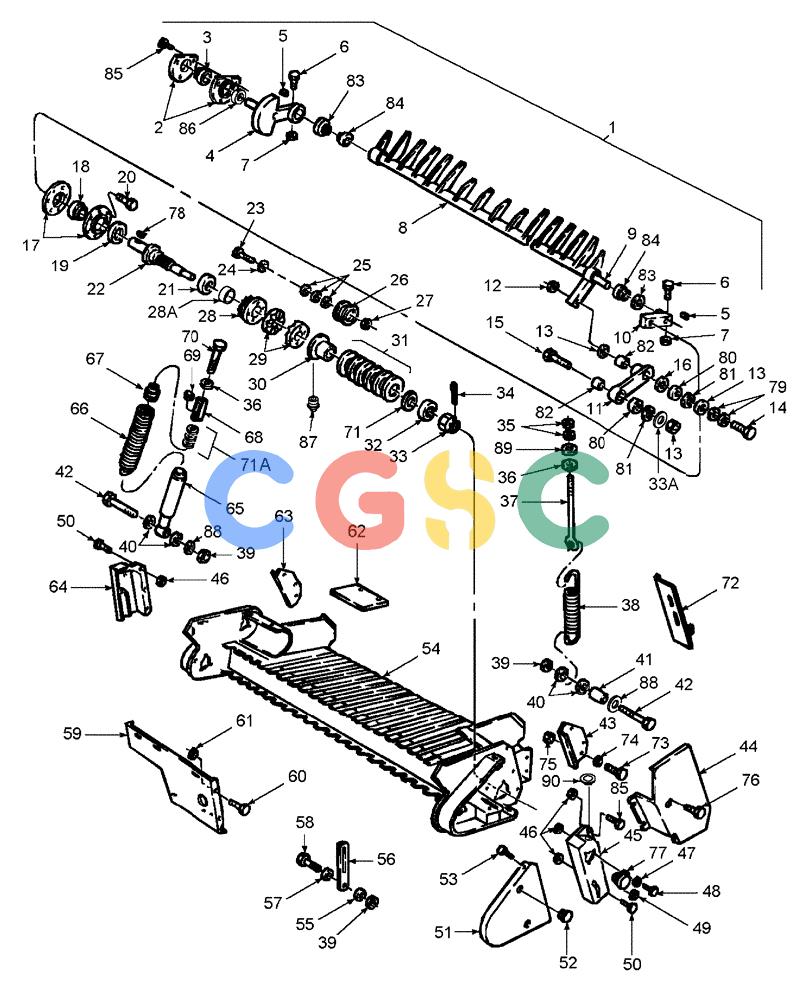

Pos. Part No Qty Parts name Comments
1. 0C [1]   ORDER COMPONENTS   NH Pickup, Wide Dual Cam
2. 86636169 [2]   FLANGED BEARING   NH Bearing
3. 617667R92 [1]   BALL BEARING,31.75mm ID x 62mm OD x 18mm W   CAS Superseded by part number: 84484181
4. 86634610 [1]   COUNTERWEIGHT   NH
5. 126-24 [2]   WOODRUFF KEY,#15, 1/4" x 1"   CAS Superseded by part number: 47471
6. 814-12080 [3]   BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8   CAS Superseded by part number: 43158
7. 832-46412 [6]   NUT,M12 x 1.75, Cl 8   CAS Superseded by part number: 100038
8. 86634561 [1]   FEEDER   NH
9. 86509398 [1]   SHAFT   NH
10. 86634609 [1]   ARM   NH
11. 86634527 [1]   ARM   NH Superseded by part number: 87043492
12. 232-41412 [1]   LOCK NUT,3/4"-10, GC   CAS Superseded by part number: 280375
13. 518587 [1]   SPACER,12.75mm ID x 25.53mm OD x 22.23mm L   NH
14. 413-1248 [1]   BOLT,Hex, 3/4" - 10 x 3", Gr 5   CAS Superseded by part number: 87337
15. 413-1240 [1]   BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5   CAS Superseded by part number: 9706701
16. 600083 [1]   WASHER,19.3mm ID x 28.7mm OD x 1.36mm Thk   NH
17. 86635012 [2]   FLANGE   NH Bearing
18. 571588R92 [1]   BALL BEARING,1.3755" ID x 72 mm OD x 1"   IH Superseded by part number: 47066
19. 517645R11 [1]   COLLAR   IH Locking, Includes: Set Screw Superseded by part number: 47577188
20. 614-10020 [6]   BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd   CAS Superseded by part number: 43138
21. 66849 [1]   WASHER,51.59mm ID x 76.2mm OD x 3.17mm Thk   NH Nylon, 2"
22. 86515253 [1]   SHAFT   NH
23. 811-12060 [3]   CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 60mm, Cl 8.8   NH Superseded by part number: 412097
24. 140046 [3]   BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk   NH
25. 495-11053 [1]   WASHER,1/2", SAE   CAS Superseded by part number: 87364, 72187259
26. 86550790 [1]   IDLER WHEEL,90mm OD   NH Chain
27. 829-1412 [3]   NUT,M12, Cl 10.9   CAS Superseded by part number: 337475
28. 86637255 [1]   SPROCKET ASSY.   NH Includes: Ref. 28A Superseded by part number: 87047934
28A. 46962 [1]   BUSHING,2" ID x 2.13" OD x 1.25" L   NH
29. 714379 [2]   CLUTCH   NH Jaw Superseded by part number: 87639816
30. 86637169 [1]   HUB   NH
31. 9822385 [5]   BELLEVILLE WASHER,52mm ID x 100mm OD x 3.3mm Thk   NH
32. 9845592 [1]   RING   NH Superseded by part number: 84266202
33. 280215 [1]   SLOTTED NUT,1 1/8"-12, G5   NH
33A. 26558 [1]   WASHER,28.5mm ID x 45.2mm OD x 1.7mm Thk   NH
34. 432-1228 [1]   COTTER PIN,3/16" x 1 3/4"   CAS Superseded by part number: 87399
35. 425-106 [2]   NUT,3/8"-16, Cl 5   CAS Superseded by part number: 9628503
36. 65319 [3]   WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk   NH
37. 45314 [1]   EYEBOLT   NH G2, 3/8"-16 x 17-1/4"
38. 86512547 [1]   SPRING,Extension, 1.94" OD x 13 - 1/8" L   NH Extension
39. 832-46410 [2]   NUT,M10 x 1.5, Cl 8   CAS Superseded by part number: 100037
40. 213404 [4]   SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL   NH 3/16" x 13/32" ID x 1-1/2" OD
41. 86500987 [1]   SPACER   NH
42. 814-10080 [2]   BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8   CAS Superseded by part number: 129796A1
43. 86628306 [1]   FILLER   NH LH
44. 86619214 [1]   SHIELD   NH
45. 86634556 [1]   SUPPORT ASSY.   NH LH
46. 825-51410 [22]   FLANGE NUT,M10, Flg Ser   CAS Superseded by part number: 43435
47. 825-1408 [6]   NUT,M8, Cl 8   CAS Superseded by part number: 43362
48. 811-8020 [6]   CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8   CAS Superseded by part number: 86507486
49. 825-5148 [19]   SERRATED NUT,M8, Flg Ser   CAS Superseded by part number: 86505868
50. 811-10020 [5]   CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8   CAS Superseded by part number: 86512422
51. 86619277 [2]   SHIELD   NH
52. 87028747 [2]   PLUG   PA Plastic, for 1" Dia. Hole
53. 381014 [8]   SCREW,Flng, M8 x 16mm   NH HWH, M8 x 1.25 x 16
54. 86636656 [1]   GUARD ASSY.   NH
56. 9804832 [1]   BAR   NH
57. 287129 [2]   SPECIAL WASHER   NH Spacer, 3/8" ID, .294" Thk, Hardened
58. 614-10030 [2]   BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd   IH Superseded by part number: 43140
59. 86620940 [1]   SHIELD   NH LH
62. 855657 [2]   PAD   NH
63. 86628307 [1]   FILLER   NH RH
64. 86634558 [1]   SUPPORT ASSY.   NH RH
65. 86570492 [1]   SHOCK ABSORBER   NH
66. 9614538 [1]   SPRING   NH Extension
67. 86636647 [1]   SPRING NUT   NH Spring
68. 86637305 [1]   LINK   NH Shock Absorber
69. 86509499 [1]   JAM NUT,3/8"-16, G2   ZED
70. 86570494 [1]   BOLT   NH Special
71. 166490 [1]   WASHER,51.6mm ID x 76.2mm OD x 3.68mm Thk   NH Hardened, 2"
72. 495-21044 [1]   WASHER,3/8"   CAS Superseded by part number: 87779090, 80702
74. 285072 [6]   WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk   NH (3/8")
77. 86639836 [2]   COVER   NH
78. 126-33 [1]   WOODRUFF KEY,#D, 5/16" x 1 1/4"   CAS Superseded by part number: 87831
80. T39594 [2]   BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"   CAS Superseded by part number: 87029275
81. 100-21175 [2]   SNAP RING,1.75", Int, #175   CAS Superseded by part number: 66967
82. 87644323 [4]   SPACER,19.18mm ID x 28.54mm OD x 7.75mm Thk   NH
83. 86636651 [2]   COVER   NH
. . 178514 [2]   WASHER   NH Plastic, 1"
84. 204807C91 [3]   BEARING ASSY,25.4mm ID x 52mm OD x 15mm W   CAS
85. 905-10020 [18]   BOLT,Hex Flg, M10 x 20mm   CAS Superseded by part number: 274249
86. 557995R11 [1]   COLLAR   IH Locking, Includes: Set Screw Superseded by part number: 47508396
87. 219-87 [1]   LUBE NIPPLE,1/4" - 28 NPTF   CAS Superseded by part number: 87414
89. 9827956 [1]   WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk   NH Heat Treated, 3/8"
90. 604727 [2]   PLUG   NH Button
