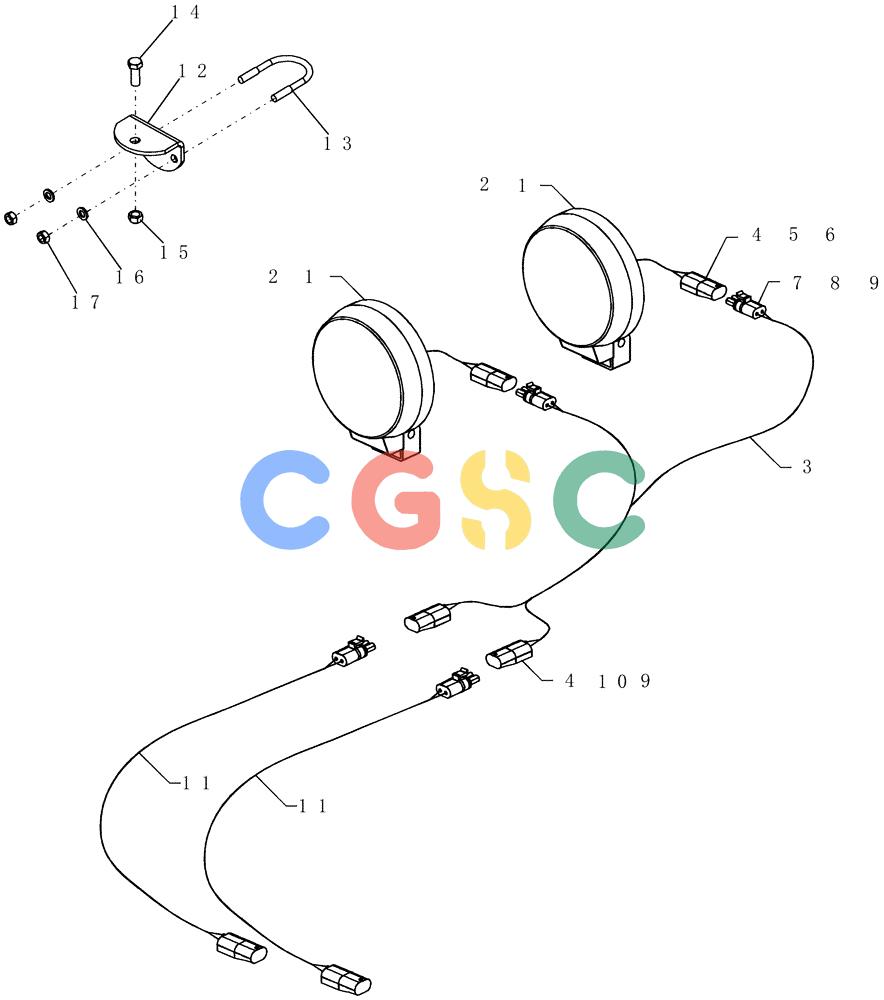

| 1. |
425060A1
|
[2] |
LIGHT
|
FLX
work 100w pilot
|
| 2. |
87506447
|
[2] |
BULB
|
SAS
light, 100 watt
|
| 3. |
425257A1
|
[1] |
HARNESS
|
FLX
work lights
|
| 4. |
87692877
|
[4] |
MULTIPOLE CONNECTOR,Male, 2 Cavities
|
BN
plastic 2c receptacle
|
| 5. |
225120C1
|
[4] |
TERMINAL CONNECTOR,Tin, 0.8mm
|
IH
18-20awg
|
| 6. |
225124C1
|
[4] |
SEAL,2 - 2.9 mm2
|
IH
seal grn 2.8-2 omm Superseded by part number: 84286327
|
| 7. |
87692855
|
[2] |
CONTACT HOUSING,Male, 2 Cavities
|
BN
plastic 2c plug
|
| 8. |
225122C1
|
[4] |
TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm
|
IH
socket 14-16awg
|
| 9. |
225125C1
|
[8] |
SEAL
|
IH
Connector Grey 3.49 - 2.81 mm Superseded by part number: 87680710
|
| 10. |
225119C1
|
[4] |
TERMINAL
|
IH
14-16awg Superseded by part number: 87692882
|
| 11. |
425064A1
|
[2] |
CABLE
|
FLX
jumper 1 m x 2c Packard Superseded by part number: 84335759
|
| 12. |
GL-338
|
[2] |
BRACKET
|
FLX
field light
|
| 13. |
6652
|
[2] |
U-BOLT
|
FLX
ur 5/16"-18 x 1 3/4" w 2 3/4" d 1" thread
|
| 14. |
NSS
|
[2] |
NOT SOLD SEPARAT
|
CON
BOLT 7/16" x 1"
|
| 16. |
80681
|
[4] |
LOCK NUT,5/16"
|
NH
Superseded by part number: 83990583
|
| 17. |
9635082
|
[4] |
NUT,5/16" - 18, Gr 5
|
NH
|
