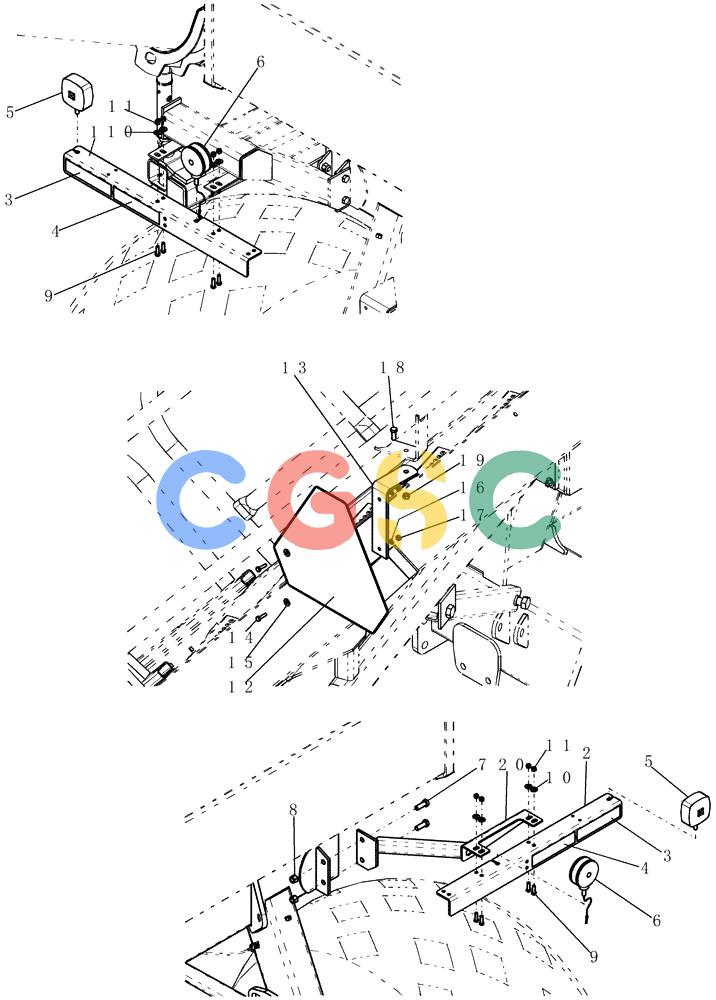

| 1. |
87446015
|
[1] |
BAR
|
SAS
transport light LH
|
| 2. |
87446014
|
[1] |
BAR
|
SAS
transport light RH
|
| 3. |
22902
|
[2] |
DECAL
|
FLX
retroreflective red 2" x 9"
|
| 4. |
51200094
|
[2] |
DECAL
|
FLX
fluorescent red orange
|
| 5. |
87564157
|
[2] |
WARNING LIGHT
|
SAS
assembly amber
|
| 6. |
51200040
|
[2] |
LIGHT
|
FLX
assy. stop tail/signal red
|
| 7. |
9627896
|
[2] |
BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5
|
NH
|
| 8. |
85700693
|
[2] |
NUT,5/8" - 11, Gr C
|
NH
|
| 9. |
88011
|
[8] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
|
NH
|
| 10. |
80702
|
[8] |
WASHER,0.44" ID x 1" OD x 0.08" Thk
|
NH
|
| 11. |
9637692
|
[8] |
NUT,3/8"-16, GB
|
NH
|
| 12. |
412742A1
|
[1] |
WARNING SIGN
|
FLX
smv steel back 4 holes
|
| 13. |
GI-858
|
[1] |
BRACKET
|
FLX
smv sign
|
| 14. |
86505867
|
[2] |
BOLT,Hex, 1/4" - 20 x 1", Gr 5
|
DUB
|
| 15. |
80701
|
[2] |
WASHER,0.31" ID x 0.73" OD x 0.07" Thk
|
NH
|
| 16. |
80682
|
[2] |
LOCK WASHER,1/4"
|
PA
|
| 17. |
7770
|
[2] |
NUT,Hex, 1/4 - 20, Cl 5
|
NH
|
| 18. |
88206
|
[1] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
NH
|
| 19. |
2335
|
[1] |
NUT,3/8"-16, G5
|
FLX
Superseded by part number: 280136
|
| 20. |
84270467
|
[1] |
ARM
|
SAS
Transport Light Bracket
|
