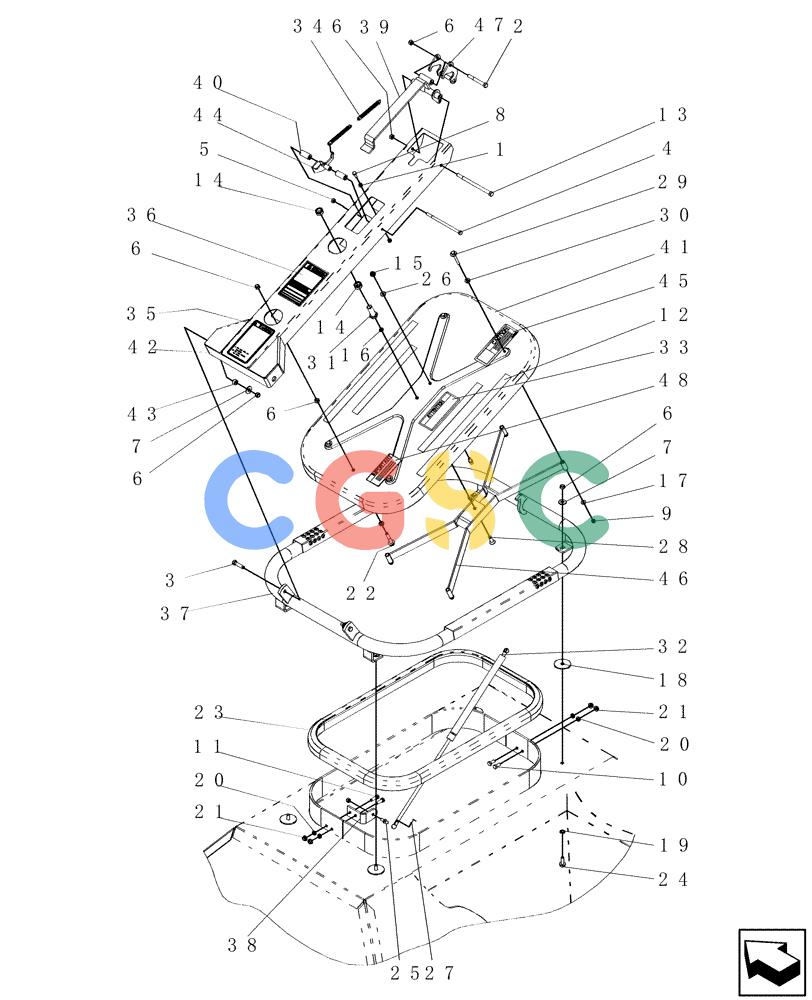

| 1. |
7770
|
[2] |
NUT,Hex, 1/4 - 20, Cl 5
|
NH
|
| 2. |
280161
|
[1] |
BOLT,Hex, 3/8" - 16 x 3", Gr 5
|
NH
|
| 3. |
88044
|
[2] |
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
|
NH
|
| 4. |
280929
|
[1] |
BOLT,Hex, 5/16" - 18 x 6", Gr 5
|
GI
|
| 5. |
281010
|
[2] |
LOCK NUT,7/8"-14, GC
|
BAS
|
| 6. |
88902
|
[10] |
NUT,3/8"-16
|
NH
|
| 7. |
80702
|
[6] |
WASHER,0.44" ID x 1" OD x 0.08" Thk
|
NH
|
| 8. |
9707580
|
[1] |
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
|
NH
|
| 9. |
280129
|
[4] |
NUT,1/4"-20
|
NH
|
| 10. |
87872
|
[2] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
NH
|
| 11. |
9635884
|
[2] |
BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5
|
NH
|
| 12. |
GD-299
|
[1] |
TAPE
|
FLX
friction Superseded by part number: 425040A1
|
| 12. |
425478A1
|
[1] |
ADHESIVE STRIP
|
FLX
anti-slip 60' roll - 1" wide
|
| 13. |
280258
|
[1] |
BOLT,Hex, 3/8" - 16 x 6", Gr 5
|
WIN
|
| 14. |
86632556
|
[2] |
JAM NUT,Jam, 5/8"-11, G5
|
SAS
|
| 15. |
86521605
|
[1] |
FLANGE NUT,5/16"-18, Cl 5
|
NH
|
| 16. |
49861
|
[1] |
O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro
|
BEL
|
| 17. |
87361
|
[4] |
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
|
NH
|
| 18. |
8156
|
[4] |
RUBBER WASHER
|
FLX
7/16" id x 2 1/8" od
|
| 19. |
412911A1
|
[5] |
WASHER
|
FLX
poly 3/8" id
|
| 20. |
9037
|
[4] |
WASHER
|
FLX
poly 5/16" id
|
| 21. |
9586
|
[4] |
FLANGE NUT
|
FLX
flange 5/16" serrated
|
| 22. |
5110
|
[1] |
BOLT
|
FLX
3/8"-16 x 2, G2.5, Full Thread Superseded by part number: 87327174
|
| 23. |
21679
|
[1] |
RUBBER SEAL
|
FLX
hatch lid
|
| 24. |
21881
|
[4] |
SPECIAL BOLT
|
FLX
3/8" x 1" GR2 undercut head
|
| 25. |
22186
|
[2] |
STUD
|
FLX
10 mm ball Superseded by part number: 9803209
|
| 26. |
22404
|
[1] |
WASHER
|
FLX
sealing 5/16" ss neop
|
| 27. |
9803210
|
[2] |
SPRING
|
BEL
retainer 23/64" id x 31/64" long
|
| 28. |
22820
|
[1] |
SCREW
|
FLX
cap 3/8" x 1 1/4" fh hx-skt
|
| 29. |
412923A1
|
[4] |
BOLT
|
FLX
1/4"-20 x 2 1/4" G2
|
| 30. |
412924A1
|
[4] |
WASHER
|
FLX
poly 1/4" id
|
| 31. |
412925A1
|
[1] |
SPECIAL BOLT
|
FLX
standoff 5/8"-11 x 1 3/4" m/f
|
| 32. |
22854
|
[1] |
GAS STRUT
|
FLX
300 mm st/685 mm
|
| 33. |
419999A1
|
[1] |
DECAL
|
FLX
attention, do not open tank lid Superseded by part number: 87506429
|
| 34. |
87506209
|
[2] |
TENSION SPRING
|
SAS
1/16" wire x 1/2" od x 4" long
|
| 35. |
GD-500.71
|
[1] |
WARNING DECAL
|
FLX
Do Not Ride
|
| 36. |
GD-500.79
|
[1] |
WARNING DECAL
|
FLX
Stop Fan
|
| 37. |
GI-235
|
[1] |
FRAME
|
FLX
support, 3rd tank kid
|
| 38. |
GI-432
|
[1] |
BRACKET
|
FLX
gas shock
|
| 39. |
GI-615
|
[1] |
LATCH
|
FLX
handle
|
| 40. |
GI-617
|
[2] |
SPACER
|
FLX
lid arm
|
| 41. |
GI-618
|
[1] |
LID
|
FLX
tank
|
| 42. |
GI-756
|
[1] |
ARM
|
FLX
lid
|
| 43. |
GL-333
|
[2] |
BUSHING
|
FLX
hatch lid arm pivot
|
| 44. |
GL-335
|
[1] |
CONTROL LEVER
|
FLX
lock, hatch
|
| 45. |
GL-700.20
|
[1] |
CAUTION DECAL
|
FLX
lid raises
|
| 46. |
GM-286
|
[1] |
BRACKET
|
FLX
Lid
|
| 47. |
GM-433
|
[1] |
LATCH
|
FLX
jaw
|
| 48. |
VF-760.10
|
[1] |
DECAL
|
FLX
air leaks affect
|
