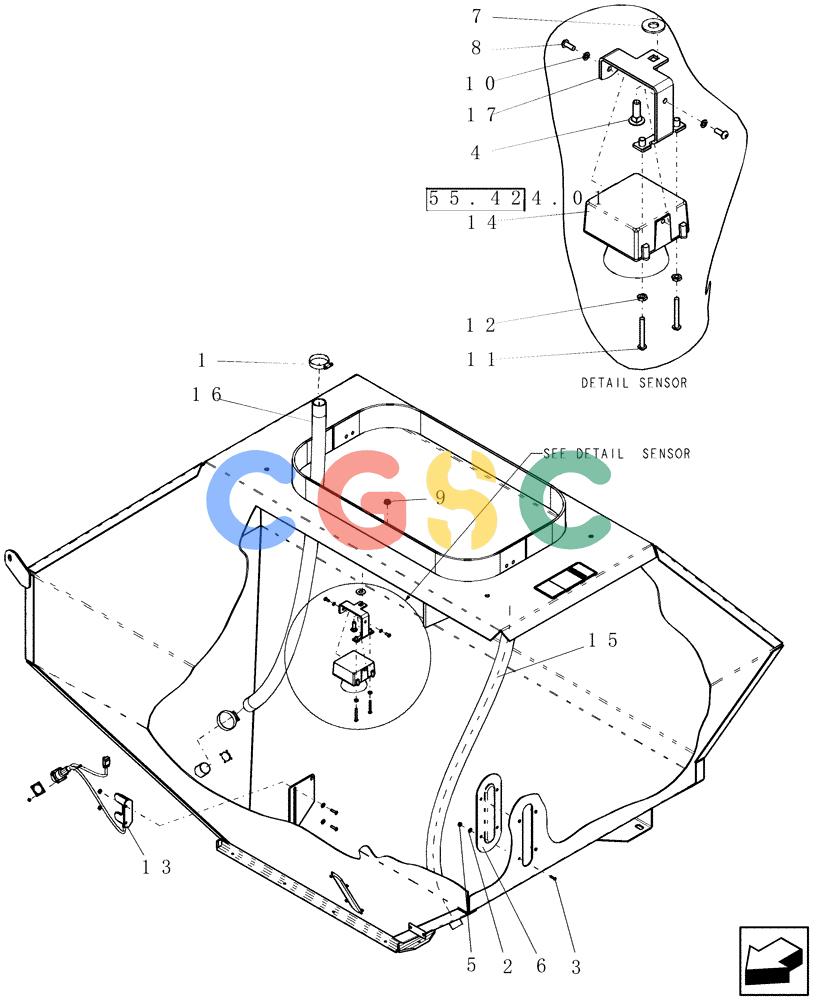

| 1. | 507586 | [4] |
HOSE CLAMP,20.6mm - 44.4mm, Worm Gear |
PA |
| 2. | 280299 | [8] |
WASHER,0.19" ID x 0.44" OD x 0.05" Thk |
NH |
| 3. | 412750A1 | [8] |
SCREW,Sl, #8 - 32 x 3/4" |
FLXmch #8-32 x 3/4" ph sq-slt |
| 4. | 88992 | [1] |
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5 |
GI |
| 5. | 231-14408 | [8] |
NUT,#8-32, GB |
CAS Superseded by part number: 87319809 |
| 7. | 8633 | [1] |
WASHER |
FLX7/16" id x 1" od x 5/64" thick, ss |
| 8. | 9528 | [2] |
HEX SOC SCREW,Sl Rnd Hd, #10 - 32 x 0.50", SST |
FLXmachine #10-32 x 1/2" rh skt-slt ss |
| 9. | 9586 | [1] |
FLANGE NUT |
FLXflange 5/16" serrated |
| 10. | 9587 | [22] |
LOCK WASHER |
FLX#10 ss |
| 11. | 9588 | [2] |
SCREW,Sl Sq, #10 - 32 x 1.50" |
FLXmch #10-32 x 1 1/2" rh sq-slt ss |
| 12. | 9589 | [1] |
NUT |
FLX#10-32 ss |
| 13. | 87508154 | [1] |
SENSOR |
SASOptical Bin Level |
| 14. | 14868V2 | [1] |
SENSOR |
FLXsonar bin level 0.3m cable |
| 15. | GI-667 | [1] |
AIR HOSE,1.25" ID x 42.00" |
FLXTank Pressurization 3rd Tank |
| 15. | GI-668 | [1] |
AIR HOSE,1.25" ID x 52.00" |
FLXPressure 3rd Tank |
| 15. | 412786A1 | [1] |
HOSE |
FLX1 1/4" pvc clear spiral 1/8" wall must be ordered in multiples of 100 |
| 17. | GL-349 | [1] |
BRACKET |
FLXmount, bin level sensor - ultrasonic |
