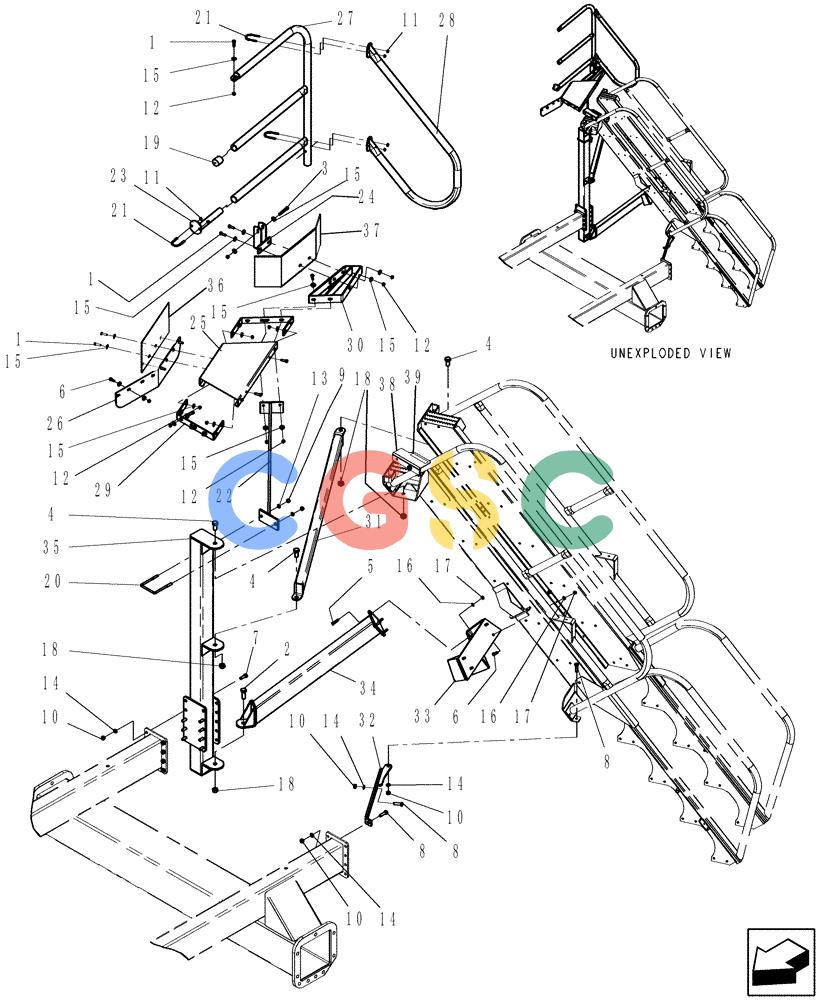

| 1. |
88011
|
[14] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
|
NH
|
| 2. |
88557
|
[1] |
BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd
|
BEL
|
| 3. |
280161
|
[1] |
BOLT,Hex, 3/8" - 16 x 3", Gr 5
|
NH
|
| 4. |
88692
|
[3] |
BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd
|
GI
|
| 5. |
88044
|
[6] |
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
|
NH
|
| 6. |
88206
|
[6] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
NH
|
| 7. |
87689
|
[8] |
BOLT,1/2"-13 x 1.813" OAL, Gr 5
|
NH
|
| 8. |
9707516
|
[3] |
BOLT,1/2"-13 x 1-3/4", Cl 5
|
WIN
|
| 9. |
280717
|
[2] |
NUT,7/16"-14, G5
|
NH
|
| 10. |
280431
|
[11] |
NUT,1/2"-13, G5
|
NH
|
| 11. |
280736
|
[6] |
NUT,5/16"-18, GC
|
NH
|
| 12. |
88902
|
[19] |
NUT,3/8"-16
|
NH
|
| 13. |
81547
|
[2] |
LOCK WASHER,7/16"
|
NH
|
| 14. |
80679
|
[11] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 15. |
80702
|
[32] |
WASHER,0.44" ID x 1" OD x 0.08" Thk
|
NH
|
| 16. |
80680
|
[8] |
LOCK WASHER,3/8 0.381 CST ZND
|
NH
|
| 17. |
9628503
|
[8] |
NUT,3/8"-16, G5
|
NH
|
| 18. |
280375
|
[4] |
NUT,3/4"-10, GC
|
WIN
|
| 19. |
3419
|
[1] |
CAP
|
FLX
vinyl 1 5/8" x 1 1/2"
|
| 20. |
5089
|
[1] |
U-BOLT
|
FLX
us 7/16"-14 4 1/8" w 5 3/8" d GR2
|
| 21. |
6652
|
[3] |
U-BOLT
|
FLX
ur 5/16"-18 x 1 3/4" w 2 3/4" d 1" thread
|
| 22. |
GI-239
|
[1] |
SUPPORT
|
FLX
rear access
|
| 22. |
84359200
|
[1] |
SUPPORT
|
SAS
Support, Rear Access, Start Year: 01-JUL-11
|
| 23. |
GI-706
|
[1] |
SUPPORT
|
FLX
landing rail
|
| 24. |
GI-801
|
[1] |
BRACKET
|
FLX
mount, railing
|
| 24. |
84344056
|
[1] |
GRAB RAIL
|
SAS
2011 Mount, Railing With Toekick
|
| 25. |
GI-819
|
[1] |
GRATING
|
FLX
staircase
|
| 25. |
84359466
|
[1] |
GRATING
|
SAS
2011 Grating With Toekick
|
| 26. |
GI-820
|
[1] |
GUSSET
|
FLX
bolt-on corner
|
| 26. |
84359206
|
[1] |
GUSSET
|
SAS
2011 Gusset Corner Bolt On With Toekick
|
| 27. |
GI-829
|
[1] |
RAIL ASSY.
|
FLX
access
|
| 27. |
84359567
|
[1] |
GRAB RAIL
|
SAS
2011 Rail Access Platform With Toekick
|
| 28. |
GI-830
|
[1] |
HANDRAIL
|
FLX
access
|
| 29. |
GI-831
|
[2] |
CAP
|
FLX
end, staircase grating
|
| 29. |
84359427
|
[2] |
BRACKET
|
SAS
2011 Bracket Staircase End Grating With Toekick
|
| 30. |
GI-832
|
[1] |
SUPPORT
|
FLX
end stairway
|
| 30. |
84359481
|
[1] |
SUPPORT
|
SAS
2011 Support End Grating With Toekick
|
| 31. |
GI-857
|
[1] |
SUPPORT
|
FLX
rear access
|
| 32. |
GI-859
|
[1] |
BRACKET
|
FLX
stairway pivot stop
|
| 33. |
GI-860
|
[1] |
BRACKET
|
FLX
transition arm to rear access
|
| 34. |
GI-862
|
[1] |
SUPPORTING ARM
|
FLX
lower
|
| 35. |
GI-863
|
[1] |
BEAM
|
FLX
main support, rear access
|
| 36. |
84360270
|
[1] |
BRACKET
|
SAS
2011 toekick
|
| 37. |
84360267
|
[1] |
BRACKET
|
SAS
2011 Toekick
|
| 38. |
84359198
|
[1] |
BRACKET
|
SAS
Bracket, Step, Start Year: 01-JUL-11
|
| 39. |
2145
|
[1] |
ADHESIVE STRIP
|
SAS
Adhesive Strip Anti-Slip, Start Year: 01-JUL-11 Superseded by part number: 425040A1
|
