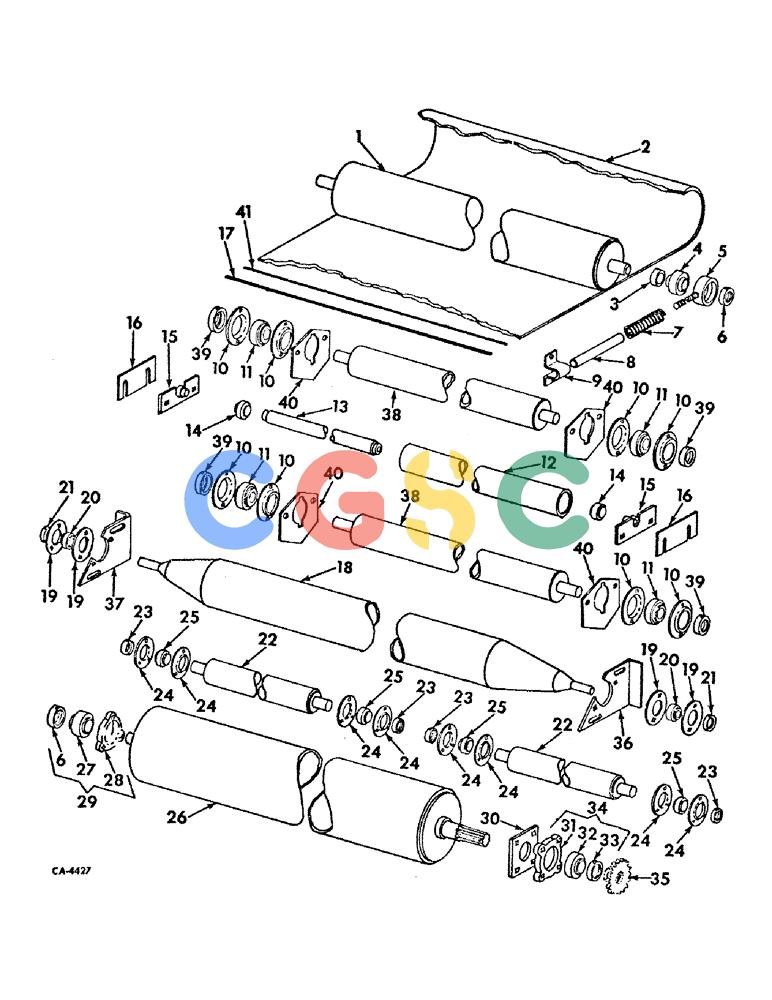

| 1. |
208476C1
|
[1] |
ROLL
|
IH
ASSY, lower conveyor idler, roll POS. No. 15
|
| 2. |
210480C92
|
[1] |
CONVEYOR BELT,1524.00 mm W x 3095.00 mm L
|
IH
BELT CONVEYOR , Lower 1524.00 mm W x 3095.00 mm L
|
| . . |
218322
|
[2] |
WASHER,0.12" ID x 0.31" OD x 0.03" Thk
|
IH
.125 x .312 x .025 Superseded by part number: 495-31012
|
| 3. |
210302C1
|
[2] |
SPACER
|
IH
rear roller
|
| 4. |
389440R91
|
[2] |
BEARING ASSY,31.75mm ID x 72mm OD x 17mm W
|
IH
ASSY
|
| 5. |
208490C2
|
[2] |
CASE
|
IH
HOUSING ASSY, rear conveyor brg
|
| 6. |
455104R11
|
[3] |
COLLAR
|
IH
W/SET SCREW Superseded by part number: 47508357
|
| 7. |
15282BA
|
[2] |
SPRING
|
IH
rear conveyor
|
| . . |
124847
|
[4] |
COLLAR
|
IH
5/8 jam type 5 Superseded by part number: 425-1410
|
| 8. |
219162C1
|
[2] |
TUBE
|
IH
ASSY, bearing housing screw
|
| . . |
614451R1
|
[2] |
WASHER
|
IH
1.031 x 1.750 x .105 Superseded by part number: 86624172
|
| 9. |
208372C1
|
[2] |
BRACKET
|
IH
spring anchor
|
| . . |
18494R1
|
[4] |
BOLT,Hex, 3/8" - 16 x 1", Gr 2
|
IH
3/8 x 1 type 1 Superseded by part number: 424-616
|
| 10. |
612031R1
|
[8] |
FLANGED BEARING
|
IH
roller brg Superseded by part number: 50591
|
| . . |
12872R1
|
[8] |
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
|
IH
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd Superseded by part number: 598803R1
|
| . . |
937017R1
|
[8] |
|
P
NUT, 5/16 flange lock
|
| 11. |
204807C91
|
[4] |
BEARING ASSY,25.4mm ID x 52mm OD x 15mm W
|
CAS
idler roll
|
| 12. |
208481C1
|
[1] |
PIPE
|
IH
roll POS. No. 13
|
| 13. |
208483C1
|
[1] |
SHAFT
|
IH
idler roller
|
| . . |
18780R1
|
[2] |
BOLT,Hex, 3/8"-16 x 1 3/4", G2
|
IH
3/8 x 1-3/4 type 1 Superseded by part number: 424-628
|
| 14. |
208482C91
|
[2] |
BEARING ASSY
|
IH
roller idler Superseded by part number: 87446552
|
| 15. |
218447C1
|
[2] |
SUPPORT
|
IH
ASSY, roller
|
| 16. |
210364C1
|
[2] |
|
P
SHIM, spacer, (or as required)
|
| 17. |
210481C2
|
[1] |
PIN
|
IH
belt connector Superseded by part number: 214299C1
|
| 17. |
210321C1
|
[1] |
TOOL
|
IH
LACER, belt, not illustrated
|
| 17. |
208790C1
|
[1] |
PACKAGE
|
IH
KIT, No. 4 clipper belt hook, see operator's manual
|
| 18. |
213864C1
|
[1] |
ROLLER
|
IH
tapered, roll POS. No. 17
|
| . . |
16897R1
|
[2] |
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 5/16 x 3/4 crg type 1 Superseded by part number: 412-512
|
| . . |
19006R1
|
[2] |
PLOW BOLT,#3, 5/16" - 18 x 3/4", Gr 2
|
IH
BOLT, 5/16 x 3/4 plow type 1 Superseded by part number: 418-2512
|
| . . |
18474R1
|
[2] |
BOLT,Hex, 5/16" - 18 x 1", Gr 2
|
IH
5/16 x 1 type 1 Superseded by part number: 424-516
|
| . . |
938017R1
|
[8] |
FLANGE NUT,Flg, USR, 5/16"-18
|
IH
5/16 flange lock Superseded by part number: 145458
|
| . . |
120393
|
[4] |
BEARING WASHER,5/16", SAE
|
IH
WASHER, .344 x .688 x .051 Superseded by part number: 28588R1
|
| 21. |
455102R21
|
[2] |
COLLAR
|
IH
W/SET SCREW, brg locking Superseded by part number: 47577183
|
| 22. |
218401C1
|
[2] |
ROLLER
|
IH
ASSY, front skewed, roll POS. No. 16
|
| 24. |
462360R1
|
[8] |
FLANGED BEARING
|
IH
brg mounting Superseded by part number: 86603075
|
| 26. |
208465C2
|
[1] |
ROLL
|
IH
ASSY, lower conveyor, roll POS. No. 11
|
| 27. |
173735C91
|
[1] |
BEARING ASSY
|
IH
lower conveyor end RH Superseded by part number: F86214
|
| 29. |
208475C91
|
[1] |
BEARING ASSY
|
IH
BEARING W/HOUSING, lower conveyor end RH
|
| . . |
550796R1
|
[3] |
CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5
|
IH
BOLT, 3/8 x 1-1/4 crg type 5 Superseded by part number: 86508749
|
| . . |
9411655
|
[3] |
LOCK NUT,3/8"-16, GB
|
IH
NUT, 3/8 cad p/t lock type 5 Superseded by part number: 88902
|
| 30. |
208474C1
|
[1] |
PLATE
|
IH
lower conveyor spacer LH
|
| . . |
466971R1
|
[4] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5
|
IH
BOLT, 1/2 x crg type 5 Superseded by part number: 280185
|
| . . |
487374R1
|
[4] |
BEARING LOCK NUT,Flg, USR, 1/2"-13
|
IH
1/2 flange lock Superseded by part number: 86512371
|
| 32. |
172408C91
|
[1] |
BALL BEARING,49.21mm ID x 90mm OD x 23mm W
|
IH
BEARING ASSY, lower conveyor end LH Superseded by part number: 685727
|
| 33. |
618032R11
|
[1] |
COLLAR
|
IH
W/SET SCREW, brg locking
|
| 34. |
208473C91
|
[1] |
BEARING ASSY
|
IH
BEARING W/HOUSING, lower conveyor LH
|
| 36. |
214274C1
|
[1] |
SUPPORT
|
IH
brg mounting LH
|
| 37. |
214275C1
|
[1] |
SUPPORT
|
IH
brg mounting RH
|
| 38. |
208500C2
|
[2] |
ROLL
|
IH
TUBE ASSY, idler roll, roll POS. No. 12 and No. 14 Superseded by part number: 211285C1
|
| 40. |
214367C1
|
[4] |
BAR
|
IH
No. 12 & 14 roll mounting
|
| . . |
17351R1
|
[8] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 crg type 1 Superseded by part number: 88682
|
| . . |
482256R1
|
[8] |
BEARING LOCK NUT,Flg, USR, 3/8"-16
|
IH
3/8 flange lock Superseded by part number: 247780
|
| 41. |
214299C1
|
[1] |
ELECTRICAL WIRE
|
IH
PIN, lower belt
|
