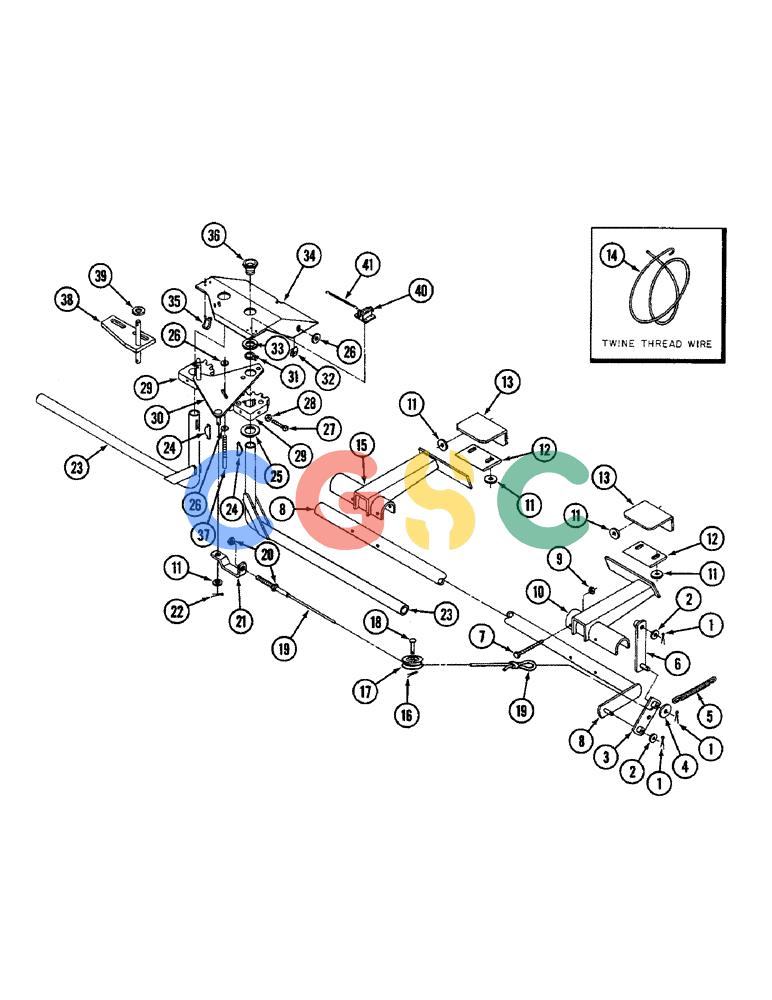

| 1. | 432-1216 | [3] |
COTTER PIN,3/16" x 1" |
CASPin, Split (Cotter), 3/16" x 1" |
| 2. | 21883R1 | [2] |
WASHER |
IH- flat, 17/32 x 1-3/4 x 3/32 inch (13 x 44 x 2 MM) Superseded by part number: 632076R1 |
| 3. | ZA105518 | [1] |
STRAP |
IH- bottom |
| 4. | 22042R1 | [1] |
WASHER |
IH- flat, 17/32 x 2 x 7/64 inch (13 x 51 x 3 MM) Superseded by part number: 495-91167 |
| 5. | 1281008C1 | [1] |
SPRING |
IH- extension |
| 6. | ZA105516 | [1] |
STRAP |
IH- top |
| 7. | 24621R1 | [4] |
BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8 |
IH Superseded by part number: 326-636 |
| 8. | ZA105944 | [1] |
PIPE |
CAS- mounting, cutoff |
| 9. | 9413979 | [4] |
LOCK NUT,3/8"-16, GC |
IHNUT - hex lock, 3/8 NC, grade 8 Superseded by part number: 232-4136 |
| 10. | ZA104837 | [1] |
STOP |
IHCUTOFF - twine, left |
| 11. | 118775 | [5] |
WASHER,3/8" x 13/16" x .065" |
IH- flat, 13/32 x 13/16 x 3/64 inch (10 x 21 x 2 MM) Superseded by part number: 87613282 |
| 12. | ZA104892 | [2] |
KNIFE |
IH- twine |
| 13. | ZA104862 | [2] |
HOLDER |
IH- twine |
| 14. | ZA104769 | [1] |
ELECTRICAL WIRE |
IHWIRE - twine thread, 41 inch (1 041 MM) |
| 15. | ZA104836 | [1] |
STOP |
IHCUTOFF - twine, right |
| 16. | 103386 | [1] |
COTTER PIN,1/8" x 1 1/4" |
IHPin, Split (Cotter), 1/8" x 1 1/4" Superseded by part number: 87395 |
| 17. | ZA206636 | [1] |
PULLEY |
IH- twine threader |
| 18. | 22635R1 | [1] |
HEADED PIN,1/2" x 1 1/4" |
IHPIN, HEADED, 1/2 x 1 1/4 inch Superseded by part number: 439-1820 |
| 19. | ZA105990 | [1] |
CABLE |
CASASSEMBLY - twine tie |
| 20. | 120377 | [2] |
NUT,3/8" - 16, Gr 5 |
IH- hex, 5/16 inch NC Superseded by part number: 280136 |
| 21. | ZA104703 | [1] |
ANCHOR |
IH- cable |
| 22. | 103385 | [1] |
COTTER PIN,1/8" x 1" |
IHPIN, SPLIT (COTTER), 1/8" x 1" Superseded by part number: 80755 |
| 23. | ZA105948 | [2] |
TUBE |
CAS- twine |
| 24. | 96317C1 | [2] |
KEY |
IH- 1/4 x 1-1/8 inch |
| 25. | 20885R1 | [2] |
WASHER |
IH- flat, 1-5/32 x 2 x 1/16 inch (29 x 51 x 2 MM) Superseded by part number: 86624175 |
| 26. | 611344R1 | [4] |
WASHER |
IH- flat, 11/32 x 7/8 x 1/16 inch (9 x 22 x 2 MM) Superseded by part number: 495-61034 |
| 27. | 21407R1 | [4] |
SCREW |
CAS- set, square head cup point, 3/8 NC x 1-1/4 inch Superseded by part number: 87532 |
| 28. | 124829 | [4] |
JAM NUT,Hex, 3/8" - 16, Gr 5 |
IH Superseded by part number: 329-146 |
| 29. | ZA104729 | [2] |
GEAR |
IH- 6 tooth |
| 30. | ZA105847 | [1] |
PLATE |
CAS- pivot |
| 31. | 274085R91 | [2] |
HOSE CLAMP,#10, 0.56/1.06 Type F Worm |
IHCLAMP - hose, no 10, type F Superseded by part number: 87625624 |
| 32. | 488837C1 | [2] |
SPRING NUT |
IH- speed |
| 33. | 591715R1 | [4] |
WASHER |
IH- flat, 1-1/32 x 1-1/2 x 1/16 inch (26 x 38 x 2 MM) Superseded by part number: 86624169 |
| 34. | ZA105848 | [1] |
SHIELD |
CAS- gear |
| 35. | 533959R1 | [1] |
CABLE TIE,.135" x 11" |
IHSTRAP - tie Superseded by part number: 529070 |
| 36. | ZA104633 | [2] |
GUIDE |
IH- twine |
| 37. | 489377R1 | [1] |
STUD - 5/16 NC x 4 inch | |
| 38. | ZA105769 | [1] |
BRACKET |
CAS- actuator |
| 39. | 20601R1 | [1] |
WASHER |
IH- flat, 17/32 x 1-1/4 x 7/64 inch (13 x 32 x 3 MM) Superseded by part number: 495-81287 |
| 40. | REF | [1] |
INSTRUCTION |
NHCOUNTER - bale (See page 56) |
