| 34. | NSS | [1] |
NOT SOLD SEPARAT |

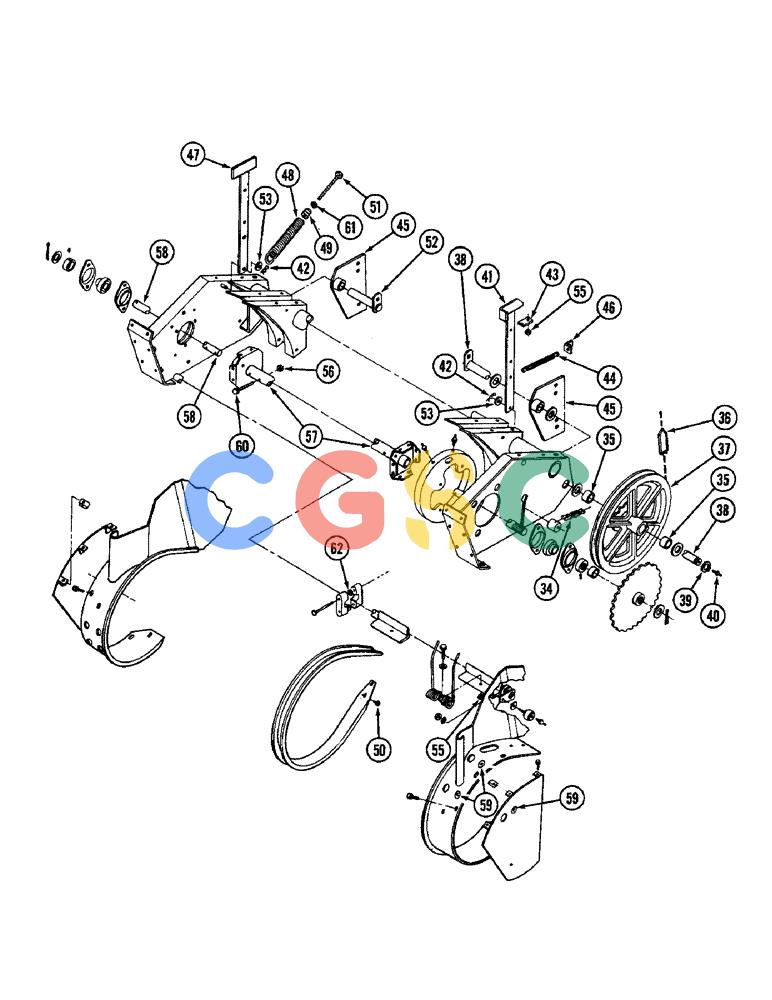

CONCHAIN ASSEMBLY - pickup drive (Use 33 links from bulk chain 569089R91, and 1 connecting link 587372R91) |
| . . | 569089R91 | [1] |
CHAIN (AG),10' L, 1.0" Pitch |
IHCHAIN - 10 foot (3 M) roll |
| . . | 456929R91 | [1] |
CHAIN LINK |
IHLINK - chain, offset Superseded by part number: 86595273 |
| . . | 587372R91 | [1] |
CONNECTING LINK |
IHLINK - chain, connecting Superseded by part number: 242-1310 |
| 35. | 1281010C1 | [2] |
BUSHING |
IH- 1-1/4 ID x 1 inch (32 x 25 MM) |
| 36. | ZA104774 | [1] |
BELT |
IH- Drive, Regular speed (See note) |
| 36. | 668902R1 | [1] |
BELT |
IH- Drive, high speed (See note) |
| 37. | ZA104375 | [1] |
PULLEY |
IHSHEAVE AND SPROCKET ASSEMBLY - pickup |
| 38. | ZA104443 | [1] |
SHAFT |
IH- pivot, left |
| 39. | 152450R1 | [1] |
SNAP RING,#125, Ext |
IHRING - external retaining, 1-5/32 inch (29 MM) Superseded by part number: 40974 |
| 40. | 109461 | [1] |
LUBE NIPPLE,1/8"-27 x .66 lg |
IHNIPPLE, LUBE, , PT 1/8"-27 x .66 lg Superseded by part number: 80710 |
| 41. | ZA104464 | [1] |
STOP |
IH- left Superseded by part number: 198025A1, 198026A1 |
| 42. | 407211R1 | [2] |
CLIP |
IHPIN - hair (Package of 20) |
| 43. | ZA104413 | [1] |
LOCKING PLATE |
IH- lock |
| 44. | ZA290043 | [1] |
SPRING |
IH- extension |
| 45. | ZA104754 | [2] |
BRACKET |
IH- pivot shaft |
| 46. | ZA100457 | [1] |
ANGLE |
IHCLIP - angle |
| 47. | ZA104503 | [1] |
STOP |
IH- right Superseded by part number: 198026A1, 198025A1 |
| 48. | ZA762032 | [1] |
SPRING |
IH- extension |
| 49. | ZA761517 | [1] |
PLUG |
IHINSERT - spring |
| 50. | 155807C1 | [68] |
BOLT,Hex Serr, 5/16" - 18 x 1" |
IH Superseded by part number: 86512168 |
| 51. | 480556C1 | [1] |
BOLT,Spcl, 1/2" - 13 x 8" |
IH- hex, 1/2 NC x 8 inch |
| 52. | ZA104441 | [1] |
SHAFT |
IH- pivot, right |
| 53. | NLS | [2] |
NO LONGER SERVICED |
BAS- flat, 21/32 x 1-5/16 x 5/64 inch (17 x 33 x 2 MM) |
| 55. | 9413979 | [37] |
LOCK NUT,3/8"-16, GC |
IHNUT - hex lock, 3/8 inch NC, grade 8 Superseded by part number: 232-4136 |
| 56. | 9413956 | [4] |
LOCK NUT,1/2"-13, GB |
IHNUT - hex lock, 1/2 inch NC Superseded by part number: 231-4138 |
| 57. | ZA105903 | [1] |
REEL |
CAS- pickup |
| 58. | ZA104224 | [1] |
SHAFT |
IH- right, 8-1/2 inch (216 MM) |
| 59. | REF | [3] |
INSTRUCTION |
NHDECAL - grease, 50 hours (See page 62) |
| 60. | 180183 | [4] |
BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5 |
IH- hex, 1/2 NC x 2-1/4 inch Superseded by part number: 113-441 |
| 61. | 120378 | [1] |
NUT,Hex, 1/2" - 13, Gr 5 |
IHNUT, 1/2"-13, G5 Superseded by part number: 280431 |
| 62. | 120394 | [16] |
WASHER,3/8", SAE |
IHWASHER - flat, 13/32 x 13/16 x 3/64 inch (10 x 21 x 1 MM) Superseded by part number: 87016 |
