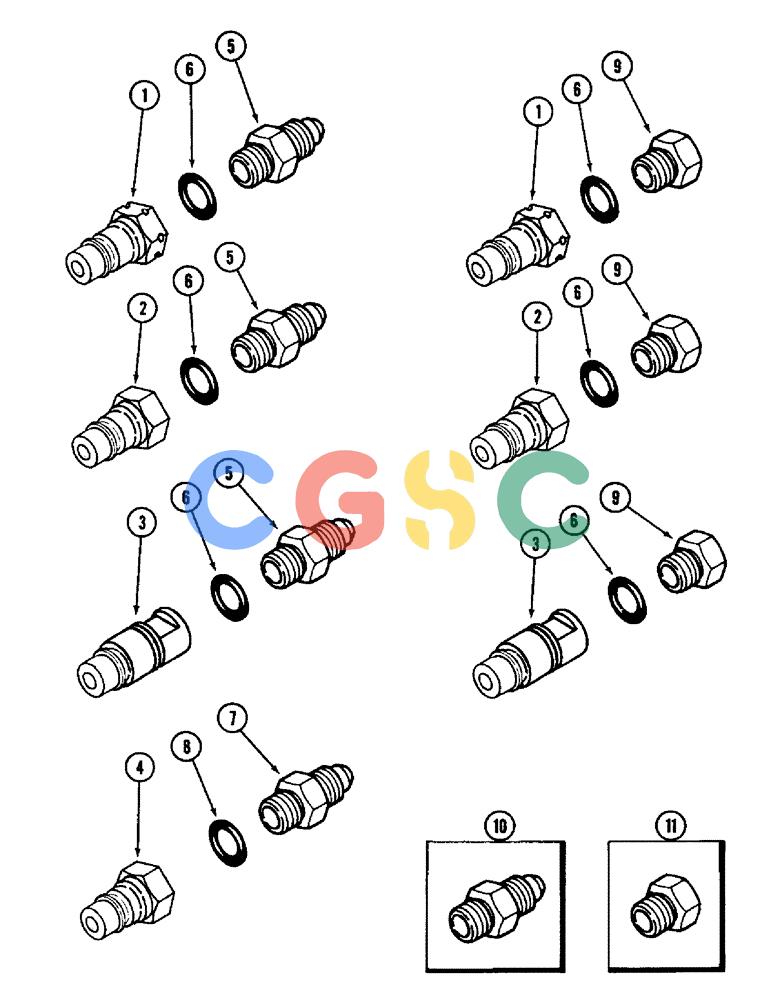

| 1. | 395149R1 | [1] |
QUICK MALE COUPLING |
IHCOUPLING ASSEMBLY - male, poppet type, 7/8-14 inch (Will work with ISO female coupling but at lower efficiency than 1272399C2 or 1285718C2) Superseded by part number: 86615558 |
| 2. | 1272399C2 | [1] |
QUICK MALE COUPLING |
IHCOUPLING ASSEMBLY - male, ISO standard, 7/8-14 inch Superseded by part number: 86615558 |
| 3. | 544787R91 | [1] |
COUPLING, BREAK AWAY |
IHCOUPLING ASSEMBLY - male, ball type, 7/8-14 inch (Will not work with ISO female coupling) Superseded by part number: 1341843C1 |
| 4. | 1285718C2 | [1] |
QUICK MALE COUPLING |
IHASSEMBLY - male, ISO standard, 3/4-16 inch |
| 5. | 935433R1 | [1] |
HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring |
IHCONNECTOR - 3/8 tube, 9/16-18 x 7/8-14 inch Superseded by part number: 525646 |
| 6. | 364885R1 | [1] |
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro |
IH- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 MM) Superseded by part number: 167269 |
| 7. | 587639R1 | [1] |
HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring |
IHCONNECTOR - 3/8 tube, 9/16-18 x 3/4-16 inch Superseded by part number: 128817 |
| 8. | 570828R1 | [1] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro |
IH- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 MM) Superseded by part number: 128825 |
| 9. | 407045R1 | [1] |
FITTING |
IHBUSHING - 7/8-14 male x 3/4-16 inch female (Use to connect 7/8-14 coupling to flow orifice with 3/4-16 inch thread) Superseded by part number: 84323487 |
| 10. | 607728R1 | [1] |
HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-14, NPTF |
IHCONNECTOR - 3/8 tube, 9/16-18 x 1/2 inch PT Superseded by part number: 19956 |
| 11. | ZA105663 | [1] |
CONNECTOR, ELEC |
IHADAPTER - 1/2 inch male PT x 3/4-16 female (Use to connect 1/2 inch PT coupling to flow orifice with 3/4-16 thread) |
