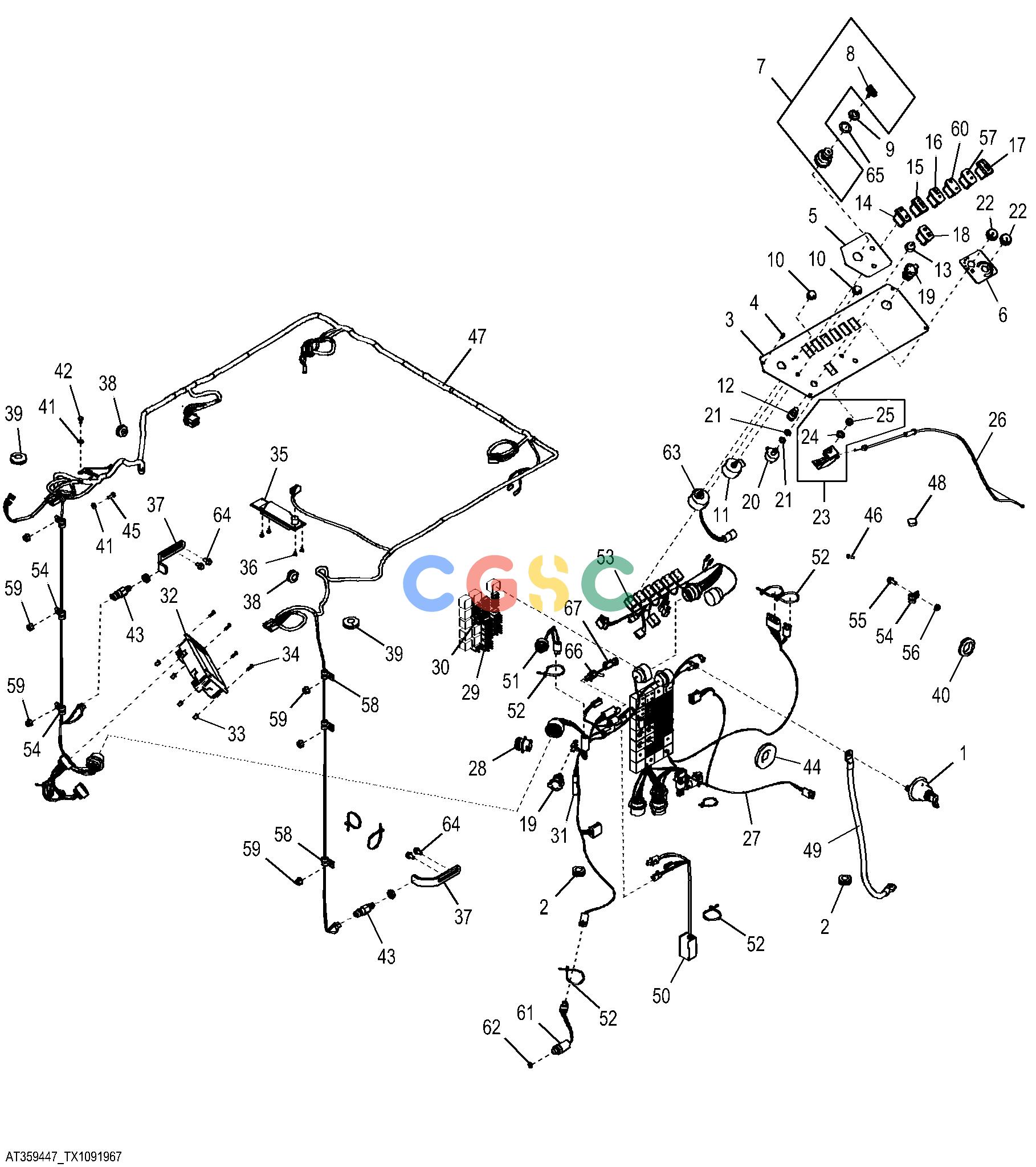

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | AT41188 | [1] | Switch | BATTERY DISCONNECT |
| 2. | H65107 | [3] | Grommet | |
| 3. | AT358839 | [1] | Panel | |
| 4. | R76500 | [4] | Screw | |
| 5. | T246497 | [1] | Label | CAB CONSOLE |
| 6. | T233661 | [1] | Label | HEATER AND AIR CONDITIONER |
| 7. | AT195301 | [1] | Switch | IGNITION |
| 8. | AT195302 | [1] | Key | |
| 9. | R44342 | [1] | Nut | |
| 10. | F123809 | [2] | Knob | |
| 11. | F393389 | [1] | Potentiometer | |
| 12. | R39554 | [1] | Switch | |
| 13. | T55501 | [1] | Cap | SWITCH BOOT, HORN |
| 14. | AT326982 | [1] | Toggle/Rocker Switch | PARK BRAKE |
| 15. | AT347137 | [1] | Toggle/Rocker Switch | PILOT ENABLE |
| 16. | AT327024 | [1] | Toggle/Rocker Switch | FAN REVERSER |
| 17. | AT350611 | [1] | Toggle/Rocker Switch | SAW ENABLE |
| 18. | AT303865 | [1] | Toggle/Rocker Switch | A/C SWITCH |
| 19. | GY20126 | [2] | Socket Outlet | |
| 20. | RE43497 | [1] | Switch | ROTARY |
| 21. | E46066 | [2] | Nut | |
| 22. | AL76568 | [2] | Knob | |
| 23. | RE46742 | [1] | Control | TEMPERATURE |
| 24. | 12H292 | [1] | Lock Washer | 1/2" |
| 25. | 14H934 | [1] | Nut | 7/16" |
| 26. | AT360809 | [1] | Push Pull Cable | |
| 27. | AT390990 | [1] | Cab Wiring Harness | (SUB FOR AT358836 AND AT376282), LOAD CENTER COMPONENTS ON SEPARATE PAGE |
| 28. | 57M7919 | [1] | Elec. Connector Housing | |
| 29. | AT434626 | [11] | Relay | SUB FOR AT308380 |
| 30. | T103834 | [2] | Circuit Breaker | |
| 31. | T253387 | [1] | Elec. Connector Accessory | |
| 32. | AT359480 | [1] | Monitor | |
| 33. | T82792 | [4] | Nut | |
| 34. | T82791 | [4] | Screw | |
| 35. | AT320544 | [1] | Lamp | (SUB FOR AT101691 THIS APPLICATION) |
| 36. | 37H195 | [4] | Screw | 0.190" X 3/8" |
| 37. | F391586 | [2] | Plate | |
| 38. | R36235 | [2] | Grommet | |
| 39. | R45210 | [2] | Grommet | |
| 40. | U15091 | [1] | Grommet | |
| 41. | 24H1287 | [2] | Washer | 9/32" X 5/8" X 0.065" |
| 42. | 19H3887 | [1] | Cap Screw | 1/4" X 1/2" |
| 43. | F065818 | [2] | Switch | |
| 44. | R180306 | [1] | Grommet | |
| 45. | 19H3869 | [1] | Cap Screw | 1/4" X 3/4" |
| 46. | T124407 | [1] | Screw | |
| 47. | AT414551 | [1] | Cab Wiring Harness | (SUB FOR AT361022 AND AT375611) CAB COMPONENTS ON SEPARATE PAGE |
| 48. | 811124400 | [1] | Plug | |
| 49. | AT201503 | [1] | Cable | |
| 50. | F125507 | [1] | Amplifier | |
| 51. | AT160480 | [1] | Alarm System | |
| 52. | R44302 | [18] | Tie Band | |
| 53. | AT376280 | [1] | Cab Wiring Harness | (SUB FOR AT360061) CAB CONSOLE COMPONENTS ON SEPARATE PAGE |
| 54. | T74412 | [4] | Clamp | |
| 55. | 19M7866 | [1] | Screw | M8 X 20 |
| 56. | 14M7298 | [1] | Flange Nut | M8 |
| 57. | AT303862 | [1] | Toggle/Rocker Switch | WORK LIGHT |
| 58. | T78974 | [3] | Clamp | |
| 59. | R189154 | [6] | Nut | (SUB FOR E59406 THIS APPLICATION) |
| 60. | AT363792 | [1] | Toggle/Rocker Switch | THROTTLE |
| 61. | F124042 | [1] | Pressure Switch | SERVICE BRAKE |
| 62. | R26448 | [1] | O-Ring | |
| 63. | AT365422 | [1] | Potentiometer | GROUND SPEED LIMITER |
| 64. | 19M7865 | [4] | Screw | M8 X 16 |
| 65. | 24H1447 | [1] | Washer | 1-1/32" X 1-1/2" X 0.036" SUB FOR 24H1844 |
| 66. | AT394002 | [1] | Wiring Harness | |
| 67. | R78053 | [1] | Electrical Connector Assy |
