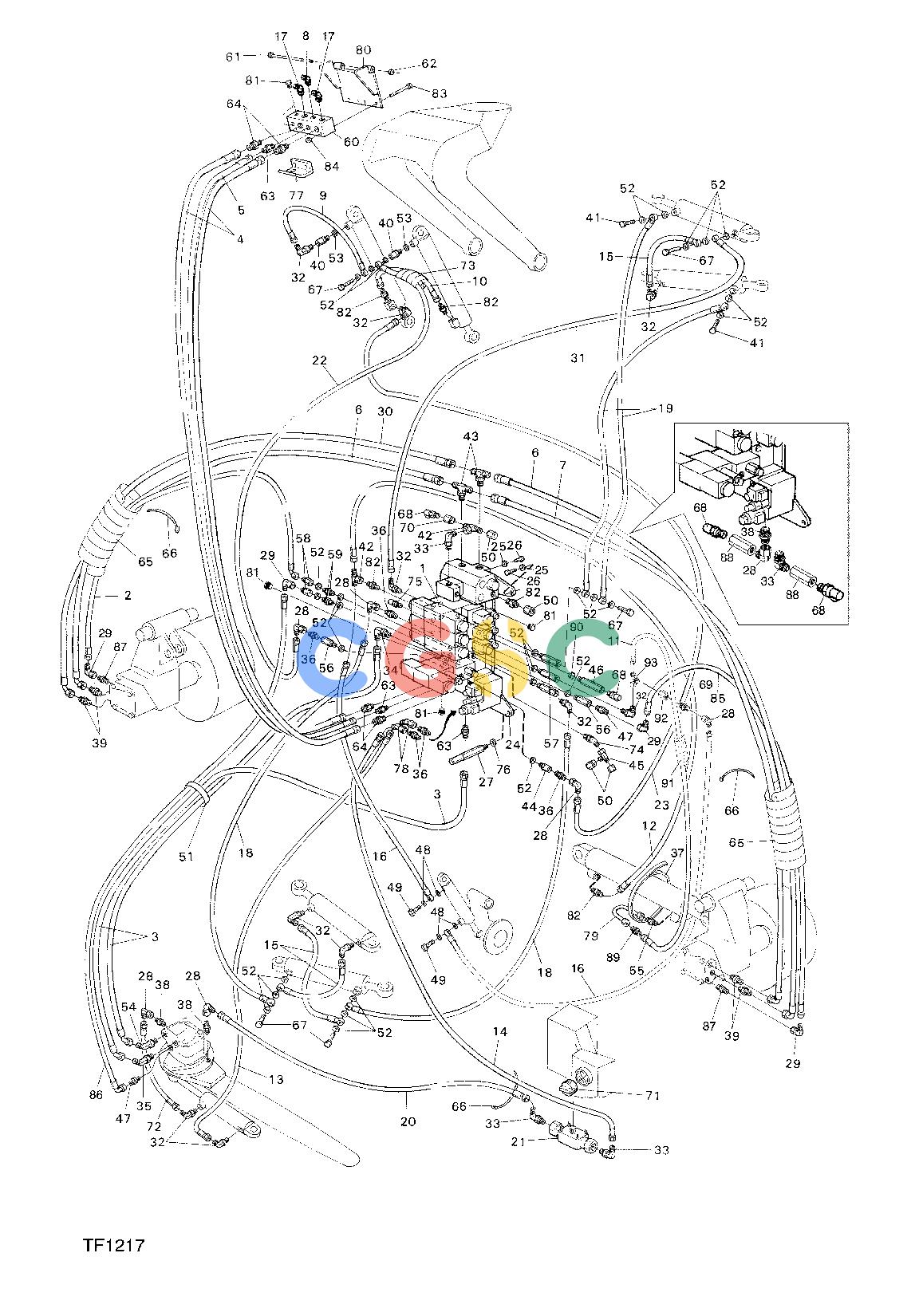

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | F043523 | [1] | HYDRAULIC VALVE | |
| 1. | F054658 | [1] | HYDRAULIC VALVE | |
| 2. | F051587 | [1] | HOSE-ASSY | |
| 3. | F051586 | [2] | HOSE-ASSY | |
| 4. | F051585 | [2] | HOSE-ASSY | |
| 5. | F051584 | [1] | HOSE-ASSY | |
| 6. | F051583 | [2] | HOSE-ASSY | |
| 7. | F051582 | [1] | HOSE-ASSY | |
| 8. | F020756 | [1] | ELBOW NIPPLE | |
| 9. | F051591 | [1] | HOSE-ASSY | |
| 10. | F043570 | [1] | HOSE-ASSY | |
| 11. | F052828 | [1] | HOSE-ASSY | |
| 12. | F052827 | [1] | HOSE-ASSY | |
| 13. | F051580 | [1] | HOSE-ASSY | |
| 14. | F048261 | [1] | HOSE-ASSY | |
| 15. | F045435 | [3] | HOSE-ASSY | |
| 16. | F046728 | [2] | HOSE-ASSY | |
| 17. | F005091 | [2] | ELBOW NIPPLE | |
| 18. | F051579 | [2] | HOSE-ASSY | |
| 19. | F051590 | [2] | HOSE-ASSY | |
| 20. | F051620 | [1] | HOSE-ASSY | |
| 21. | F012628 | [1] | Pump | |
| 22. | F051588 | [1] | HOSE-ASSY | |
| 23. | F051589 | [1] | HOSE-ASSY | |
| 24. | F602510 | [1] | Bracket | |
| 25. | F002805 | [8] | Lock Washer | |
| 26. | F003541 | [8] | Screw | |
| 27. | F045894 | [2] | HEXAGON BAR | |
| 28. | F022417 | [7] | ELBOW NIPPLE | |
| 29. | F005045 | [4] | ELBOW NIPPLE | |
| 30. | F051596 | [1] | HOSE-ASSY | |
| 31. | F043539 | [1] | HOSE-ASSY | |
| 32. | F024402 | [9] | ELBOW NIPPLE | |
| 33. | F024599 | [4] | ELBOW NIPPLE | |
| 34. | F005049 | [1] | ELBOW NIPPLE | |
| 35. | F020756 | [1] | ELBOW NIPPLE | |
| 36. | F005055 | [5] | NIPPLE | |
| 37. | F003681 | [1] | Hose Clamp | |
| 38. | F005057 | [3] | NIPPLE | |
| 39. | F005064 | [4] | NIPPLE | |
| 40. | F017040 | [2] | NIPPLE | |
| 41. | F022097 | [2] | BANJO SCREW | |
| 42. | F005076 | [2] | T-CONNECTION | |
| 43. | F046718 | [2] | T-CONNECTION | |
| 44. | F015831 | [1] | NIPPLE | |
| 45. | F023535 | [1] | L-CONNECTION | |
| 46. | F046045 | [1] | CONNECTION | |
| 47. | F005060 | [4] | NIPPLE | |
| 48. | F005164 | [4] | SEAL RING | |
| 49. | F012789 | [2] | BANJO SCREW | |
| 50. | F039981 | [4] | Nut | |
| 51. | F011353 | [1] | Belt | |
| 52. | F005166 | [29] | SEAL RING | |
| 53. | F005168 | [2] | SEAL RING | |
| 54. | F049283 | [1] | THROTTLE NIPPLE | |
| 55. | F005059 | [1] | NIPPLE | |
| 56. | F019945 | [1] | NIPPLE | |
| 57. | F019944 | [3] | NIPPLE | |
| 58. | F011485 | [2] | NIPPLE | |
| 59. | F004357 | [2] | NIPPLE | |
| 60. | F048122 | [1] | BLOCK | |
| 61. | F013609 | [1] | Screw | |
| 62. | F003590 | [1] | Lock Nut | |
| 63. | F005063 | [3] | NIPPLE | |
| 64. | F005095 | [4] | NIPPLE | |
| 65. | F032113 | [2] | HOSE PROTECTION | |
| 66. | F005334 | [8] | Binder | |
| 67. | F027699 | [5] | BANJO SCREW | |
| 68. | F017320 | [4] | MEASURING NIPPLE | |
| 69. | F042067 | [1] | THROTTLE NIPPLE | |
| F033710 | [1] | LOCKING FLUID | ||
| 70. | F027231 | [1] | NIPPLE | |
| F033710 | [1] | LOCKING FLUID | ||
| 71. | F021332 | [1] | REFILLING COVER | |
| 72. | F051876 | [1] | HOSE-ASSY | |
| 73. | F031276 | [2] | PROTECTION SPIRAL | |
| 74. | F046497 | [1] | ELBOW NIPPLE | |
| 75. | F047314 | [1] | MEASURING NIPPLE | |
| 76. | F005012 | [4] | Lock Washer | |
| 77. | F601549 | [1] | Plate | |
| 78. | F013594 | [2] | ELBOW NIPPLE | |
| 79. | F052441 | [1] | PIPE ASSY | |
| 80. | F049133 | [1] | Bracket | |
| 81. | F018111 | [5] | Plug | |
| 82. | F005056 | [5] | NIPPLE | |
| 83. | F003487 | [4] | Screw | |
| 84. | F003588 | [4] | Lock Nut | |
| 85. | F052859 | [1] | HOSE-ASSY | |
| 86. | F048981 | [1] | HOSE-ASSY | |
| 87. | F023015 | [2] | NIPPLE | |
| 88. | F052505 | [2] | Adapter | |
| 89. | F026843 | [1] | CONNECTION | |
| 90. | F005164 | [1] | NIPPLE | |
| 91. | F054318 | [1] | HOSE PROTECTION | |
| 92. | F027231 | [1] | NIPPLE | |
| 93. | F054698 | [1] | T-CONNECTION |
