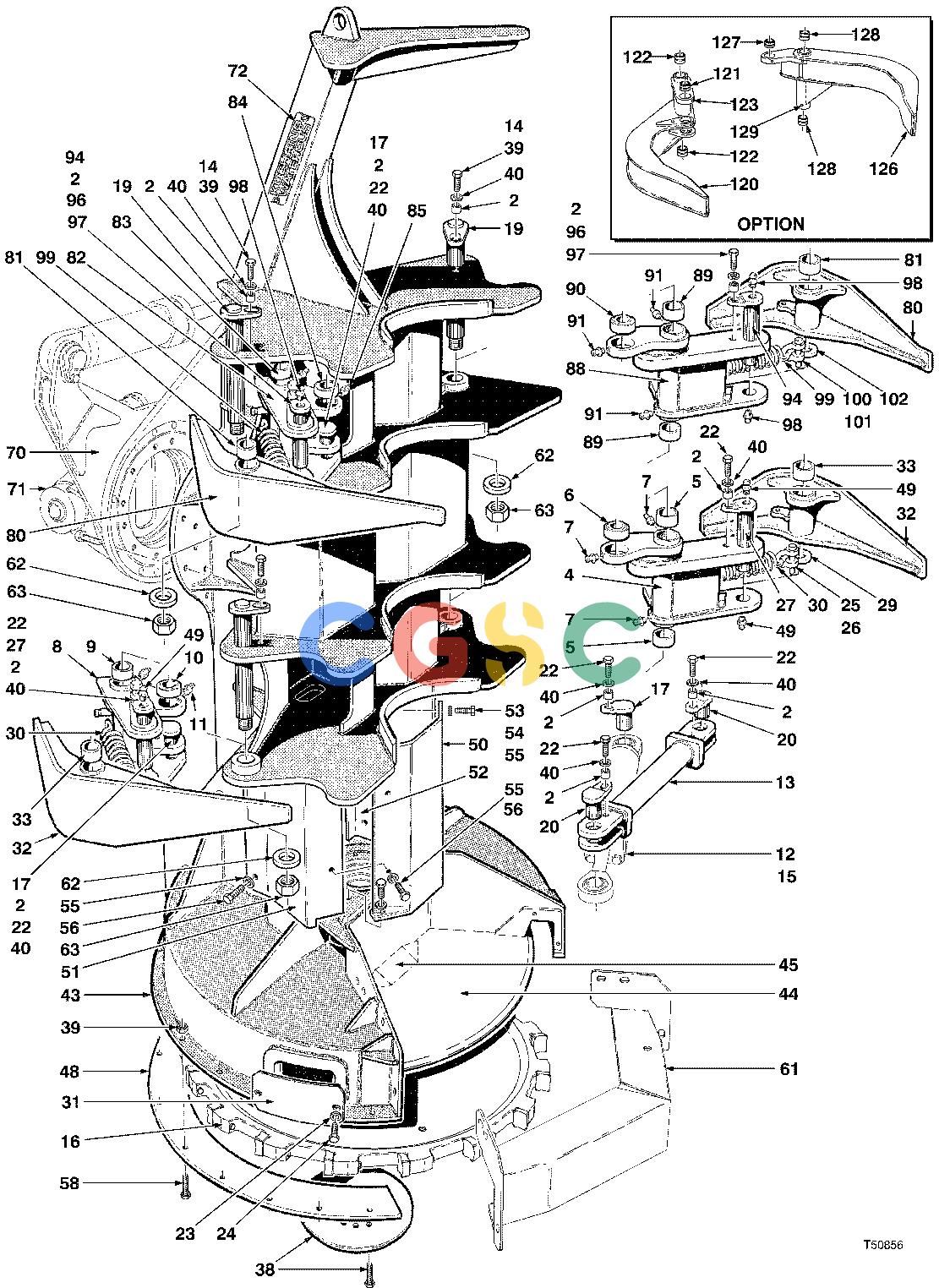

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 700566400 | [1] | Felling Head | ||
| 2. | 700041400 | [14] | Spacer | |
| 4. | 700432000 | [1] | ARM, INNER L.H | |
| 5. | 700051400 | [2] | Bushing | |
| 6. | 810003000 | [1] | Bushing | |
| 7. | 810000100 | [3] | GREASE FITTING.N610 | |
| 8. | 700432100 | [1] | ARM, INNER R.H | |
| 9. | 700051400 | [2] | Bushing | |
| 10. | 810003000 | [1] | Bushing | |
| 11. | 810000100 | [3] | GREASE FITTING.N610 | |
| 12. | 810112100 | [4] | ELBOW-90 DEG. | |
| 13. | 700543900 | [2] | Link | |
| 14. | 810084400 | [4] | BOLT*3/4-10UNCX2 | |
| 15. | ------- | [2] | CYLINDER-CLAMP - SECT. 2800 | |
| 16. | ------- | [1] | DISC BLADE - SECT. 4500 | |
| 17. | 700055000 | [4] | Pin | |
| 19. | 701348400 | [4] | Pin | |
| 20. | 700408100 | [4] | Pin | |
| 22. | 810084200 | [10] | BOLT*3/4-10UNCX1-1/2 | |
| 23. | 810309800 | [2] | WASHER*3/8 | |
| 24. | 811225400 | [2] | BOLT*3/8-16UNC-1/2 | |
| 25. | 700576600 | [2] | Pin | |
| 26. | 700588800 | [2] | Shackle | |
| 27. | 700487800 | [2] | PIN ASSY | |
| 29. | 700482700 | [2] | Spacer | |
| 30. | 700061100 | [2] | Spring | |
| 31. | 700986300 | [1] | Cover | |
| 32. | 700432300 | [2] | ARM, LOWER, OUTER | |
| 33. | 810316600 | [2] | Bearing | |
| 38. | ------- | [1] | DISC SAW DRIVE - SECT. 4500 | |
| 39. | 810044600 | [20] | LOCKNUT*3/4-10UNC | |
| 40. | 810002100 | [18] | WASHER*3/4 | |
| 43. | 701153400 | [1] | Felling Head | |
| 44. | F276640 | [1] | Plate | |
| 45. | F276645 | [1] | Plate | |
| 48. | 700431100 | [2] | Plate | |
| 49. | 810000100 | [6] | GREASE FITTING.N610 | |
| 50. | 701437800 | [1] | Guard | |
| 51. | 700429700 | [1] | GUARD R.H | |
| 52. | 700429800 | [1] | GUARD L.H | |
| 53. | 810087700 | [2] | NUT*1/2-13UNC | |
| 54. | 810082200 | [4] | BOLT*1/2-13UNCX1-1/4 | |
| 55. | 810011600 | [14] | WASHER*1/2 | |
| 56. | 810082100 | [8] | BOLT*1/2-13UNCX1 | |
| 58. | 810084500 | [16] | BOLT*3/4-10UNCX2-1/4 | |
| 61. | ------- | [1] | SAW GUARD - SECT. 4500 | |
| 62. | 700772000 | [4] | Washer | |
| 63. | 811216700 | [4] | NUT*1-3/8-12UNC | |
| 70. | ------- | [1] | WRIST-ASSEMBLY - SECT. 4500 | |
| 71. | ------- | [1] | BOOM ADAPTER - SECT. 4500 | |
| 72. | ------- | [REF] | DECALS - SECT. 7500 | |
| 80. | 700432400 | [2] | ARM, UPPER, OUTER | |
| 81. | 810316600 | [2] | Bearing | |
| 82. | 700432100 | [1] | ARM, INNER R.H | |
| 83. | 700051400 | [2] | Bushing | |
| 84. | 810003000 | [1] | Bushing | |
| 85. | 810000100 | [3] | GREASE FITTING.N610 | |
| 88. | 700432000 | [1] | ARM, INNER L.H | |
| 89. | 700051400 | [2] | Bushing | |
| 90. | 810003000 | [1] | Bushing | |
| 91. | 810000100 | [3] | GREASE FITTING.N610 | |
| 94. | 700487800 | [2] | PIN ASSY | |
| 96. | 810084200 | [2] | BOLT*3/4-10UNCX1-1/2 | |
| 97. | 810002100 | [2] | WASHER*3/4 | |
| 98. | 810000100 | [4] | GREASE FITTING.N610 | |
| 99. | 700061100 | [2] | Spring | |
| 100. | 700588800 | [2] | Shackle | |
| 101. | 700576600 | [2] | Pin | |
| 102. | 700482700 | [2] | Spacer | |
| 120. | 700826900 | [1] | Arm | |
| 121. | 810003000 | [1] | Bushing | |
| 122. | 700051400 | [2] | Bushing | |
| 123. | 810000100 | [3] | GREASE FITTING.N610 | |
| 126. | 700827000 | [1] | Arm | |
| 127. | 810003000 | [1] | Bushing | |
| 128. | 700051400 | [2] | Bushing | |
| 129. | 810000100 | [3] | GREASE FITTING.N610 |
