701149500
|
[1] |

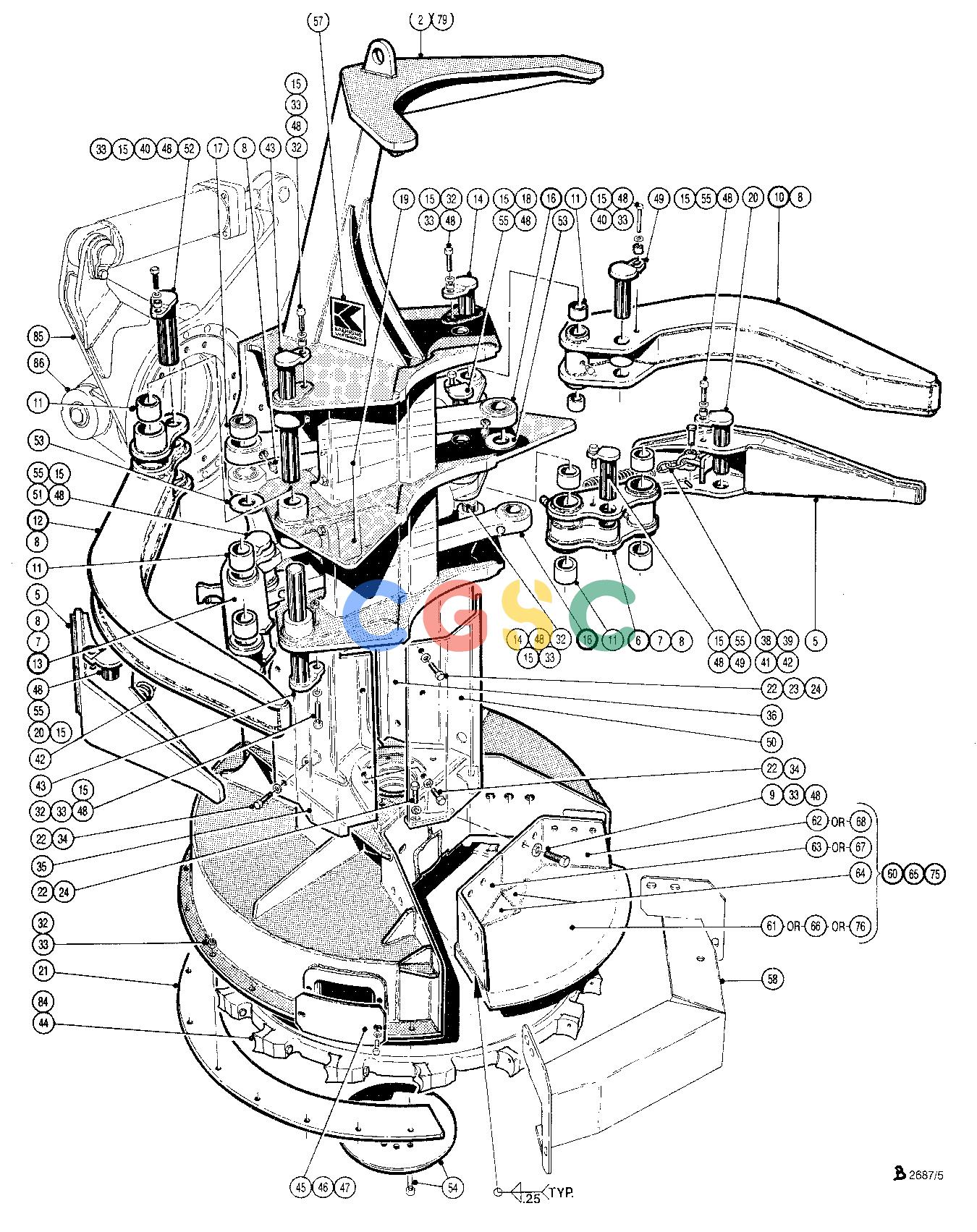

FELLING HEAD - USED WITH WRIST
|
|
| 2. |
700254500
|
[1] |
Felling Head
|
|
| 5. |
700432200
|
[2] |
Arm
|
|
| 6. |
700566200
|
[1] |
ARM - INCL. 4 OF ITEM 11
|
|
| 7. |
810044000
|
[2] |
GREASE FIT*1/8-27PTF
|
|
| 8. |
810000100
|
[10] |
GREASE FITTING.N610
|
|
| 9. |
810084300
|
[10] |
BOLT*3/4-10UNCX1-3/4
|
|
| 10. |
700275200
|
[1] |
ARM - INCL. 1 OF ITEM 8
|
|
| 11. |
700052300
|
[12] |
Bushing
|
|
| 12. |
700270900
|
[1] |
ARM - INCL. 2 OF ITEM 11 & 1 OF ITEM 8
|
|
| 13. |
700566100
|
[1] |
ARM - INCL. 1 OF ITEM 7,8 & 4 OF ITEM 11
|
|
| 14. |
700408600
|
[2] |
Pin
|
|
| 15. |
700041400
|
[14] |
Spacer
|
|
| 16. |
700425200
|
[2] |
LINK - INCL. 2 OF ITEM 8
|
|
| 17. |
810106700
|
[2] |
Bushing
|
|
| 18. |
700055000
|
[2] |
Pin
|
|
| 19. |
---------
|
[2] |
CYLINDER-CLAMP - SECT. 2800
|
|
| 20. |
700404900
|
[2] |
PIN - INCL. ITEM 15
|
|
| 21. |
700431100
|
[2] |
Plate
|
|
| 22. |
810011600
|
[10] |
WASHER*1/2
|
|
| 23. |
810087700
|
[6] |
NUT*1/2-13UNC
|
|
| 24. |
810082200
|
[4] |
BOLT*1/2-13UNCX1-1/4
|
|
| 32. |
810084500
|
[20] |
BOLT*3/4-10UNCX2-1/4
|
|
| 33. |
810044600
|
[32] |
LOCKNUT*3/4-10UNC
|
|
| 34. |
810082100
|
[8] |
BOLT*1/2-13UNCX1
|
|
| 35. |
700430100
|
[1] |
GUARD, RH
|
|
| 36. |
700430200
|
[1] |
GUARD, LH
|
|
| 38. |
700576600
|
[2] |
Pin
|
|
| 39. |
700588800
|
[2] |
Shackle
|
|
| 40. |
810084600
|
[2] |
BOLT*3/4-10UNCX2-1/2
|
|
| 41. |
700422000
|
[2] |
CHAIN
|
|
| 42. |
700061100
|
[2] |
Spring
|
|
| 43. |
700408700
|
[2] |
PIN - INCL. ITEM 15
|
|
| 44. |
---------
|
[1] |
DISC BLADE - SECT. 4500
|
|
| 45. |
700986300
|
[1] |
Cover
|
|
| 46. |
811225400
|
[2] |
BOLT*3/8-16UNC-1/2
|
|
| 47. |
810309800
|
[2] |
WASHER*3/8
|
|
| 48. |
810002100
|
[32] |
WASHER*3/4
|
|
| 49. |
700676400
|
[2] |
PIN - INCL. ITEM 15
|
|
| 50. |
701437300
|
[1] |
Guard
|
|
| 51. |
700676700
|
[1] |
PIN - INCL. ITEM 15
|
|
| 52. |
700677000
|
[1] |
PIN - INCL. ITEM 15
|
|
| 53. |
700482700
|
[2] |
Spacer
|
|
| 54. |
---------
|
[1] |
DISC SAW DRIVE - SECT. 4500
|
|
| 55. |
810084200
|
[6] |
BOLT*3/4-10UNCX1-1/2
|
|
| 57. |
---------
|
[1] |
DECALS - SECT. 7500
|
|
| 58. |
---------
|
[1] |
SAW GUARD - SECT. 4500
|
|
| 60. |
---------
|
[1] |
BUTT PLATE
|
|
| 61. |
700548800
|
[1] |
BUTT PLATE
|
|
| 62. |
700546900
|
[1] |
PLATE L.H
|
|
| 63. |
700546800
|
[1] |
PLATE R.H
|
|
| 64. |
700543500
|
[2] |
Cover
|
|
| 65. |
---------
|
[1] |
BUTT PLATE, INCL. ITEM 64
|
|
| 66. |
700547000
|
[1] |
Plate
|
|
| 67. |
700544800
|
[1] |
PLATE, R.H
|
|
| 68. |
700544900
|
[1] |
PLATE, L.H
|
|
| 75. |
---------
|
[1] |
BUTT PLATE INCL. ITEM 64, 67 & 68
|
|
| 76. |
700882100
|
[1] |
Plate
|
|
| |
700767000
|
[1] |
FELLING HEAD - WITHOUT WRIST INCL. ITEMS 3-76
|
|
| 79. |
700767100
|
[1] |
Felling Head
|
|
| 85. |
---------
|
[1] |
WRIST
|
|
| 86. |
---------
|
[1] |
BOOM ADAPTER
|
|
| |
|
|
NOTE 1: USED WITH FUTURE-2000
|
|
| |
|
|
DISC BLADE
|
|
| |
|
|
NOTE 2: USED WITH ROTATABLE TOOTH &
|
|
| |
|
|
BOLT-ON SEGMENT DISC BLADES
|
|
| |
|
|
NOTE 3: USED WITH SERIES 4000R DISC
|
|
| |
|
|
Blade
|
|
