约翰迪尔零件查询622 - AMT STEERING WHEEL AND STEERING GEAR VOLANT DT MECANISME DE DIRECTION LENKRAD UND LENKGETRIEBE STERZO EDEPC John Deere online

作者：广数供应链运营团队

浏览数：

时间：2025-01-21 14:24:34

Parts Contact me WhatsApp

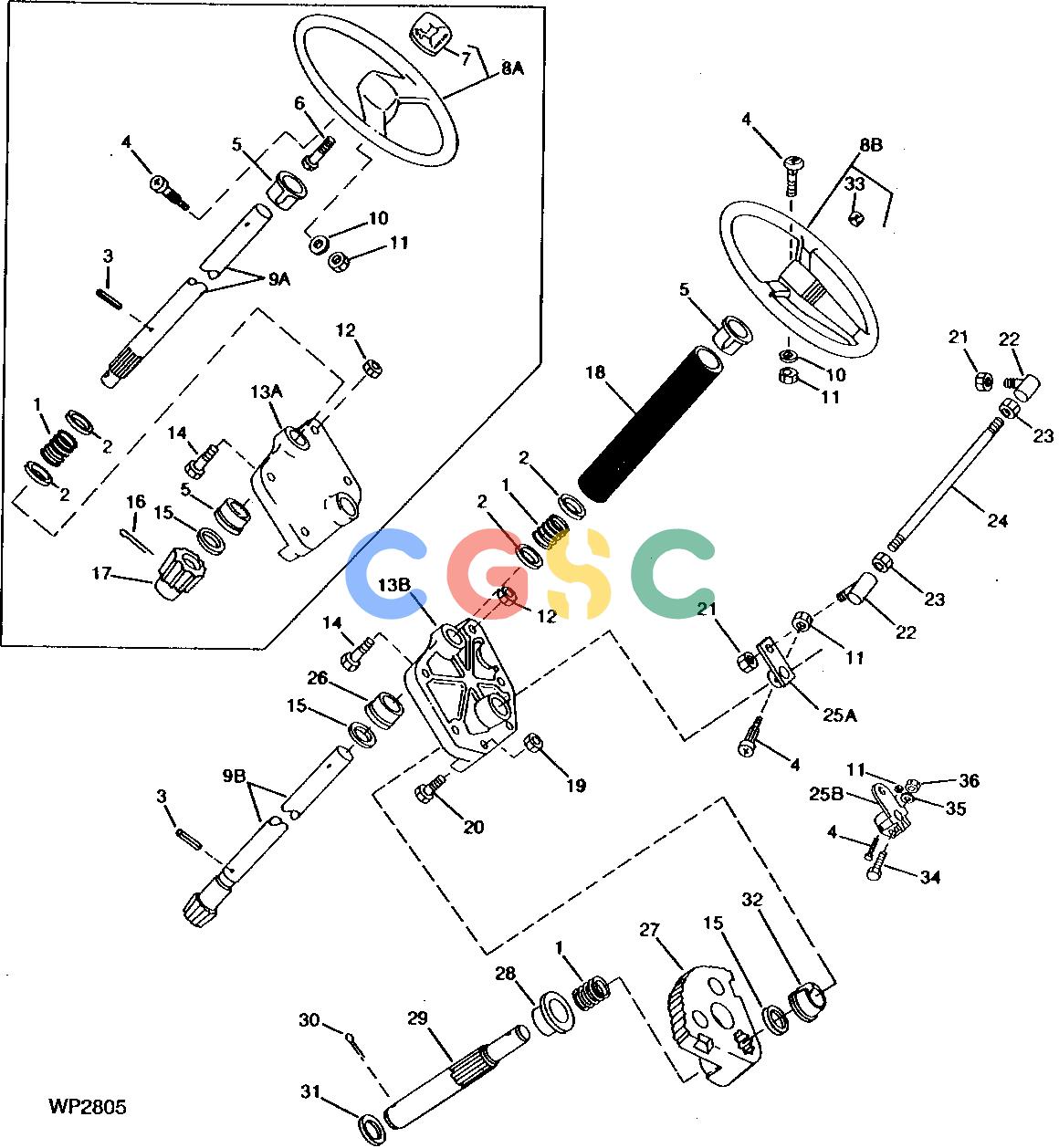

Pos.	Part No	Qty	Parts name	Comments
1.	M82388	[2]	Compression Spring
2.	M41361	[2]	Washer	0.758" X 1-1/4" X 0.033"
3.	34M7040	[1]	SPRING PIN	6 X 30 MM
4.	M87404	[2]	Bolt
5.	M81463	[1]	Bushing
6.	21H1407	[1]	Screw
6.	21H1407	[1]	Screw
7.	M91447	[1]	MEDALLION
7.	M91447	[1]	MEDALLION
8A.	M91446	[1]	Steering Wheel	(SUB AM115393 AND M110430)
8B.	AM121918	[1]	Steering Wheel	(ALSO ORDER M110430) (SUB FOR M91446 OR AM115393)
9A.	W40065	[1]	PINION SHAFT	(SUB M95420 AND M96364)
9B.	M96364	[1]	Pinion	(ALSO ORDER M95420) (SUB FOR W40065)
10.	24H1287	[1]	Washer	9/32" X 5/8" X 0.065"
11.	M63662	[2]	LOCK NUT	0.190"
12.	14M7165	[4]	LOCK NUT	M6
13A.	M83858	[1]	Support	(SUB M92123, M95420, M96364, M96644, M93520, (2) 19M7323, (2) 14M7166, THIS APPLICATION)
13A.	M83858	[1]	Support	(SUB M92123, M95420, M96364, M96644, M93520, (2) 19M7323, (2) 14M7166, THIS APPLICATION)
13B.	M92123	[1]	Support
14.	19M7933	[4]	CAP SCREW	M6 X 25
14.	19M7077	[1]	CAP SCREW	M6 X 20 UPPER LEFT HOLE
15.	M82542	[2]	Washer	0.757" X 1.125" X 0.033"
16.	11M7084	[1]	Cotter Pin	5 X 25 MM
16.	11M7084	[1]	Cotter Pin
17.	M83856	[1]	Gear
17.	M83856	[1]	Gear
18.	W40397	[1]	Sleeve
19.	14M7166	[2]	LOCK NUT	M8
20.	19M7323	[2]	CAP SCREW	M8 X 40
21.	M91187	[2]	LOCK NUT	7/16"
22.	AM125418	[2]	Ball Joint	(SUB FOR AM39889)
23.	14H856	[2]	NUT	1/2"
24.	W39988	[1]	Tie Rod Assembly
25A.	AW26602	[1]	PITMAN ARM	(SUB M97103, A51212, 19M7935 AND 24M7028)
25B.	M97103	[1]	PITMAN ARM	(ALSO ORDER A51212, 19M7935 AND 24M7028) (SUB FOR AW26602)
26.	M81463	[2]	Bushing
26.	M81463	[2]	Bushing
26.	M96644	[2]	Bushing
27.	M95420	[1]	Gear	(ALSO ORDER M96364) (SUB FOR W40048)
28.	M146545	[1]	Bushing	(SUB FOR M74734)
29.	W40064	[1]	Shaft
30.	11M7028	[1]	Cotter Pin	5 X 32 MM
31.	24H1660	[1]	Washer	57/64" X 1-3/8" X 0.060"
32.	M81463	[1]	Bushing
32.	M81463	[1]	Bushing
32.	M93520	[1]	BEARING
33.	M110430	[1]	Label
34.	19M7935	[1]	CAP SCREW	M10 X 55 (HS, HEAD MARKED 10.9)
35.	24M7028	[1]	Washer	10.500 X 20 X 2 MM
36.	14M7520	[1]	LOCK NUT	M10
