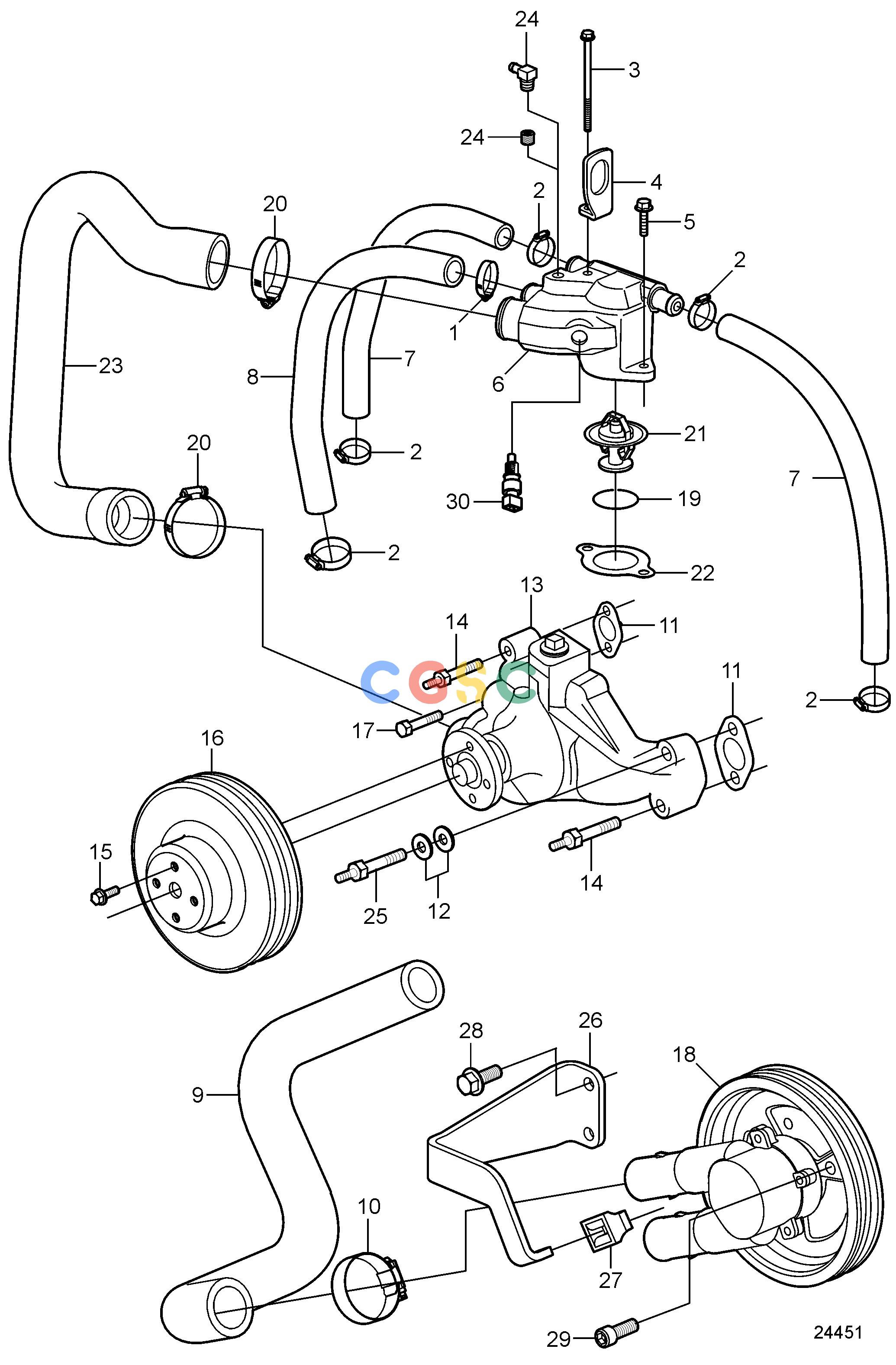

| 1. |
3852602
|
[2] |
Hose clamp, hose to thermostat housing
|
|
| 2. |
3853780
|
[5] |
Hose clamp, hose them hsg to exhaust manifold
|
|
| 3. |
3853391
|
[1] |
Flange screw, alignment bracket & thermostat hsg
|
|
| 4. |
3852649
|
[1] |
Bracket, alignment bracket
|
|
| 5. |
3853401
|
[1] |
Flange screw, thermostat hsg to engine
|
|
| 6. |
3850360
|
[1] |
Housing, thermostat hsg
|
|
| 7. |
3857843
|
[2] |
Hose, thermostat hsg to manifold
|
Cut to length; port
|
| 8. |
3858237
|
[1] |
Hose, pump to thermostat hsg
|
|
| 9. |
3858235
|
[1] |
Hose, cooler to pump
|
GL, GS
|
| 9. |
3858236
|
[1] |
Hose, cooler to pump
|
Gi, GSi
|
| 10. |
3853786
|
[2] |
Hose clamp, hose, water pump inlet
|
|
| 11. |
3852477
|
[2] |
Gasket, water pump to block
|
Part of engine gasket kit
|
| 12. |
980933
|
[2] |
Washer
|
|
| 13. |
3853850
|
[1] |
Circulation pump
|
|
| 14. |
3856147
|
[2] |
Stud, water pump
|
|
| 15. |
3853390
|
[4] |
Screw, water pump pulley to hub
|
|
| 16. |
3852220
|
[1] |
Pulley, water pump
|
|
| 17. |
3856136
|
[1] |
Bolt, water pump, short
|
|
| 18. |
3858229
|
[1] |
Sea water pump
|
|
| 19. |
3852071
|
[1] |
O-ring, thermostat
|
Part of engine gasket kit
|
| 20. |
3852098
|
[2] |
Hose clamp, hose, thermostat hsg to water pump
|
|
| 21. |
3856961
|
[1] |
Thermostat, engine
|
|
| 22. |
3852111
|
[1] |
Gasket, thermostat hsg to engine
|
|
| 23. |
3852288
|
[1] |
Hose, thermostat hsg to water pump
|
|
| 24. |
3853598
|
[1] |
Elbow, thermostat hsg
|
Gi
|
| 24. |
3850740
|
[1] |
Plug
|
GL, GS
|
| 25. |
3852507
|
[1] |
Stud, P/S bracket, pump
|
|
| 26. |
3858241
|
[1] |
Stay, stay, sea water pump
|
|
| 27. |
3857954
|
[1] |
Stop lug, stay, sea water pump
|
|
| 28. |
3853266
|
[2] |
Flange screw, stay bracket to engine
|
|
| 29. |
3857939
|
[3] |
Screw, pump pulley to engine
|
|
| 30. |
3850397
|
[1] |
Switch
|
GL, GS
|
