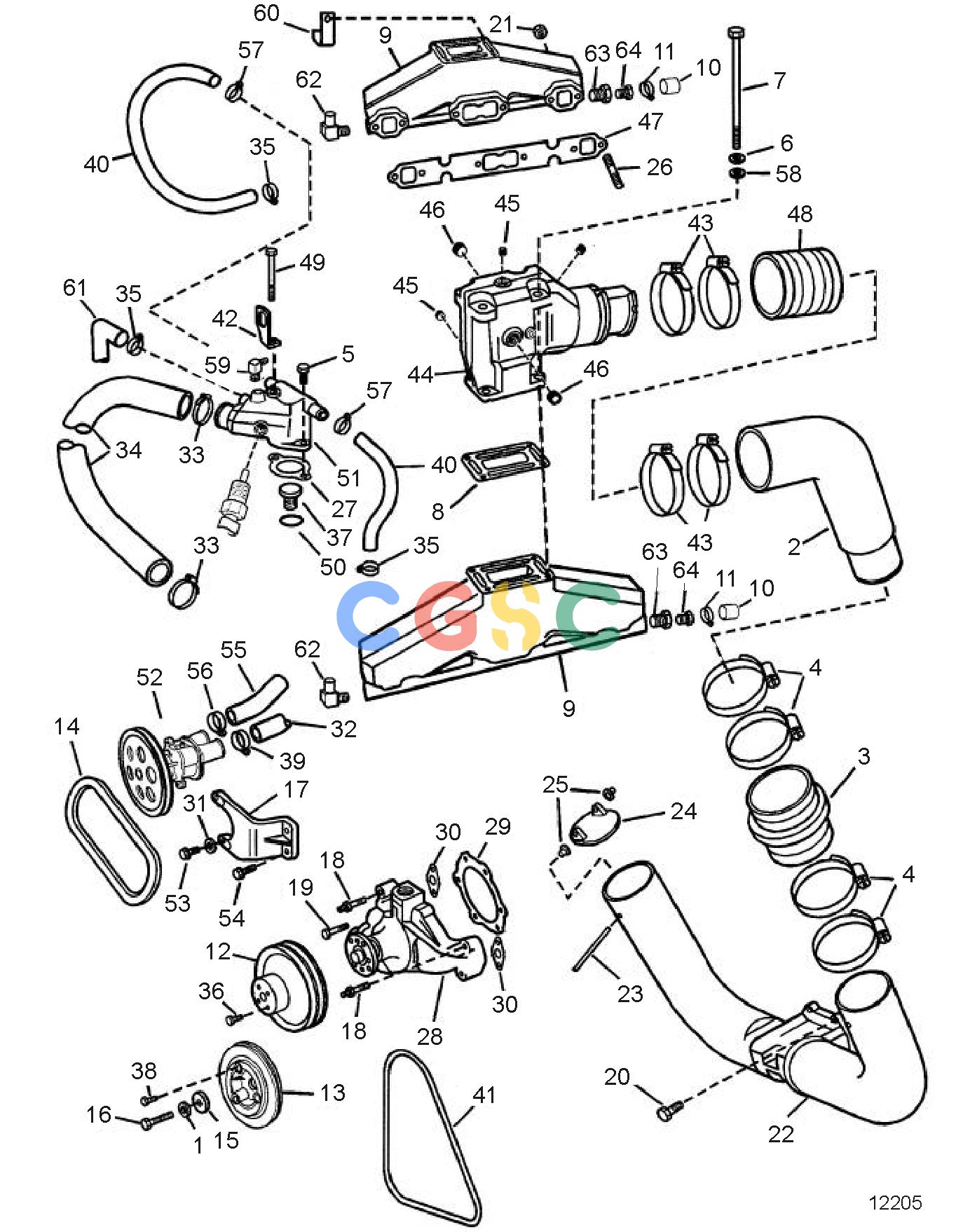

Pos.	Part No	Qty	Parts name	Comments
1.	3852046	[1]	Tab washer, harmonic balance
2.	3852738	[1]	Exhaust pipe	Port & stbd; SX, DP-S
3.	3852742	[2]	Hose
4.	3852604	[8]	Hose clamp
5.	3853401	[1]	Flange screw, thermostat hsg to engine	Short
6.	3852002	[8]	Tab washer, exhaust elbow to manifold
7.	3852830	[8]	Screw, exhaust elbow to manifold
8.	3850496	[2]	Gasket, exhaust elbow to manifold
9.	3857723	[2]	Exhaust manifold, port & starboard
10.	3852476	[2]	Cap, exhaust manifold	Early
11.	3853780	[2]	Hose clamp, hose to exhaust manifold	Early
12.	3852220	[1]	Pulley, water pump
13.	3851991	[1]	V-belt pulley, crankshaft
14.	978457	[1]	V-belt, water pump
15.	3852110	[1]	Washer, harmonic balance
16.	949519	[1]	Screw, harmonic balance	GS
17.	3856865	[1]	Bracket, water pump
18.	3856147	[2]	Stud, water pump
19.	3856136	[1]	Bolt, water pump, short
19.	3856137	[1]	Bolt, water pump, long
20.	3855472	[4]	Flange screw, exhaust pipe to gimbal hsg
21.	3853404	[12]	Nut, exhaust manifold to engine
22.	3855281	[1]	Exhaust pipe kit
23.	3852753	[2]	Pin, exhaust seal assy to exhaust pipe
24.	3853864	[2]	Seal, exhaust pipe
25.	3855517	[4]	Bushing, exhaust seal assy to exhaust pipe
26.	3857184	[12]	Flange screw, exhaust manifold to engine
27.	3852111	[1]	Gasket, thermostat hsg to intake manifold
28.	3853850	[1]	Circulation pump
29.	3850595	[1]	Gasket, water pump sover
30.	3852477	[2]	Gasket, water pump
31.	3852162	[2]	Washer, screw, water pump to bracket
32.	3850231	[1]	Hose, oil cooler to water pump	Gugs
32.	3856250	[1]	Hose, oil cooler to water pump	Gi/GSi
33.	3852098	[2]	Hose clamp, hose, thermostat hsg to water pump
34.	3856769	[1]	Hose, thermostat hsg to water pump
34.	3852288	[1]	Hose, thermostat hsg to water pump
35.	3853780	[3]	Hose clamp, hose to exhaust manifold
36.	3853390	[4]	Screw, water pump pulley to hub
37.	3856961	[1]	Thermostat, engine
38.	3855717	[3]	Screw, pulley to crankshaft
39.	3850422	[1]	Hose clamp, hose, water pump outlet
40.	3852746	[1]	Hose, thermostat hsg to manifold	Port, early
40.	3857843	[1]	Hose, thermostat hsg to manifold	Port, late
40.	3852488	[1]	Hose, thermostat hsg to manifold	Stbd, early
40.	3857605	[1]	Hose, thermostat hsg to manifold	Stbd, late
41.	978547	[1]	V-belt, alternator to pulley
42.	3852649	[1]	Bracket, center lift
43.	3853860	[8]	Hose clamp, hose, exhaust elbow
44.	3857944	[2]	Elbow
45.	3850740	[2]	Plug, exhaust elbow
46.	3850999	[2]	Plug, exhaust elbow
47.	3852468	[1]	Gasket, manifold to engine
48.	3852696	[2]	Hose, exhaust elbow to exhaust pipe	Upper
49.	3853391	[1]	Flange screw, lift bracket & thermostat hsg
50.	3852071	[1]	O-ring, thermostat
51.	3850360	[1]	Housing
52.	3857794	[1]	Sea water pump
53.	3853155	[2]	Flange screw, water pump to bracket
54.	3853326	[2]	Flange screw, lift bracket, fuel pump & relay assy
55.	3856769	[1]	Hose, water pump to thermostat hsg
56.	3852602	[1]	Hose clamp, hose, water pump outlet	GL, GS
56.	3853786	[1]	Hose clamp, hose, water pump outlet	Gi, GSi
57.	3853780	[2]	Hose clamp, hose to thermostat hsg
58.	3852058	[8]	Washer, exhaust elbow to manifold
59.	3853598	[2]	Elbow, thermostat hsg
60.	857045	[1]	Attaching clamp, water hose, cooler to thermostat
61.	3850363	[1]	Hose, cooler to thermostat
62.	3852538	[2]	Elbow, hose to manifold	Late
63.	3858291	[2]	Reduction sleeve, drain	Late
64.	3850802	[2]	Plug, drain	Late
