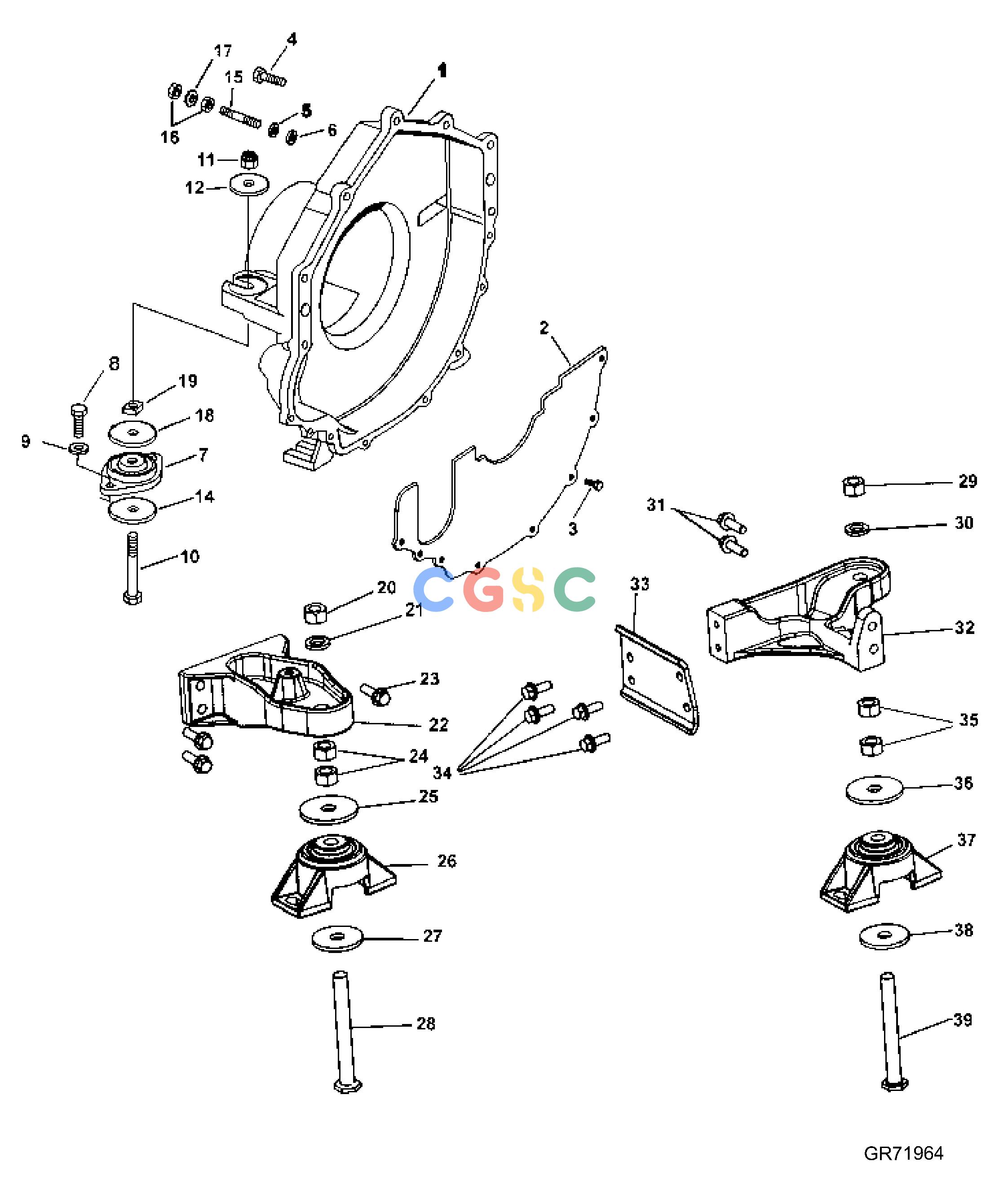

| 1. |
3857846
|
[1] |
Housing
|
|
| 2. |
3854604
|
[1] |
Cover, flywheel
|
|
| 3. |
3852421
|
[4] |
Screw, flywheel cover to hsg
|
|
| 4. |
3853326
|
[4] |
Flange screw, flywheel hsg to engine
|
|
| 5. |
3852070
|
[1] |
Washer, ground stud, flywheel hsg
|
Starboard
|
| 6. |
3852058
|
[1] |
Washer, ground stud, flywheel hsg
|
|
| 7. |
3853806
|
[1] |
Rubber cushion
|
|
| 8. |
959968
|
[4] |
Hexagon screw, rear mount to transom plate
|
|
| 9. |
3852155
|
[4] |
Washer, rear mount to transom plate
|
|
| 10. |
3850930
|
[2] |
Hexagon screw, rear mount
|
|
| 11. |
3850929
|
[2] |
Lock nut, rear mount
|
|
| 12. |
3852540
|
[2] |
Washer, rear mount to flywheel hsg
|
|
| 13. |
3852539
|
[2] |
Square nut
|
|
| 14. |
3852542
|
[2] |
Washer
|
|
| 15. |
3850571
|
[1] |
Stud, flywheel hsg to engine
|
Ground
|
| 16. |
3852065
|
[2] |
Nut, terminal to ground stud, flywheel hsg
|
|
| 17. |
3852070
|
[1] |
Washer, ground stud, flywheel hsg
|
Starboard
|
| 18. |
3852622
|
[2] |
Washer, rear mount
|
|
| 19. |
3852474
|
[1] |
Screw
|
|
| 20. |
3852021
|
[1] |
Nut
|
|
| 21. |
3852090
|
[1] |
Tab washer
|
|
| 22. |
3860088
|
[1] |
Bracket
|
|
| 23. |
3860582
|
[3] |
Flange screw
|
|
| 24. |
3852021
|
[2] |
Nut
|
|
| 25. |
3852433
|
[1] |
Washer
|
|
| 26. |
3853805
|
[1] |
Rubber cushion
|
|
| 27. |
3852428
|
[1] |
Washer
|
|
| 28. |
3852566
|
[1] |
Bolt
|
|
| 29. |
3852021
|
[1] |
Nut
|
|
| 30. |
3852090
|
[1] |
Tab washer
|
|
| 31. |
3860582
|
[2] |
Flange screw
|
|
| 32. |
3860089
|
[1] |
Bracket
|
|
| 33. |
3860272
|
[1] |
Bracket
|
|
| 34. |
3860163
|
[4] |
Flange screw
|
|
| 35. |
3852021
|
[2] |
Nut
|
|
| 36. |
3852433
|
[1] |
Washer
|
|
| 37. |
3853805
|
[1] |
Rubber cushion
|
|
| 38. |
3852428
|
[1] |
Washer
|
|
