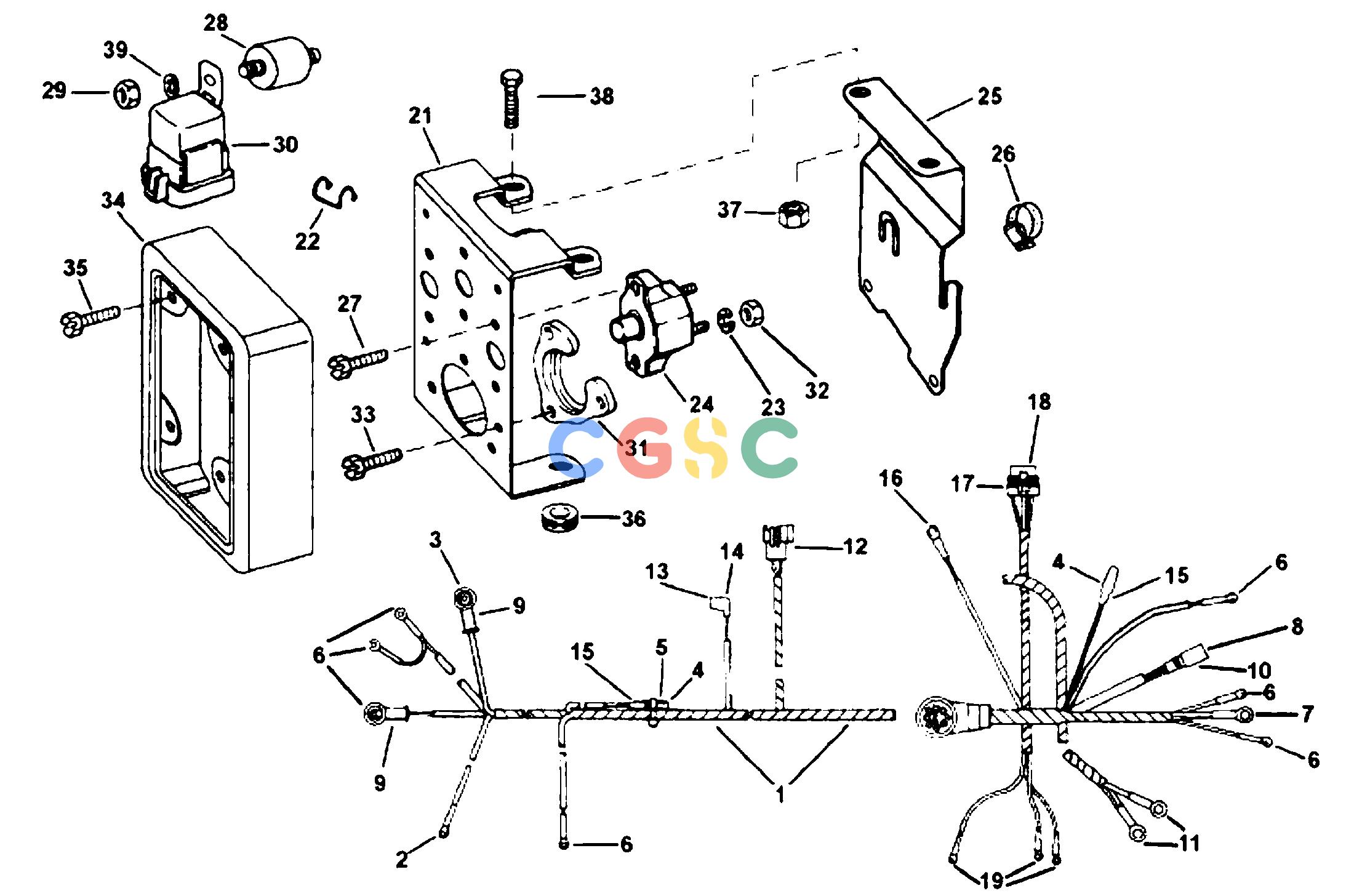

| 1. |
3857853
|
[1] |
Cable harness
|
|
| 2. |
3852036
|
[1] |
Terminal, #10
|
|
| 3. |
3852038
|
[1] |
Terminal, 0.25
|
As required
|
| 4. |
3852244
|
[2] |
Terminal, socket
|
|
| 5. |
3852181
|
[2] |
Cap
|
|
| 6. |
3852233
|
[7] |
Terminal, 10
|
|
| 7. |
3852037
|
[1] |
Terminal, battery
|
|
| 8. |
3852229
|
[1] |
Terminal, pin, trim sender
|
As required
|
| 9. |
3852130
|
[1] |
Rubber cap, alternator
|
|
| 10. |
3852249
|
[1] |
Connector, 2 cont receptacle
|
|
| 11. |
3852527
|
[1] |
Terminal, 0.375
|
As required
|
| 12. |
3853974
|
[1] |
Cable, w/Rings
|
|
| 13. |
3852084
|
[1] |
Terminal, side receptacle
|
As required
|
| 14. |
3853320
|
[1] |
Cap
|
|
| 15. |
3852248
|
[2] |
Cable sleeve, socket, blue
|
|
| 16. |
3852235
|
[1] |
Terminal, #10
|
|
| 17. |
3854192
|
[1] |
Relay
|
As required
|
| 18. |
3852254
|
[4] |
Terminal, receptacle
|
|
| 19. |
3852245
|
[3] |
Terminal, #10
|
|
| 20. |
3852182
|
[1] |
Washer
|
|
| 21. |
3856186
|
[1] |
Bracket, connector & relay
|
|
| 22. |
3852237
|
[1] |
Retainer, amphenol. trim sender, 2 terminal
|
|
| 23. |
3852001
|
[2] |
Tab washer, circuit breaker terminals
|
|
| 24. |
3854164
|
[1] |
Automatic fuse, 50A, engine
|
|
| 25. |
3857175
|
[1] |
Bracket, lift & circuit breaker
|
|
| 26. |
3853786
|
[1] |
Hose clamp, instrument cable connector
|
|
| 27. |
3853620
|
[4] |
Hexagon screw, circuit breaker to bracket
|
|
| 28. |
3850234
|
[1] |
Rubber cushion, relay mounting
|
|
| 29. |
3852118
|
[1] |
Nut, relay isolator to electrical bracket
|
|
| 30. |
3854138
|
[1] |
Relay, starter motor
|
|
| 31. |
3852825
|
[1] |
Retainer, engine cable
|
|
| 32. |
3852064
|
[4] |
Nut, circuit breaker terminals
|
|
| 33. |
3852208
|
[3] |
Screw, Retainer
|
Eng. cable enl to brkt
|
| 34. |
3856764
|
[1] |
Cover, bracket
|
|
| 35. |
3855938
|
[4] |
Screw, bracket cover
|
|
| 36. |
941263
|
[2] |
Grommet, bracket
|
|
| 37. |
3857181
|
[2] |
Flange lock nut, bracket
|
|
| 38. |
3853266
|
[2] |
Flange screw, circuit breaker bracket
|
|
