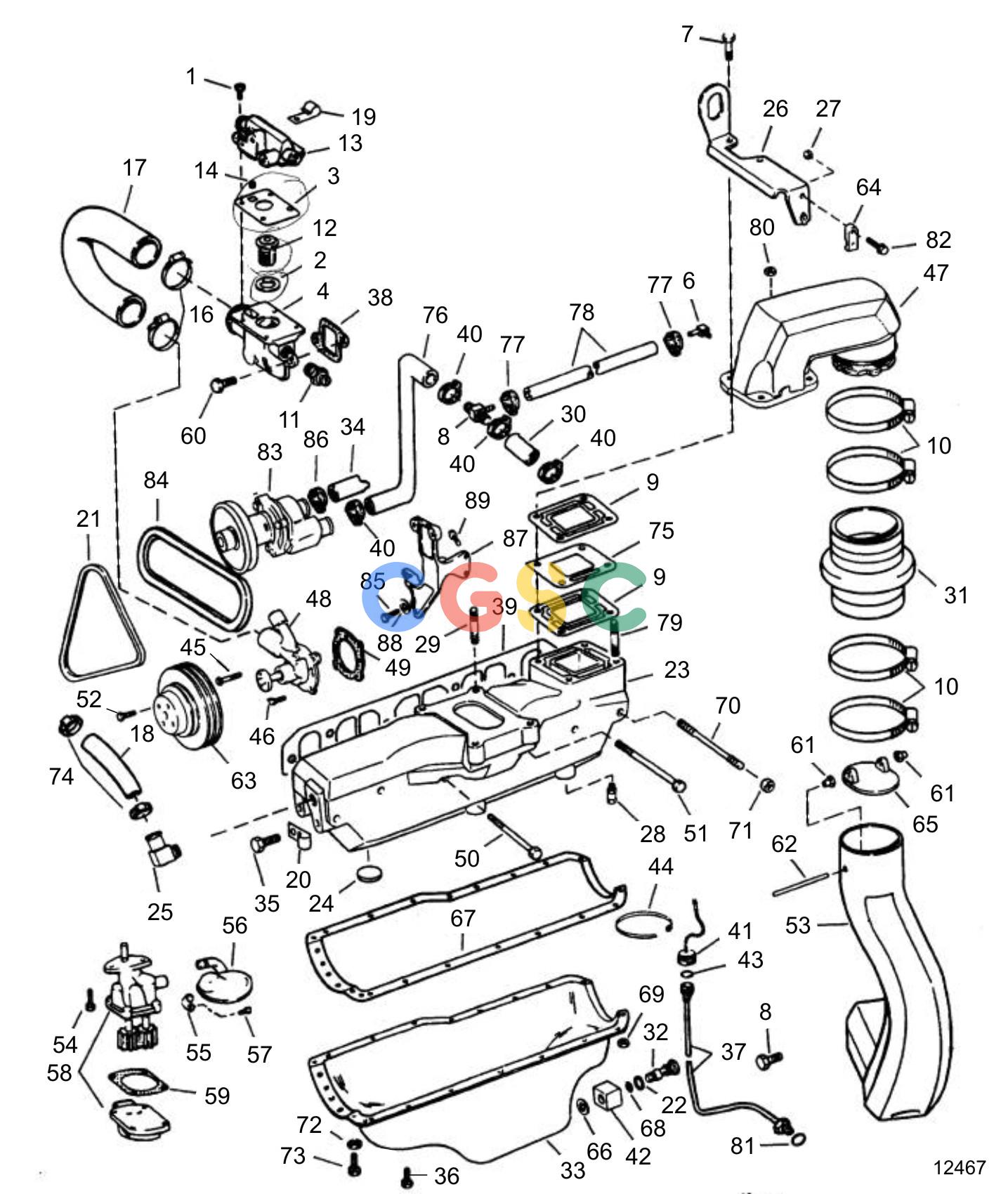

沃尔沃零件查询3.0GLMMDA; 3.0GSPMDAIntake and Exhaust SystemExhaust, Cooling and Oil PanEPC Volvo Penta Parts catalog

作者：广数供应链运营团队

浏览数：

时间：2025-01-25 01:54:42

工程机械零件图册查询

Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴 Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴

Pos.	Part No	Qty	Parts name	Comments
1.	3852053	[4]	Flange screw, thermostat housing
2.	3852120	[1]	Gasket, thermostat
3.	3852127	[1]	Gasket, upper to lower assembly
4.	3854254	[1]	Thermostat housing, thermostat assembly
5.	3853653	[1]	T-nipple, water to thermostat
6.	3853673	[1]	Elbow, high rise
7.	3853397	[2]	Screw, elbow to manifold
8.	3852898	[4]	Screw, pipe to gimbal
9.	3850495	[2]	Gasket, elbow to manifold
10.	3852604	[4]	Hose clamp, hose to elbow
11.	3852029	[1]	Sensor, water temp
11.	828258	[1]	Temperature sensor, water temp., dual sta
12.	3853799	[1]	Thermostat
13.	3854433	[1]	Thermostat housing, upper thermostat
14.	3853672	[1]	Plug, thermostat housing
15.	3852602	[1]	Hose clamp, hose to gimbal	Not shown
16.	3852098	[2]	Hose clamp, water pump hose
17.	3852289	[1]	Hose, water pump
18.	3853255	[1]	Hose, thermostat housing
19.	3852199	[1]	Attaching clamp, engine cable
20.	3852092	[1]	Attaching clamp, engine cable	Manual steering
21.	3852336	[1]	V-belt, alternator	Manual steering
21.	3853536	[1]	V-belt, alternator	power steering pump
22.	3852007	[1]	Washer, retainer to fitting
23.	3854045	[1]	Exhaust pipe
24.	3852134	[2]	Core plug
25.	3852538	[1]	Elbow, exhaust manifold
26.	3850219	[1]	Bracket, throttle control
27.	3852118	[1]	Nut, throttle anchor
28.	3854494	[1]	Drain cock, water drain
29.	3853373	[4]	Stud, carburetor to manifold
30.	3852334	[1]	Hose, tee to thermostat
31.	3852741	[1]	Hose, exhaust
32.	3852694	[1]	Retainer, oil pan drain
33.	3854015	[1]	Oil sump
34.	3852306	[1]	Hose, cooler to water pump	power steering pump
34.	3852331	[1]	Hose, gimbal to water pump	Manual steering
35.	3853419	[1]	Flange screw, engine cable clamp	Manual steering
36.	3852595	[18]	Bolt, oil pan
37.	3854215	[1]	Tube, oil drain
38.	3852096	[1]	Gasket, housing to head
39.	3853256	[1]	Gasket, manifold to head
40.	3853780	[1]	Hose clamp, hose to thermostat hsg
41.	3853783	[1]	Cap
42.	3855112	[1]	Fitting, oil pan drain
43.	3852426	[1]	Seal, cap oil drain tube
44.	3852158	[1]	Cable tie, cap & head chain
45.	3852063	[2]	Screw, water pump
46.	3853167	[2]	Bolt, water pump
47.	3850799	[1]	Exhaust pipe elbow, exhaust...:
48.	3854017	[1]	Water pump
49.	3853342	[1]	Gasket, water pump
50.	3853430	[3]	Screw, manifold, 5 1/4 in
51.	3853431	[1]	Screw, manifold, 6 1/4 in
52.	3853390	[4]	Screw, water pump pulley
53.	3850795	[1]	Exhaust pipe
54.	3853173	[1]	Bolt, oil pump to block
55.	3853133	[1]	Support
56.	3854014	[1]	Oil strainer
57.	3853219	[1]	Bolt, suction pipe bracket
58.	3853843	[1]	Oil pump
59.	3852658	[1]	Gasket, pump cover
60.	3853266	[2]	Flange screw, thermostat housing
61.	3853566	[2]	Bushing, pin
62.	3852753	[1]	Pin, exhaust seal
63.	3852401	[1]	Pulley, water pump
64.	3850266	[2]	Anchor, throttle cable
65.	3853864	[1]	Seal
66.	3851981	[1]	Washer, fitting to oil pan
67.	3853343	[1]	Gasket, oil pan
68.	3853674	[1]	O-ring, Retainer
69.	3853168	[4]	Nut, oil pan
70.	3853378	[2]	Stud, exhaust manifold
71.	3853404	[2]	Nut, exhaust manifold
72.	3852055	[2]	Tab washer, oil pan
73.	3853171	[2]	Screw, oil pan, front
74.	3852602	[2]	Hose clamp, hose to manifold
75.	3853628	[1]	Plate, high rise
76.	3852333	[1]	Hose, water pump to tee
77.	3853794	[2]	Hose clamp, hose to high rise
78.	3852335	[1]	Hose, tee to high rise
79.	3853373	[2]	Stud, elbow to manifold, rear
80.	3852142	[2]	Nut, elbow to manifold, rear
81.	3852033	[1]	O-ring, oil drain tube
82.	3852048	[1]	Screw, throttle cable anchor
83.	3852399	[1]	Water pump
84.	3850268	[1]	V-belt, water pump
85.	3853155	[2]	Flange screw, water pump
86.	3850422	[1]	Hose clamp
87.	3855078	[1]	Bracket, fuel filter & water pump
88.	3852162	[2]	Washer, water pump
89.	3853326	[2]	Flange screw, bracket to engine
