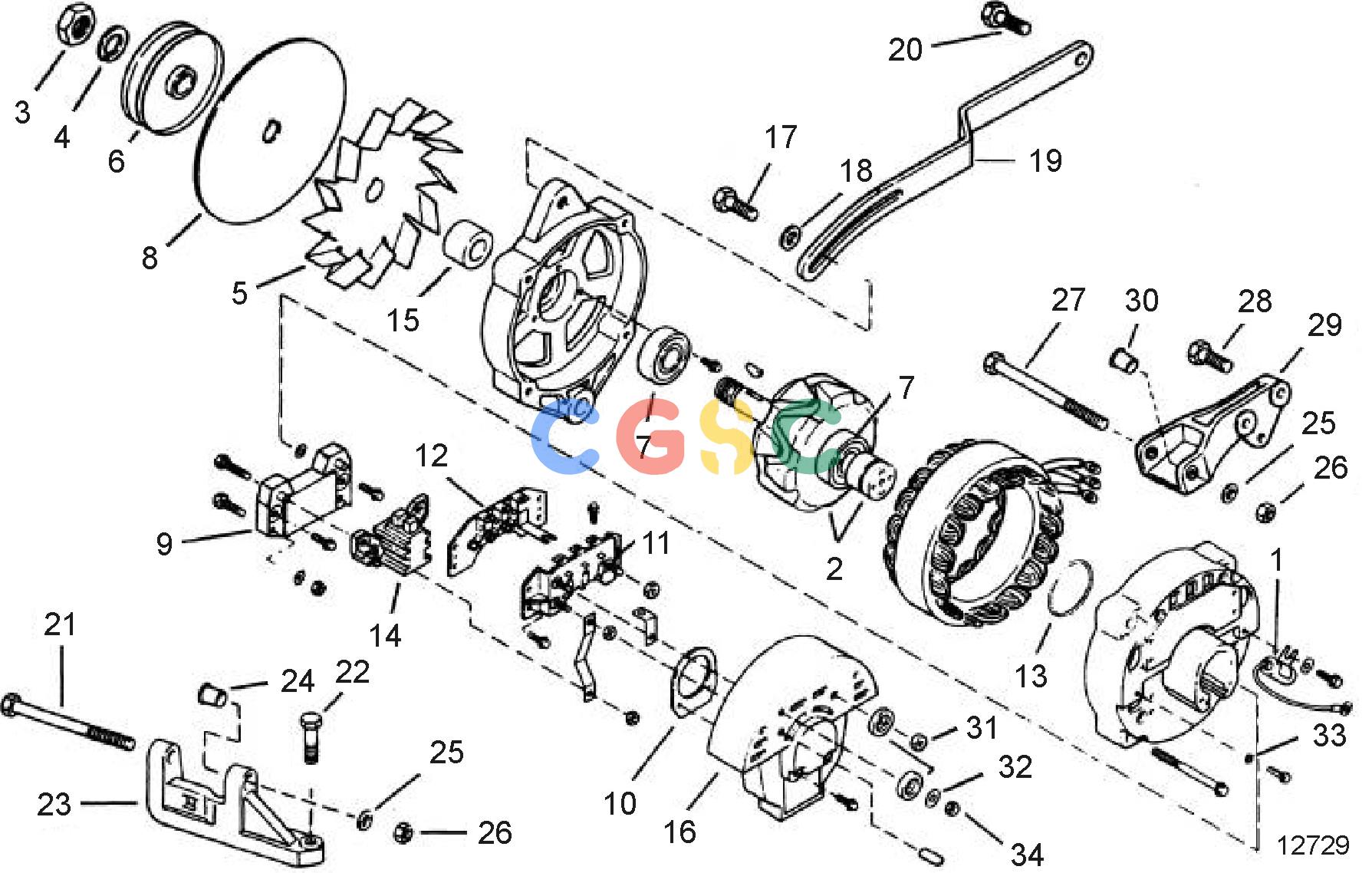

| 1. |
3853853
|
[1] |
Alternator
|
Not shown
|
| 1. |
3852636
|
[1] |
Capacitor
|
|
| 2. |
3853838
|
[1] |
Rotor
|
|
| 3. |
3852630
|
[1] |
Nut, pulley
|
|
| 4. |
3852625
|
[1] |
Washer, pulley
|
|
| 5. |
3852645
|
[1] |
Fan
|
|
| 6. |
3852644
|
[1] |
Pulley
|
|
| 7. |
3852643
|
[2] |
Bearing, front & rear
|
|
| 8. |
3853881
|
[1] |
Baffle
|
|
| 9. |
3853833
|
[1] |
Governor, voltage
|
|
| 10. |
3852642
|
[1] |
Retainer, rear bearing
|
|
| 11. |
3852641
|
[1] |
Diode
|
|
| 12. |
3853836
|
[1] |
Rectifier, bridge
|
|
| 13. |
3852637
|
[1] |
Gasket
|
|
| 14. |
3853835
|
[1] |
Brush
|
|
| 15. |
3852639
|
[1] |
Spacer, fan
|
|
| 16. |
3853834
|
[1] |
Cap
|
|
| 17. |
3853396
|
[1] |
Flange screw, alternator brace to alternator
|
|
| 18. |
3852054
|
[1] |
Washer, brace to alternator
|
|
| 19. |
3853410
|
[1] |
Brace, alternator to engine
|
Manual steering
|
| 19. |
3853411
|
[1] |
Brace, alternator to thermostat HSG
|
power steering pump
|
| 20. |
3852060
|
[1] |
Screw, alternator brace to water pump
|
Manual steering
|
| 20. |
3853399
|
[1] |
Flange screw, alternator brace to therm. hsg
|
power steering pump
|
| 21. |
3853388
|
[1] |
Flange screw, alternator to bracket
|
Manual steering
|
| 22. |
3853326
|
[2] |
Flange screw, alternator bracket mounting
|
Manual steering
|
| 23. |
3854068
|
[1] |
Bracket, alternator to engine block, port
|
Manual steering
|
| 23. |
3854089
|
[1] |
Bracket
|
power steering pump
|
| 24. |
3852969
|
[1] |
Bushing, bracket alternator, manual steering
|
|
| 25. |
3852058
|
[1] |
Washer, alternator to bracket
|
Rear
|
| 26. |
3852051
|
[1] |
Nut, alternator to bracket
|
|
| 27. |
3853367
|
[1] |
Flange screw, alternator to bracket
|
power steering pump
|
| 28. |
3853393
|
[2] |
Flange screw, alternator bracket to manifold
|
power steering pump
|
| 29. |
3854089
|
[1] |
Bracket, alternator mounting
|
power steering pump
|
| 30. |
3852740
|
[1] |
Bushing, alternator bracket
|
|
| 31. |
3852099
|
[1] |
Nut, alternator output terminal
|
|
| 32. |
3852001
|
[1] |
Tab washer, alternator, ac tap
|
|
| 33. |
3852520
|
[1] |
Washer, ground terminal, alternator
|
|
| 34. |
3852185
|
[1] |
Nut, alternator ac tap
|
|
