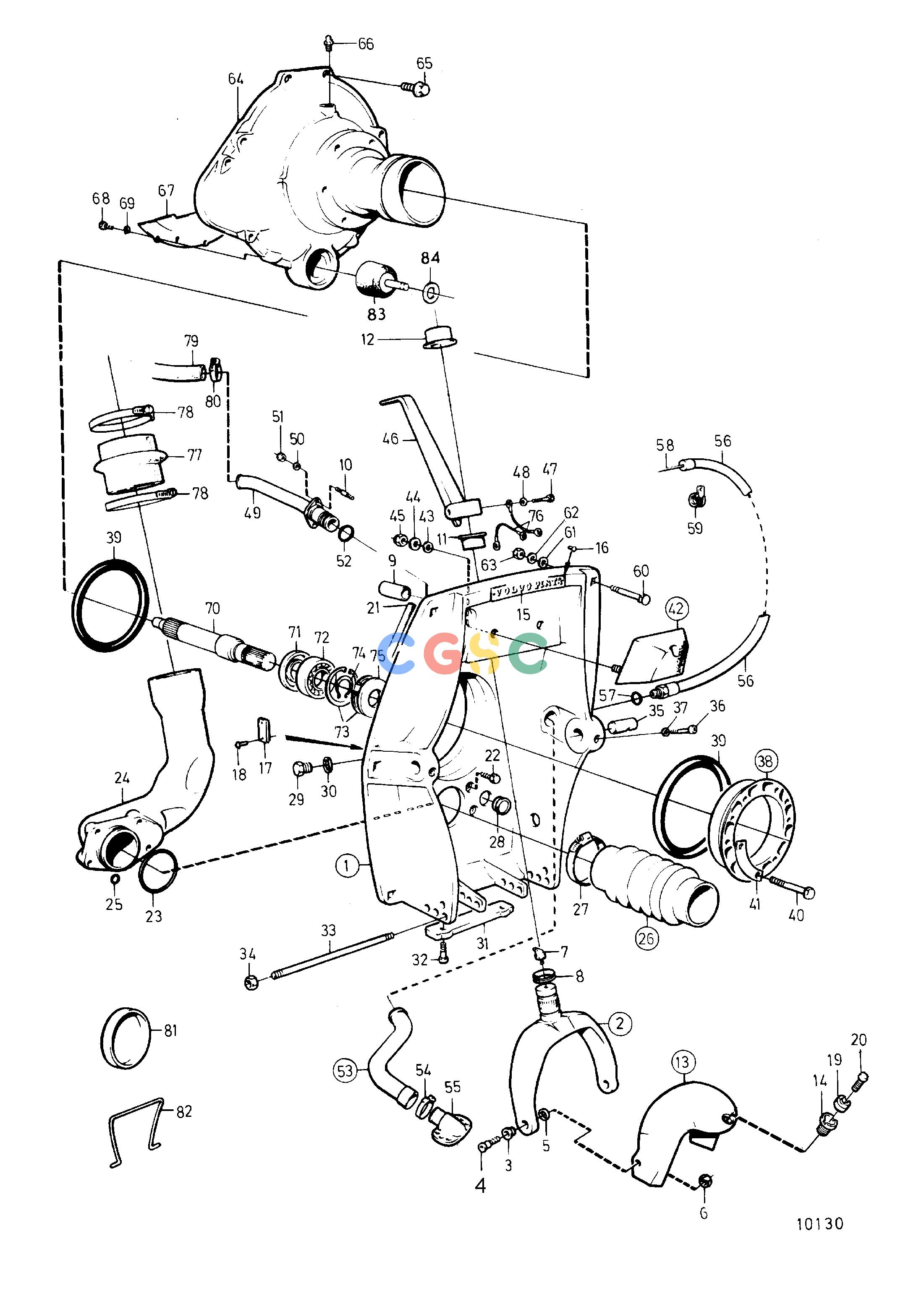

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 876146 | [1] | Shield kit | |
| 2. | 854077 | [1] | Steering yoke | |
| 3. | 814640 | [2] | Bushing | |
| 4. | 897798 | [2] | Shoulder screw | |
| 5. | 897244 | [2] | Washer | |
| 6. | 943152 | [2] | Nut | |
| 7. | 914169 | [1] | Lubricating nipple | |
| 8. | 839195 | [1] | Ring | |
| 9. | 850653 | [1] | Bushing | |
| 10. | 941872 | [2] | Stud | (853496) |
| 11. | 853863 | [1] | Bushing | Lower |
| 12. | 853864 | [1] | Bushing | Upper |
| 13. | ||||
| 14. | 839698 | [1] | Bushing | For M18 bolts |
| 15. | 854224 | [1] | Sign | |
| 16. | 804269 | [2] | Drive screw | |
| 17. | 853706 | [1] | Type plate | |
| 18. | 804269 | [2] | Drive screw | (851263) |
| 19. | 852705 | [1] | Pivot pin | See group 4C |
| 20. | 941807 | [2] | Hex. socket screw | See group 4C |
| 21. | 897726 | [1] | Sealing strip | |
| 22. | 959967 | [4] | Hexagon screw | |
| 23. | 925256 | [1] | O-ring | |
| 24. | 852972 | [1] | Exhaust grommet | |
| 25. | 925055 | [4] | O-ring | |
| 26. | 875848 | [1] | Bellows kit | |
| 26. | ||||
| 27. | 853012 | [2] | Hose clamp | |
| 28. | 814473 | [1] | Closure | |
| 29. | 897744 | [1] | Plug | |
| 30. | 897745 | [1] | Gasket | |
| 31. | 832598 | [1] | Zinc anode | |
| 32. | 959438 | [2] | Hex. socket screw | |
| 33. | 814301 | [1] | Adjusting pin | |
| 34. | 814357 | [2] | Flange nut | |
| 35. | 853175 | [2] | Pivot pin | |
| 36. | 941873 | [2] | Hex. socket screw | |
| 37. | 941670 | [2] | Washer | |
| 38. | 854315 | [1] | Clamping ring kit | |
| 39. | 804190 | [2] | Rubber ring | |
| 40. | 191844 | [6] | Hexagon screw | |
| 41. | 806624 | [3] | Striker plate | |
| 42. | 875531 | [1] | Rubber cushion | |
| 43. | 832565 | [2] | Gasket | |
| 44. | 940097 | [2] | Washer | |
| 45. | 950364 | [2] | Lock nut | |
| 46. | 839459 | [1] | Steering arm | |
| 47. | 955537 | [1] | Hexagon screw | |
| 48. | 940097 | [1] | Washer | |
| 49. | 850729 | [1] | Water inlet | |
| 50. | 955893 | [2] | Washer | |
| 51. | 950352 | [2] | Lock nut | |
| 52. | 925063 | [1] | O-ring | |
| 53. | 875822 | [1] | Hose kit | |
| 53. | ||||
| 54. | 853548 | [2] | Hose clamp | |
| 55. | 854031 | [1] | Hose connection | See group 4C |
| 56. | 839091 | [1] | Protecting hose | |
| 57. | 897745 | [1] | Gasket | |
| 58. | See group 9 | |||
| 59. | 952635 | [1] | Clamp | |
| 60. | 943426 | [6] | Screw | |
| 61. | 850418 | [6] | O-ring | |
| 62. | 190878 | [6] | Washer | |
| 63. | 940176 | [6] | Hexagon nut | |
| 64. | 855610 | [1] | Flywheel housing | |
| 65. | 965192 | [4] | Flange screw | |
| 66. | 914167 | [1] | Lubricating nipple | |
| 67. | 834568 | [1] | Cover plate | |
| 68. | 946440 | [3] | Flange screw | |
| 69. | 941907 | [3] | Spring washer | |
| 70. | 855759 | [1] | Spindle | |
| 71. | 946242 | [1] | Sealing ring | |
| 72. | 11013 | [1] | Ball bearing | |
| 73. | 914533 | [2] | Snap ring | |
| 74. | 914462 | [1] | Snap ring | |
| 75. | 958860 | [1] | Sealing ring | |
| 76. | ||||
| 77. | 834871 | [1] | Exhaust hose | See group 2B |
| 78. | 853012 | [2] | Hose clamp | (943483) |
| 79. | 941799 | [1] | Hose | L=300mm see group 2B |
| 80. | 961669 | [2] | Hose clamp | |
| 81. | 944738 | [1] | Plug | For transport. |
| 82. | 897824 | [1] | Transport lock | For transport. |
| 83. | 804210 | [1] | Rubber cushion | |
| 84. | 64432 | [1] | Washer |
