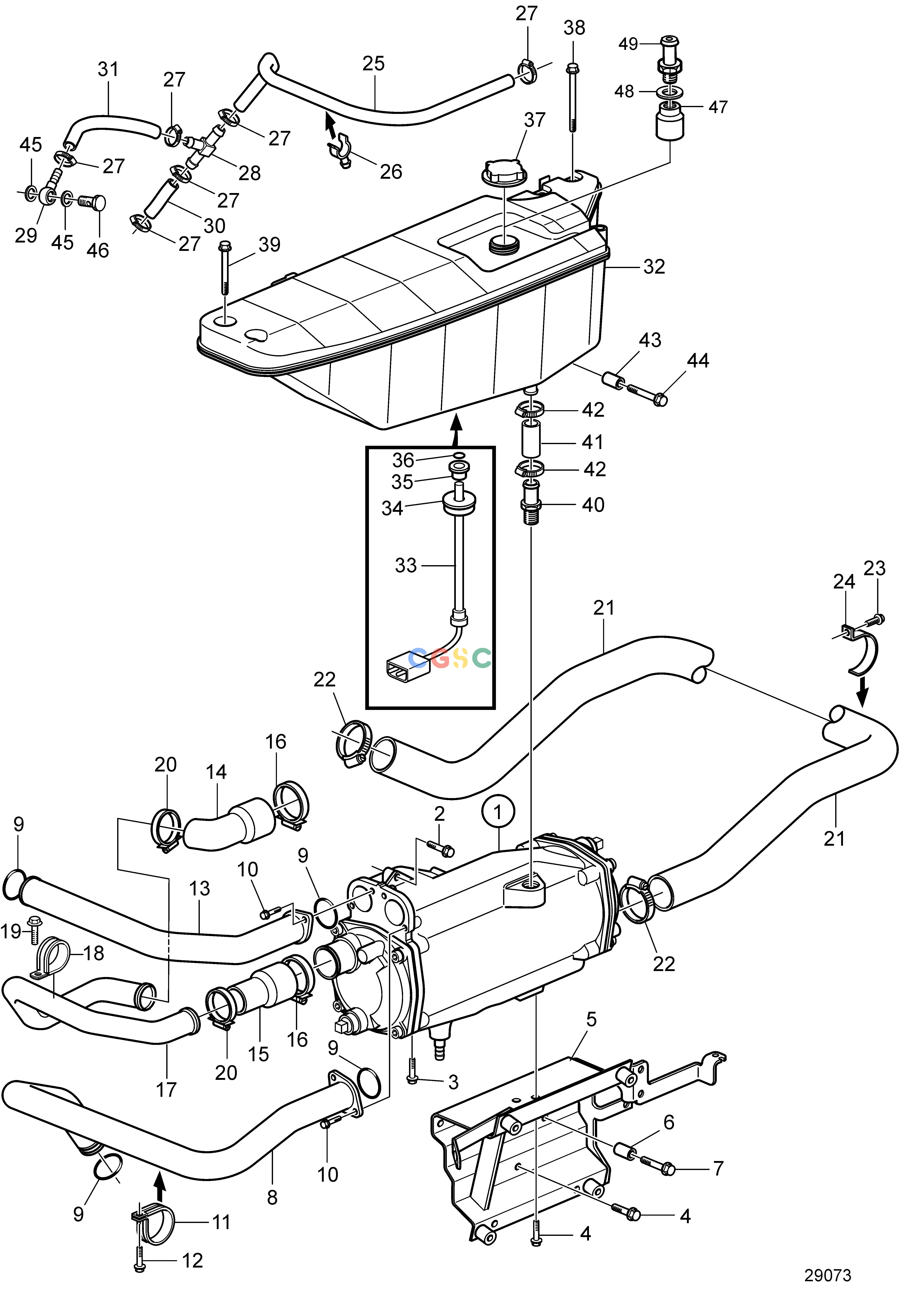

| 1. |
|
|
|
|
| 2. |
946671
|
[1] |
Flange screw
|
|
| 3. |
945444
|
[2] |
Flange screw
|
|
| 4. |
946173
|
[3] |
Flange screw
|
|
| 5. |
21134285
|
[1] |
Anchorage
|
|
| 6. |
847240
|
[3] |
Spacer sleeve
|
|
| 7. |
947760
|
[3] |
Flange screw
|
|
| 8. |
3836308
|
[1] |
Coolant pipe
|
|
| 9. |
864491
|
[4] |
Gasket
|
|
| 10. |
946173
|
[4] |
Flange screw
|
|
| 11. |
947457
|
[2] |
Clamp
|
|
| 12. |
967949
|
[4] |
Flange screw
|
|
| 13. |
3836309
|
[1] |
Coolant pipe
|
|
| 14. |
3812324
|
[1] |
Rubber hose
|
|
| 15. |
3837438
|
[1] |
Collar
|
|
| 16. |
961672
|
[2] |
Hose clamp
|
|
| 17. |
3807339
|
[1] |
Pipe
|
SN-1009163096
|
| 17. |
3849451
|
[1] |
Pipe
|
SN1009163096-
|
| 18. |
947457
|
[2] |
Clamp
|
|
| 19. |
967949
|
[2] |
Flange screw
|
|
| 20. |
961671
|
[2] |
Hose clamp
|
|
| 21. |
3817427
|
[1] |
Hose
|
|
| 22. |
961672
|
[2] |
Hose clamp
|
|
| 23. |
946544
|
[2] |
Flange screw
|
|
| 24. |
948560
|
[2] |
Clamp
|
|
| 25. |
943367
|
[1] |
Rubber hose
|
L=720mm
|
| 26. |
9135343
|
[2] |
Retainer
|
|
| 27. |
961664
|
[6] |
Hose clamp
|
|
| 28. |
984445
|
[1] |
T-nipple
|
|
| 29. |
20459906
|
[1] |
Banjo nipple
|
|
| 30. |
943367
|
[1] |
Rubber hose
|
L=115mm
|
| 31. |
943367
|
[1] |
Rubber hose
|
L=170mm
|
| 32. |
3587686
|
[1] |
Expansion tank
|
Replaced by 3885197
|
| 32. |
3885197
|
[1] |
Expansion tank
|
Replaced by 21505289
|
| 32. |
21505289
|
[1] |
Expansion tank
|
Replaced by 21920925, Replaced by 21861378
|
| 32. |
21920925
|
[1] |
Expansion tank
|
For engine with keel cooling., Conversion kit 21989777 is needed
|
| 32. |
21861378
|
[1] |
Expansion tank
|
For engine with heat exchanger, Replaced by 21920930
|
| 32. |
21920930
|
[1] |
Expansion tank
|
For engine with keel cooling.
|
| 33. |
3588990
|
[1] |
Level sensor
|
Replaced by 21505289
|
| 33. |
21416784
|
[1] |
Level sensor
|
Included in expansionstank 21505289
|
| 33. |
21872119
|
[1] |
Level sensor
|
Conversion kit 21989777 is needed
|
| 34. |
3547449
|
[1] |
Float
|
Not as spare part. Only included in expansion tank assy 3587686.
|
| 35. |
3807256
|
[1] |
Plug
|
Not as spare part. Only included in expansion tank assy 3587686.
|
| 36. |
968039
|
[1] |
Retainer
|
Not as spare part. Only included in expansion tank assy 3587686.
|
| 37. |
1674083
|
[1] |
Pressure cap
|
|
| 38. |
969225
|
[2] |
Flange screw
|
|
| 39. |
965181
|
[2] |
Flange screw
|
|
| 40. |
990410
|
[1] |
Hose nipple
|
|
| 41. |
969033
|
[1] |
Rubber hose
|
L=50mm
|
| 42. |
994559
|
[2] |
Hose clamp
|
|
| 43. |
833243
|
[1] |
Spacer sleeve
|
|
| 44. |
973924
|
[1] |
Flange screw
|
|
| 45. |
982723
|
[2] |
Gasket
|
|
| 46. |
991048
|
[1] |
Hollow screw
|
|
| 47. |
3826167
|
[1] |
Adapter
|
Only when extra expansion tank is mounted.
|
| 48. |
836169
|
[1] |
Gasket
|
Only when extra expansion tank is mounted.
|
| 49. |
943268
|
[1] |
Hose nipple
|
Only when extra expansion tank is mounted.
|
