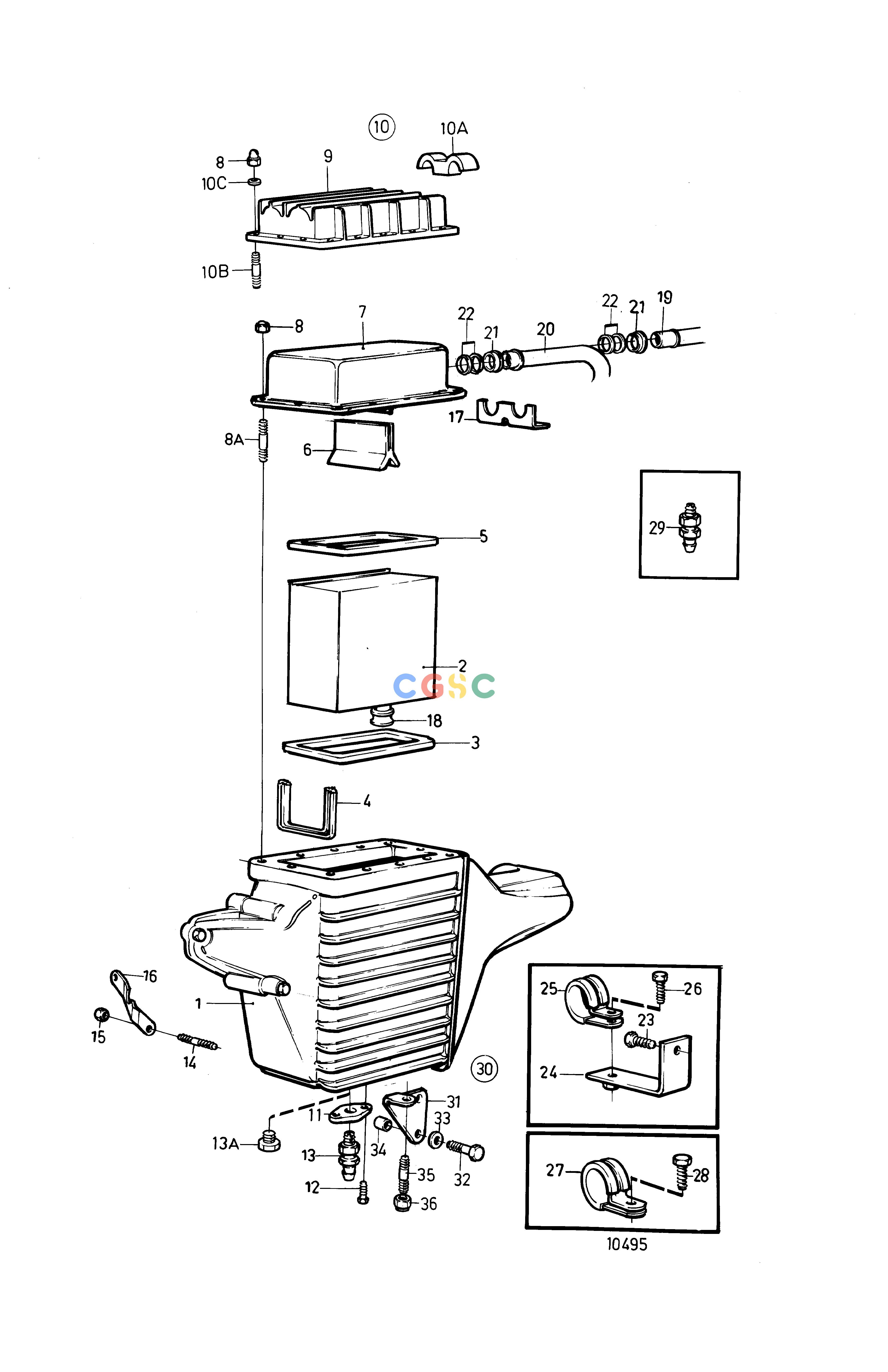

| 1. |
838823
|
[1] |
Housing, housing
|
SN-2204108354
|
| 1. |
|
|
|
Repl by 859199
|
| 1. |
859199
|
[1] |
Housing
|
Replaced by housing 859354 together with mounting kit 859593, SN2204108355-2204119999.
|
| 1. |
859354
|
[1] |
Housing
|
SN2204120000-
|
| 2. |
838718
|
[1] |
Insert
|
Repl by 858947
|
| 2. |
858947
|
[1] |
Insert
|
Repl by 859362
|
| 2. |
859362
|
[1] |
Insert
|
|
| 3. |
838720
|
[1] |
Seal
|
|
| 4. |
838831
|
[1] |
Sealing strip
|
|
| 5. |
838720
|
[1] |
Seal
|
|
| 6. |
847573
|
[1] |
Sealing strip
|
|
| 7. |
859554
|
[1] |
Cover
|
Replaced by cover 860135 and mounting kit 876293., Metal
|
| 8. |
948685
|
[12] |
Cap nut
|
|
| 8A. |
953031
|
[11] |
Stud
|
L=25mm early type
|
| 8. |
953032
|
[12] |
Stud
|
L=28mm late type
|
| 9. |
860135
|
[1] |
Cover
|
Plastic
|
| 10. |
876293
|
[1] |
Mounting kit
|
For 860135
|
| 10A. |
860133
|
[1] |
Retainer
|
For 860135
|
| 10B. |
953036
|
[11] |
Stud
|
L=38mm
|
| 10. |
975132
|
[1] |
Stud
|
L=68mm
|
| 10C. |
955893
|
[12] |
Washer
|
|
| 11. |
838830
|
[1] |
Flange
|
SN-2204108354
|
| 11. |
|
|
|
Repl by 858979
|
| 12. |
965175
|
[2] |
Flange screw
|
SN-2204108354
|
| 13. |
949918
|
[1] |
Shut-off cock
|
Early type
|
| 13A. |
192134
|
[1] |
Plug
|
Late type
|
| 14. |
953041
|
[1] |
Stud
|
|
| 15. |
945408
|
[1] |
Flange nut
|
|
| 16. |
838833
|
[1] |
Support
|
|
| 17. |
838754
|
[1] |
Bracket
|
For 859554
|
| 18. |
858979
|
[1] |
Sealing ring
|
|
| 19. |
838814
|
[1] |
Coolant pipe
|
Oil cooler-after cooler
|
| 20. |
838780
|
[1] |
Coolant pipe
|
After cooler-outlet, Productno.868422,868426,868428
|
| 20. |
838816
|
[1] |
Coolant pipe
|
After cooler-reverse gear, Productno.867965,867976,868082, Replaced by pipe 860279,860280 and mounti
|
| 20. |
860279
|
[1] |
Coolant pipe
|
(859585) see group 4A
|
| 21. |
847108
|
[2] |
Pipe retainer
|
|
| 22. |
858986
|
[4] |
Sealing ring
|
(842744)
|
| 23. |
946472
|
[1] |
Flange screw
|
|
| 24. |
838828
|
[1] |
Anchorage
|
|
| 25. |
952635
|
[2] |
Clamp
|
|
| 26. |
946544
|
[1] |
Flange screw
|
|
| 27. |
952635
|
[1] |
Clamp
|
|
| 28. |
|
|
|
See group 2A
|
| 29. |
949918
|
[1] |
Shut-off cock
|
Productno.868421,868425,868427,868431,868433,868434, For pipe 838780, Productno.868422,868426,868428
|
| 30. |
859593
|
[1] |
Mounting kit
|
|
| 31. |
858965
|
[1] |
Bracket
|
For 859354
|
| 32. |
965226
|
[2] |
Flange screw
|
|
| 33. |
955897
|
[2] |
Washer
|
Early type
|
| 34. |
912142
|
[2] |
Spacer sleeve
|
L=5mm
|
| 35. |
953041
|
[1] |
Stud
|
|
| 36. |
945408
|
[1] |
Flange nut
|
|
