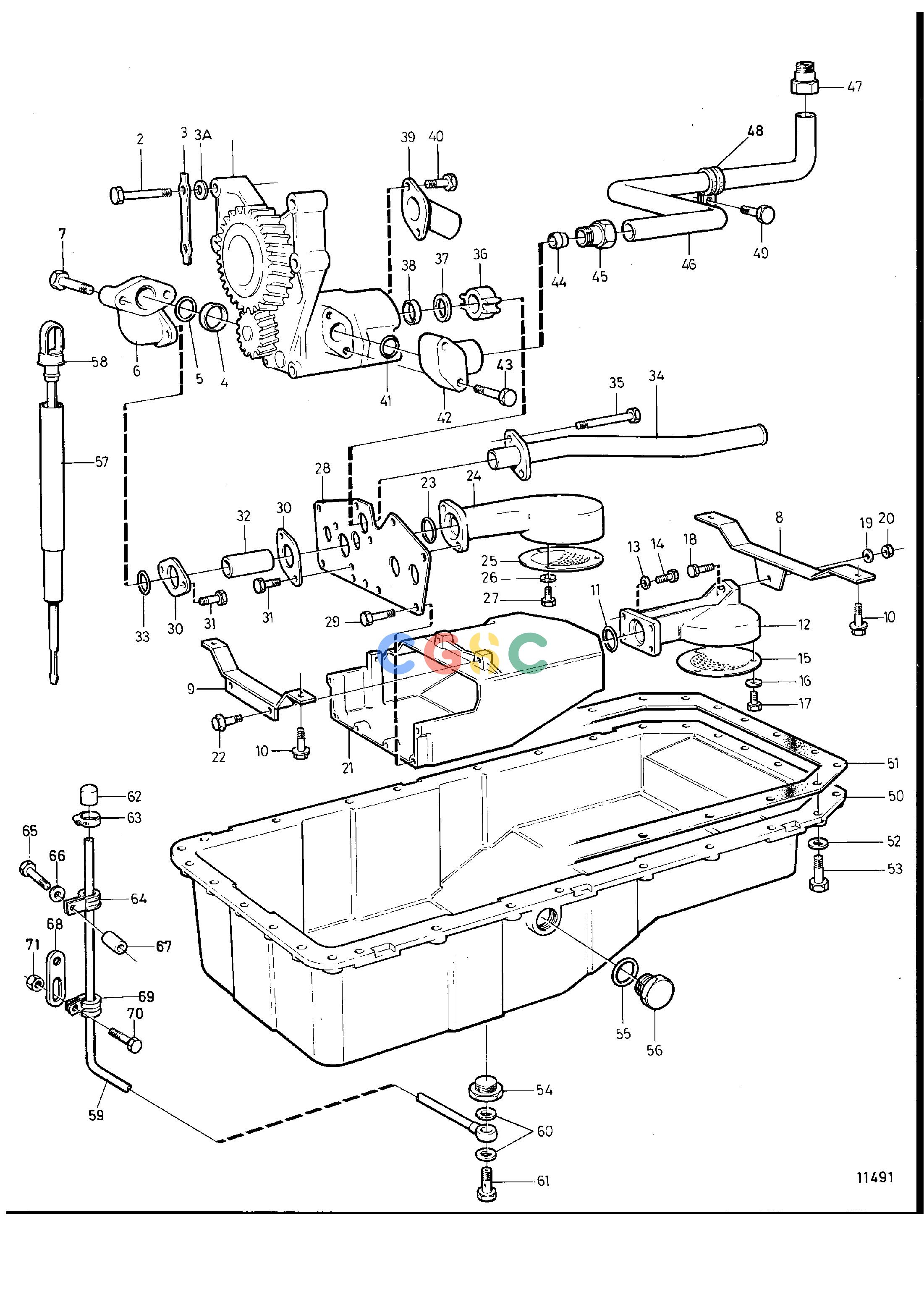

| 1. |
4778318
|
[1] |
Oil pump
|
|
| 1. |
|
|
|
|
| 2. |
955538
|
[4] |
Hexagon screw
|
|
| 3. |
190529
|
[2] |
Tab washer
|
Early type
|
| 3A. |
942336
|
[4] |
Spring washer
|
Later prod
|
| 4. |
4778328
|
[1] |
Sleeve
|
|
| 5. |
944126
|
[1] |
O-ring
|
|
| 6. |
4778327
|
[1] |
Connector
|
|
| 7. |
965179
|
[2] |
Flange screw
|
|
| 8. |
11031506
|
[1] |
Bracket
|
|
| 9. |
4778344
|
[1] |
Bracket
|
|
| 10. |
942402
|
[4] |
Flange screw
|
|
| 11. |
944126
|
[1] |
O-ring
|
|
| 12. |
4778037
|
[1] |
Strainer housing
|
|
| 13. |
955894
|
[4] |
Washer
|
|
| 14. |
940142
|
[4] |
Hexagon screw
|
|
| 15. |
4778048
|
[1] |
Strainer
|
|
| 16. |
955948
|
[3] |
Toothed washer
|
|
| 17. |
955268
|
[3] |
Hexagon screw
|
|
| 18. |
945444
|
[1] |
Flange screw
|
|
| 19. |
955894
|
[1] |
Washer
|
|
| 20. |
946036
|
[1] |
Lock nut
|
|
| 21. |
4778343
|
[1] |
Oil reservoir
|
|
| 22. |
945444
|
[2] |
Flange screw
|
|
| 23. |
944126
|
[1] |
O-ring
|
|
| 24. |
4778466
|
[1] |
Strainer housing
|
|
| 25. |
4778048
|
[1] |
Strainer
|
|
| 26. |
955948
|
[3] |
Toothed washer
|
|
| 27. |
955268
|
[3] |
Hexagon screw
|
|
| 28. |
4778040
|
[1] |
Plate
|
|
| 29. |
946440
|
[6] |
Flange screw
|
|
| 30. |
4778330
|
[2] |
Flange
|
|
| 31. |
945444
|
[4] |
Flange screw
|
|
| 32. |
4778042
|
[1] |
Pipe
|
|
| 33. |
944126
|
[1] |
O-ring
|
|
| 34. |
4778333
|
[1] |
Suction pipe
|
|
| 35. |
4778436
|
[2] |
Screw
|
|
| 36. |
4778332
|
[1] |
Spacer
|
|
| 37. |
4778331
|
[1] |
Spacer
|
|
| 38. |
470383
|
[1] |
Sealing ring
|
|
| 39. |
4778425
|
[1] |
Pipe
|
|
| 40. |
966688
|
[2] |
Hexagon screw
|
|
| 41. |
949657
|
[1] |
O-ring
|
|
| 42. |
4778338
|
[1] |
Flange
|
|
| 43. |
965216
|
[2] |
Flange screw
|
|
| 44. |
956973
|
[1] |
Ferrule
|
|
| 45. |
470377
|
[1] |
Fitting
|
|
| 46. |
4778340
|
[1] |
Pipe
|
|
| 47. |
466908
|
[1] |
Fitting
|
|
| 48. |
1545432
|
[1] |
Attaching clamp
|
|
| 49. |
946440
|
[1] |
Flange screw
|
|
| 50. |
4778350
|
[1] |
Oil sump
|
|
| 51. |
470745
|
[1] |
Gasket
|
|
| 52. |
941907
|
[30] |
Spring washer
|
|
| 53. |
940186
|
[30] |
Hexagon screw
|
|
| 54. |
864168
|
[1] |
Plug
|
|
| 55. |
925064
|
[1] |
O-ring
|
|
| 56. |
960638
|
[1] |
Plug
|
|
| 57. |
848700
|
[1] |
Pipe
|
|
| 58. |
4772191
|
[1] |
Dipstick
|
|
| 59. |
864167
|
[1] |
Suction pipe
|
For electrical oil drain pump
|
| 60. |
11996
|
[2] |
Gasket
|
|
| 61. |
190713
|
[1] |
Hollow screw
|
|
| 62. |
842235
|
[1] |
Cap
|
|
| 63. |
943471
|
[1] |
Hose clamp
|
|
| 64. |
949746
|
[1] |
Clamp
|
For oil drain pipe mounted on the right side.
|
| 65. |
940161
|
[1] |
Hexagon screw
|
For oil drain pipe mounted on the right side.
|
| 66. |
941907
|
[1] |
Spring washer
|
For oil drain pipe mounted on the right side.
|
| 67. |
846425
|
[1] |
Spacer sleeve
|
For oil drain pipe mounted on the right side.
|
| 68. |
965536
|
[1] |
Bracket
|
For oil drain pipe mounted on left side.
|
| 69. |
952627
|
[1] |
Clamp
|
For oil drain pipe mounted on left side.
|
| 70. |
946544
|
[1] |
Flange screw
|
For oil drain pipe mounted on left side.
|
| 71. |
945407
|
[1] |
Flange nut
|
For oil drain pipe mounted on left side.
|
