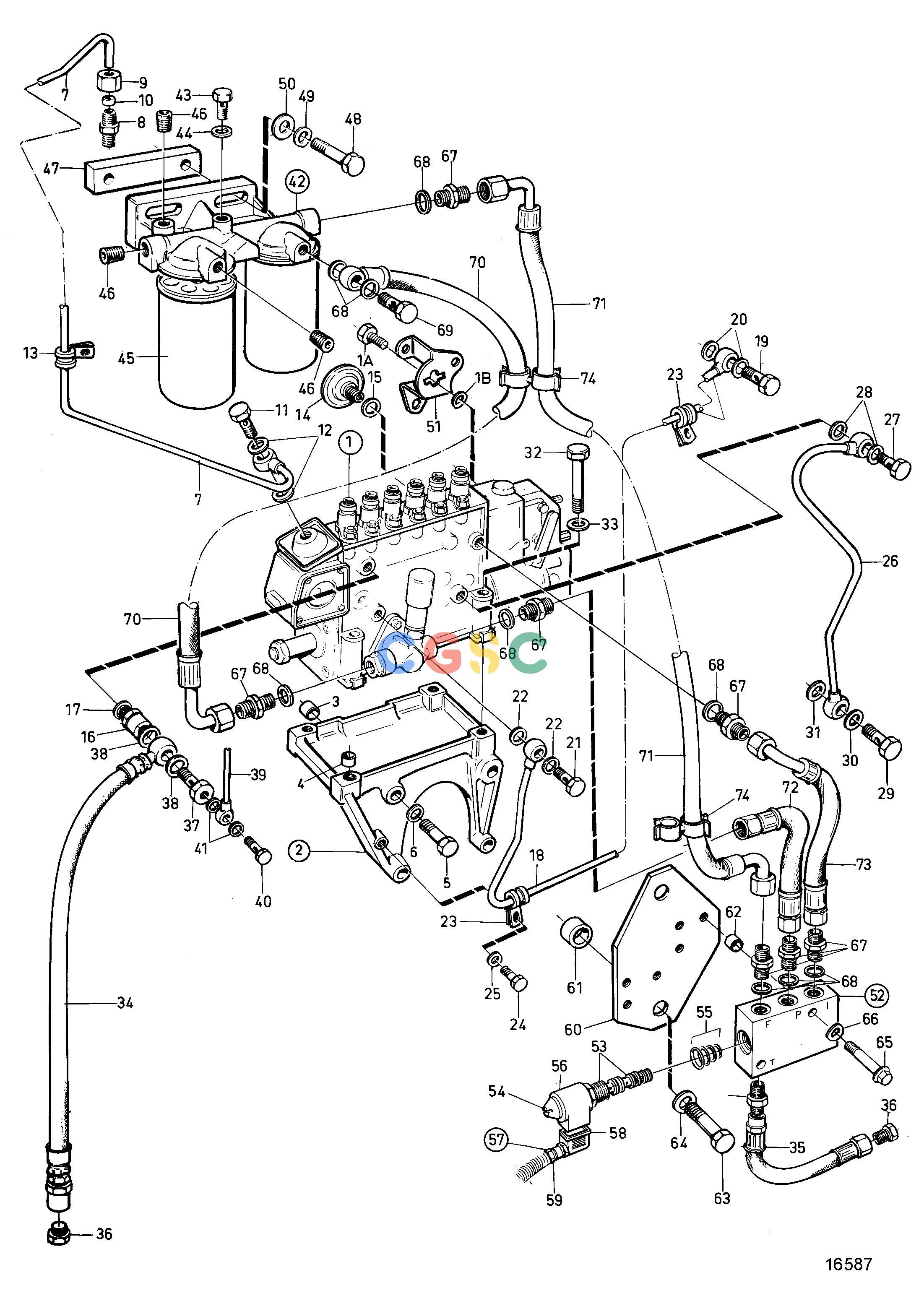

| 1. |
3803787
|
[1] |
Injection pump
|
|
| 1. |
|
|
|
|
| 1A. |
955270
|
[1] |
Hexagon screw
|
|
| 1B. |
941906
|
[1] |
Spring washer
|
|
| 2. |
478647
|
[1] |
Bracket
|
|
| 3. |
423161
|
[2] |
Guide sleeve
|
|
| 4. |
417588
|
[1] |
Guide sleeve
|
|
| 5. |
955566
|
[2] |
Hexagon screw
|
|
| 6. |
940280
|
[2] |
Spring washer
|
|
| 7. |
864368
|
[1] |
Tube
|
|
| 8. |
954379
|
[1] |
Nipple, induction manifold
|
|
| 9. |
954357
|
[1] |
Fitting nut
|
|
| 10. |
954365
|
[1] |
Fitting
|
|
| 11. |
969299
|
[1] |
Hollow screw
|
|
| 12. |
11994
|
[2] |
Gasket
|
|
| 13. |
942400
|
[2] |
Clamp
|
|
| 14. |
477173
|
[1] |
Pressure equalizer
|
|
| 15. |
969011
|
[1] |
Gasket
|
|
| 16. |
479775
|
[1] |
Overflow valve
|
For pump with helicoil, M14
|
| 16. |
3825154
|
[1] |
Overflow valve
|
For pump without helicoil, M16
|
| 17. |
15304
|
[1] |
Gasket
|
|
| 18. |
7746400_066
|
|
Oil feed pipe, cylinder block
|
|
| 18. |
7746400_067
|
|
Oil feed pipe, cylinder block
|
|
| 19. |
7746400_066
|
|
Hollow screw
|
|
| 19. |
7746400_067
|
|
Hollow screw
|
|
| 20. |
7746400_066
|
|
Gasket
|
|
| 20. |
7746400_067
|
|
Gasket
|
|
| 21. |
48634
|
[1] |
Hollow screw
|
|
| 22. |
947281
|
[2] |
Gasket
|
|
| 23. |
952623
|
[2] |
Clamp
|
|
| 24. |
955512
|
[1] |
Hexagon screw
|
|
| 25. |
949607
|
[1] |
Spring washer
|
|
| 26. |
422246
|
[1] |
Return pipe, oil drain
|
|
| 27. |
25167
|
[1] |
Hollow screw
|
|
| 28. |
969011
|
[2] |
Gasket
|
|
| 29. |
942007
|
[1] |
Hollow screw, cylinder block
|
|
| 30. |
11998
|
[1] |
Gasket
|
|
| 31. |
942703
|
[1] |
Gasket
|
|
| 32. |
940156
|
[4] |
Hexagon screw
|
|
| 33. |
190509
|
[4] |
Washer
|
|
| 34. |
3830312
|
[1] |
Hose
|
L=710mm
|
| 35. |
3830309
|
[1] |
Hose
|
|
| 36. |
22753
|
[2] |
Nipple
|
|
| 37. |
16496
|
[1] |
Hollow screw
|
|
| 38. |
969011
|
[2] |
Gasket
|
|
| 39. |
7746400_060
|
|
Leak-off pipe
|
|
| 40. |
7746400_060
|
|
Hollow screw
|
|
| 41. |
7746400_060
|
|
Gasket
|
|
| 42. |
8194541
|
[1] |
Fuel filter housing
|
|
| 43. |
20547976
|
[1] |
Protecting cover
|
|
| 44. |
20548012
|
[1] |
Faucet
|
|
| 45. |
3825133
|
[2] |
Fuel filter
|
|
| 46. |
968062
|
[3] |
Plug
|
|
| 47. |
846738
|
[1] |
Spacer plate
|
|
| 48. |
955536
|
[2] |
Hexagon screw
|
|
| 49. |
942336
|
[2] |
Spring washer
|
|
| 50. |
960142
|
[2] |
Washer
|
|
| 51. |
848677
|
[1] |
Intermediate lever, stop solenoid
|
|
| 52. |
3828983
|
[1] |
Fuel valve
|
|
| 53. |
|
|
|
|
| 54. |
|
|
|
|
| 55. |
3828981
|
[1] |
Gasket kit
|
|
| 56. |
3825240
|
[1] |
Magnet
|
|
| 57. |
873631
|
[1] |
Cable harness
|
|
| 58. |
|
|
|
|
| 59. |
|
|
|
|
| 60. |
3826145
|
[1] |
Bracket
|
(3825601)
|
| 61. |
1678297
|
[2] |
Spacer sleeve
|
|
| 62. |
843075
|
[2] |
Spacer sleeve
|
|
| 63. |
955570
|
[2] |
Hexagon screw
|
|
| 64. |
940280
|
[2] |
Spring washer
|
|
| 65. |
973924
|
[2] |
Flange screw
|
|
| 66. |
976944
|
[2] |
Washer
|
|
| 67. |
941754
|
[7] |
Nipple
|
|
| 68. |
969011
|
[9] |
Gasket
|
|
| 69. |
25167
|
[1] |
Hollow screw
|
|
| 70. |
3830307
|
[1] |
Hose
|
L=460mm
|
| 71. |
3830308
|
[1] |
Hose
|
L=660mm
|
| 72. |
3830304
|
[1] |
Hose
|
L=175mm
|
| 73. |
3830310
|
[1] |
Fuel hose
|
L=260mm
|
| 74. |
9205207
|
[3] |
Retainer
|
|
