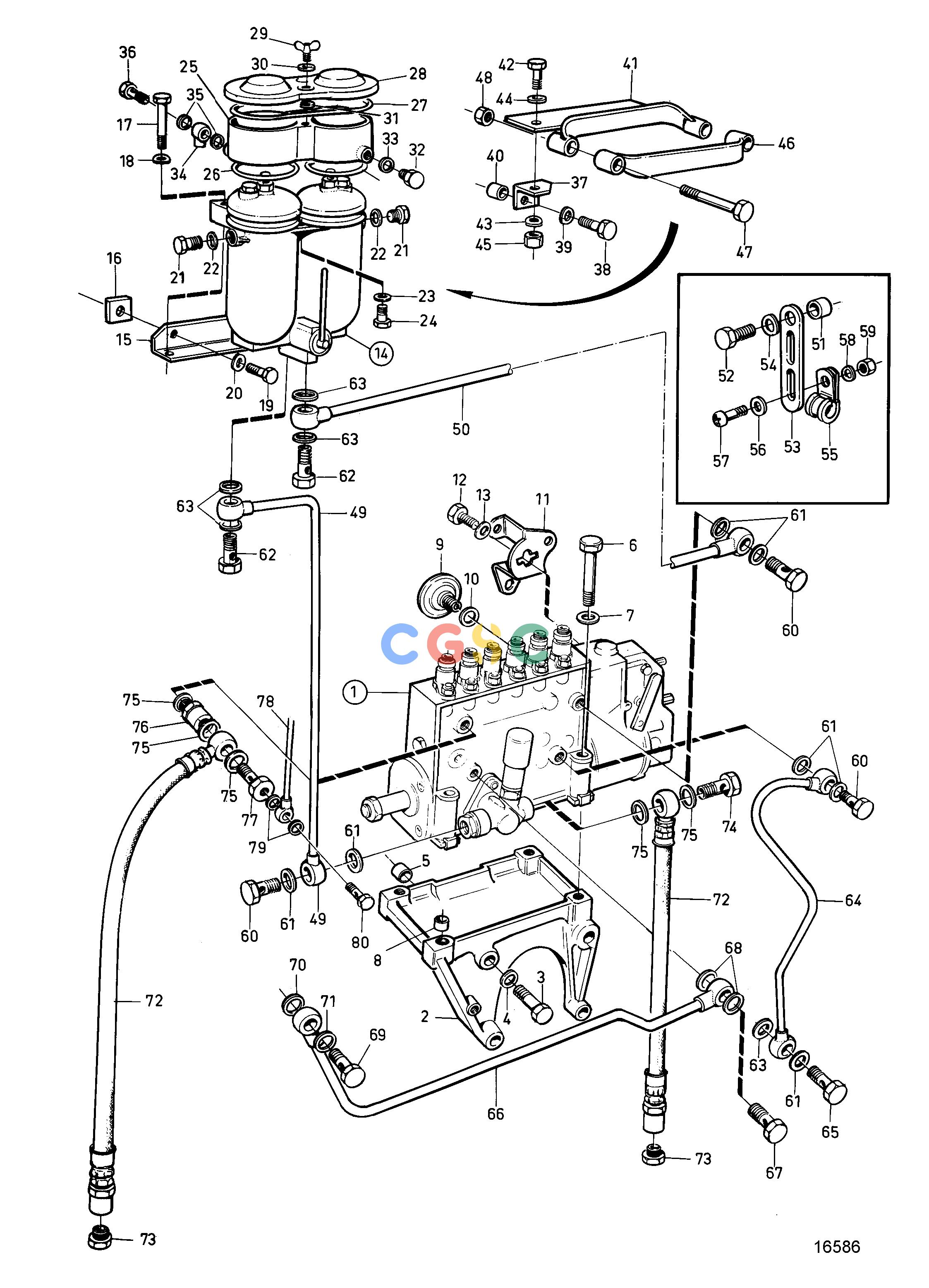

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 849194 | [1] | Injection pump | RSV governor |
| 1. | 3803765 | [1] | Injection pump | RSV governor |
| 1. | ||||
| 1. | 847768 | [1] | Injection pump | Actuator AGB 250A-3 |
| 1. | 866205 | [1] | Injection pump | Actuator GAC. ACB 275H |
| 1. | 3803778 | [1] | Injection pump | Actuator GAC. ACB 275H |
| 2. | 478647 | [1] | Bracket | |
| 3. | 955566 | [4] | Hexagon screw | |
| 4. | 940280 | [4] | Spring washer | |
| 5. | 423161 | [2] | Guide sleeve | |
| 6. | 940156 | [4] | Hexagon screw | |
| 7. | 190509 | [4] | Washer | |
| 8. | 417588 | [1] | Guide sleeve | |
| 9. | 477173 | [1] | Pressure equalizer | |
| 10. | 969011 | [1] | Gasket | |
| 11. | 848677 | [1] | Intermediate lever | |
| 12. | 955270 | [1] | Hexagon screw | |
| 13. | 941906 | [1] | Spring washer | |
| 14. | 243405 | [1] | Fuel filter kit | |
| 14. | ||||
| 15. | 845319 | [1] | Bracket | |
| 16. | 846738 | [1] | Spacer plate | |
| 17. | 940134 | [2] | Hexagon screw | |
| 18. | 941909 | [2] | Spring washer | |
| 19. | 955535 | [2] | Hexagon screw | |
| 20. | 942336 | [2] | Spring washer | |
| 21. | 969011 | [2] | Gasket | |
| 22. | 960630 | [2] | Plug | |
| 23. | 959223 | [1] | Hex. socket screw | L=30mm |
| 23. | 959227 | [1] | Hex. socket screw | L=50mm |
| 24. | 941907 | [2] | Spring washer | |
| 25. | 846457 | [1] | Reservoir | |
| 26. | 846458 | [2] | Sealing ring | |
| 27. | 846460 | [1] | Sealing ring | |
| 28. | 846459 | [1] | Cap | |
| 29. | 846461 | [1] | Wing screw | |
| 30. | 947620 | [1] | Gasket | |
| 31. | 951665 | [1] | E-circlip | |
| 32. | 960630 | [1] | Plug | |
| 33. | 969011 | [1] | Gasket | |
| 34. | 25168 | [1] | Banjo nipple | |
| 35. | 969011 | [2] | Gasket | |
| 36. | 25167 | [1] | Hollow screw | |
| 37. | 862745 | [1] | Bracket | |
| 38. | 959798 | [1] | Hexagon screw | |
| 39. | 942336 | [1] | Spring washer | |
| 40. | 823575 | [1] | Spacer sleeve | |
| 41. | 862709 | [1] | Support plate | |
| 42. | 940115 | [1] | Hexagon screw | |
| 43. | 942336 | [1] | Spring washer | |
| 44. | 960142 | [1] | Washer | |
| 45. | 955827 | [1] | Hexagon nut | |
| 46. | 862708 | [1] | Clamp | |
| 47. | 955538 | [2] | Hexagon screw | |
| 48. | 950354 | [2] | Lock nut | |
| 49. | 847028 | [1] | Fuel pipe | |
| 50. | 847029 | [1] | Fuel pipe | |
| 51. | 847396 | [1] | Spacer sleeve | |
| 52. | 959798 | [1] | Hexagon screw | |
| 53. | 965541 | [1] | Bracket | |
| 54. | 942336 | [1] | Spring washer | |
| 55. | 952625 | [1] | Clamp | |
| 56. | 955893 | [1] | Washer | |
| 57. | 950047 | [1] | Cross recessed screw | |
| 58. | 949607 | [1] | Spring washer | |
| 59. | 955825 | [1] | Hexagon nut | |
| 60. | 25167 | [3] | Hollow screw | |
| 61. | 969011 | [7] | Gasket | |
| 62. | 26013 | [2] | Hollow screw | |
| 63. | 947624 | [5] | Gasket | |
| 64. | 422246 | [1] | Return pipe, oil drain | |
| 65. | 942007 | [1] | Hollow screw | |
| 66. | 422245 | [1] | Oil feed pipe | |
| 67. | 48634 | [1] | Hollow screw | |
| 68. | 947281 | [2] | Gasket | |
| 69. | 837709 | [1] | Hollow screw | |
| 70. | 18666 | [1] | Gasket | |
| 71. | 11994 | [1] | Gasket | |
| 72. | 3830312 | [2] | Hose | |
| 73. | 22753 | [2] | Nipple | |
| 74. | 25167 | [1] | Hollow screw | |
| 75. | 969011 | [5] | Gasket | |
| 76. | 479775 | [1] | Overflow valve | For pump with helicoil, M14 |
| 76. | 3825154 | [1] | Overflow valve | For pump without helicoil, M16 |
| 77. | 16496 | [1] | Hollow screw | |
| 78. | 846805 | [1] | Leak-off pipe | |
| 79. | 946729 | [2] | Gasket | |
| 80. | 74033 | [1] | Hollow screw |
