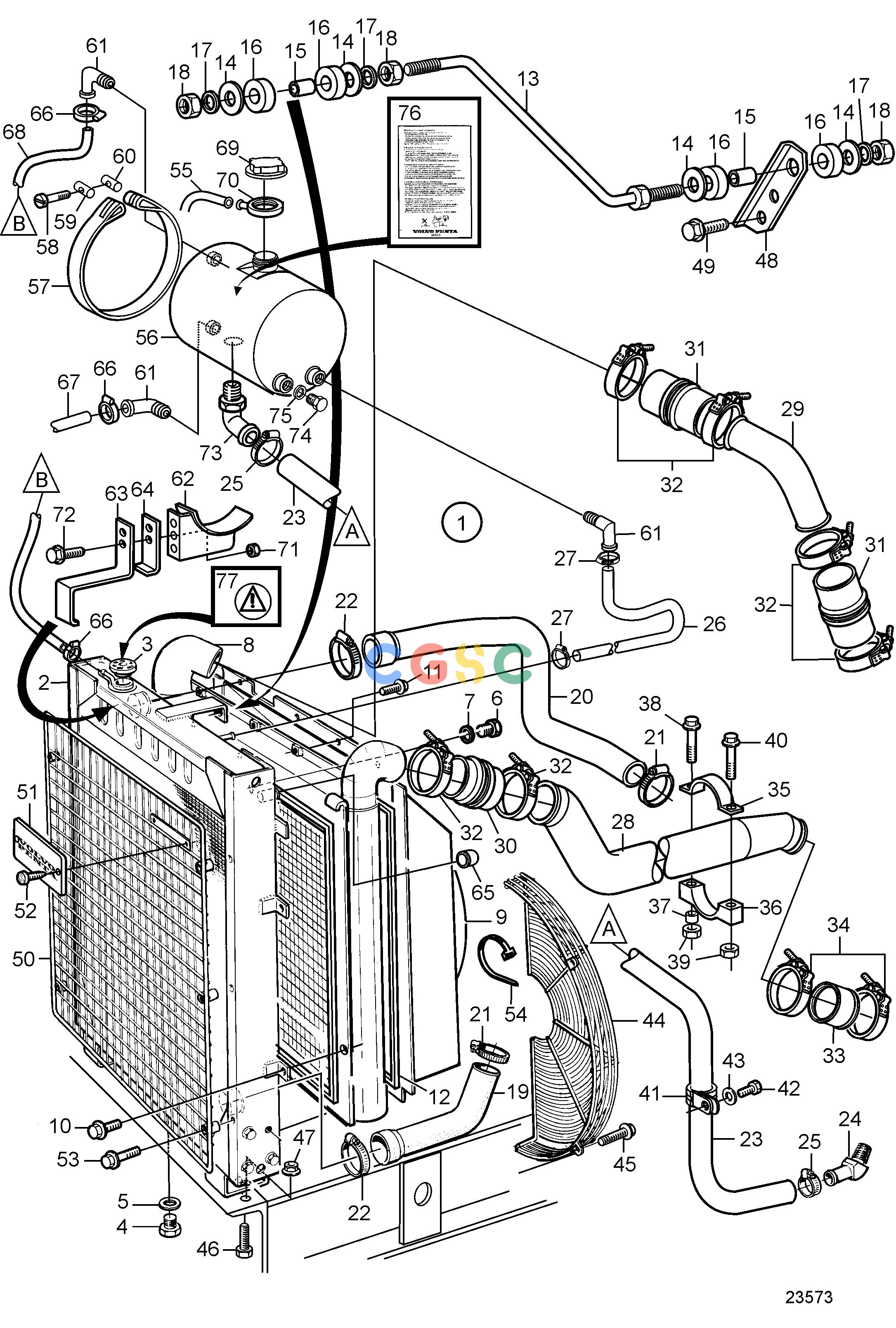

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3827045 | [1] | Radiator | |
| 2. | 866092 | [1] | Radiator | |
| 3. | 866095 | [1] | Pressure cap | |
| 4. | 960630 | [1] | Plug | |
| 5. | 969011 | [1] | Gasket | |
| 6. | 947660 | [1] | Plug | |
| 7. | 11994 | [1] | Gasket | |
| 8. | 3827336 | [1] | Charge air cooler | |
| 9. | 3827337 | [1] | Fan shroud | |
| 10. | 946173 | [4] | Flange screw | |
| 11. | 967949 | [8] | Flange screw | |
| 12. | 3827816 | [1] | Sealing strip | L=5800mm |
| 12. | 3827817 | [1] | Sealing strip | L=1600mm |
| 13. | 3827047 | [1] | Stay | |
| 14. | 191940 | [4] | Washer | |
| 15. | 252202 | [2] | Spacer sleeve | |
| 16. | 866857 | [4] | Rubber bushing | |
| 17. | 941912 | [3] | Spring washer | |
| 18. | 955793 | [3] | Hexagon nut | |
| 19. | 3827049 | [1] | Radiator hose | |
| 20. | 3827048 | [1] | Radiator hose | |
| 21. | 943479 | [2] | Hose clamp | |
| 22. | 943480 | [2] | Hose clamp | |
| 23. | 944386 | [1] | Rubber hose | L=1150mm |
| 24. | 942649 | [1] | Elbow nipple | |
| 25. | 994560 | [2] | Hose clamp | |
| 26. | 943366 | [1] | Rubber hose, air venting | |
| 27. | 994556 | [2] | Hose clamp | |
| 28. | 3827033 | [1] | Charge air pipe | |
| 29. | 3827035 | [1] | Charge air pipe | |
| 30. | 865127 | [1] | Charge air hose | |
| 31. | 865127 | [2] | Charge air hose | (865128) |
| 32. | 865575 | [6] | Hose clamp | |
| 33. | 866689 | [1] | Hose | |
| 34. | 1544731 | [2] | Hose clamp | |
| 35. | 1674206 | [2] | Half clamp | When mounting of 4pcs cab 1674206 use 2pcs spacer sleeve 847240. |
| 36. | 865317 | [2] | Anchorage | |
| 37. | 847240 | [2] | Spacer sleeve | When mounting of 4pcs cab 1674206 use 2pcs spacer sleeve 847240., L=23mm |
| 38. | 948217 | [2] | Flange screw | |
| 39. | 948645 | [2] | Flange lock nut | |
| 40. | 945444 | [2] | Flange screw | |
| 41. | 952637 | [1] | Clamp | |
| 42. | 972603 | [1] | Six point socket scr | |
| 43. | 960138 | [1] | Washer | |
| 44. | 3825616 | [2] | Fan guard | |
| 45. | 966807 | [12] | Flange screw | L=16mm |
| 46. | 946817 | [4] | Flange screw | |
| 47. | 971099 | [4] | Flange lock nut | |
| 48. | 866109 | [1] | Attaching plate | |
| 49. | 946440 | [2] | Flange screw | |
| 50. | 865159 | [1] | Radiator protector | |
| 51. | 846118 | [1] | Emblem | |
| 52. | 941651 | [2] | Cross recessed sunk | |
| 53. | 947760 | [6] | Flange screw | |
| 54. | 948211 | [8] | Cable tie | |
| 55. | 192618 | [1] | Hose | L=2300mm |
| 56. | 3827367 | [1] | Expansion tank | |
| 57. | 339958 | [2] | Tensioning band | |
| 58. | 31406 | [2] | Hexagon screw | |
| 59. | 31405 | [2] | Pin | |
| 60. | 31404 | [2] | Clevis pin | |
| 61. | 479953 | [3] | Elbow nipple | |
| 62. | 3826803 | [2] | Bracket | |
| 63. | 3832724 | [2] | Bracket | |
| 64. | 3832725 | [2] | Bracket | |
| 65. | 845422 | [1] | Plastic plug | |
| 66. | 994556 | [4] | Hose clamp | |
| 67. | 943367 | [1] | Rubber hose | L=600mm |
| 68. | 943367 | [1] | Rubber hose | L=480mm |
| 69. | 1674083 | [1] | Pressure cap | |
| 70. | 3828863 | [1] | Rubber collar | |
| 71. | 971098 | [4] | Flange lock nut | |
| 72. | 946329 | [4] | Flange screw | |
| 73. | 942649 | [1] | Elbow nipple | |
| 74. | 960632 | [1] | Plug | |
| 75. | 11998 | [1] | Gasket | |
| 76. | 3825346 | [1] | Decal | |
| 77. | 3817024 | [1] | Decal |
