| 1. |
3802068
|
[1] |

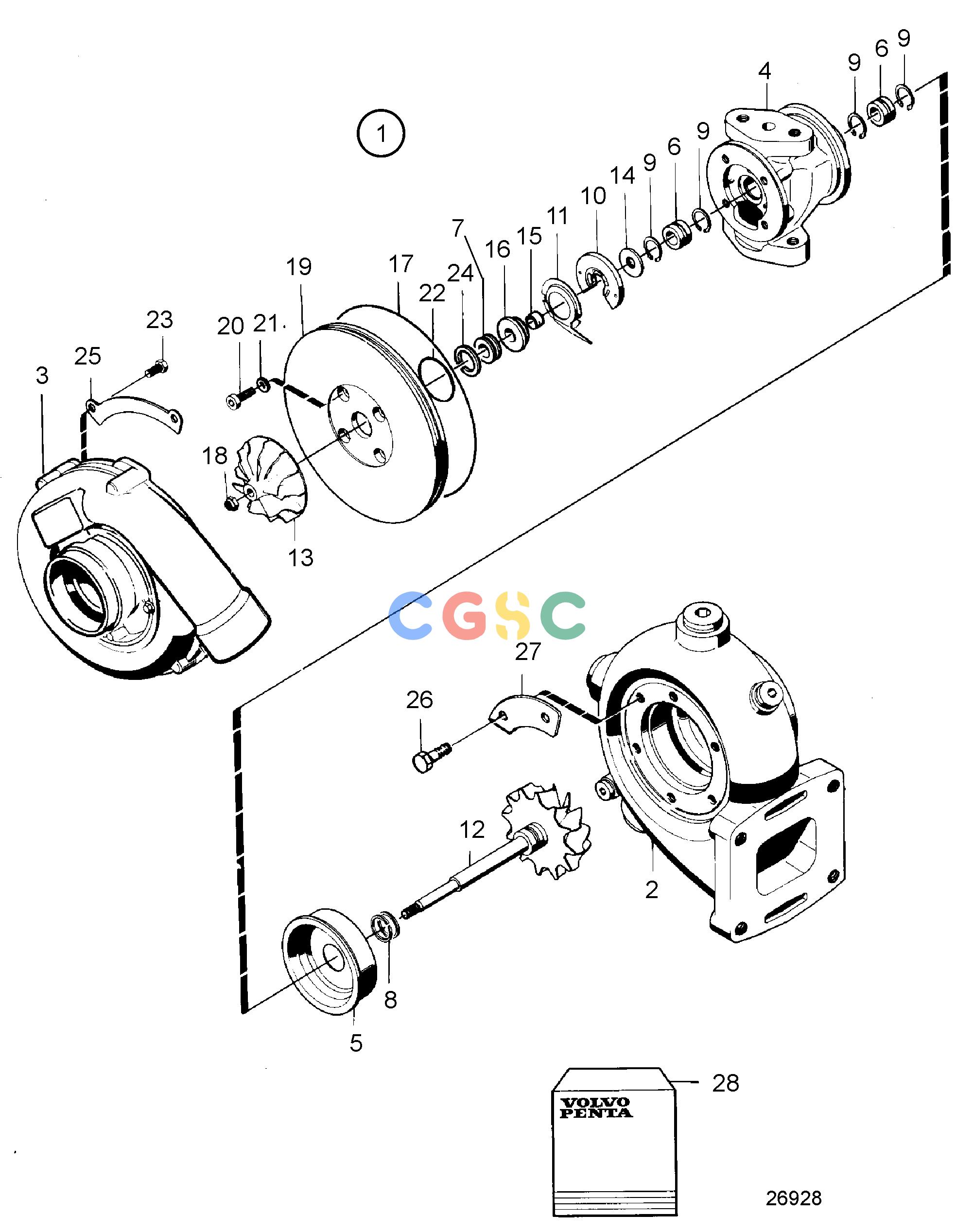

Turbocharger
|
(864729)
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
Included in overhaul kit.
|
| 7. |
|
|
|
Included in overhaul kit.
|
| 8. |
|
|
|
Included in overhaul kit.
|
| 9. |
|
|
|
Included in overhaul kit.
|
| 10. |
|
|
|
Included in overhaul kit.
|
| 11. |
|
|
|
Included in overhaul kit.
|
| 12. |
866241
|
[1] |
Shaft
|
|
| 13. |
866242
|
[1] |
Compressor
|
|
| 14. |
849707
|
[1] |
Thrust washer
|
|
| 15. |
849708
|
[1] |
Sleeve
|
|
| 16. |
849709
|
[1] |
Gasket
|
|
| 17. |
849710
|
[1] |
Sealing ring
|
|
| 18. |
866243
|
[1] |
Nut
|
Included in overhaul kit.
|
| 19. |
|
|
|
|
| 20. |
|
|
|
Included in overhaul kit.
|
| 21. |
|
|
|
Included in overhaul kit.
|
| 22. |
847643
|
[1] |
O-ring
|
Included in overhaul kit.
|
| 23. |
955270
|
[8] |
Hexagon screw
|
Included in overhaul kit., (858661)
|
| 24. |
849700
|
[1] |
O-ring
|
Included in overhaul kit.
|
| 25. |
847646
|
[4] |
Segment
|
Included in overhaul kit.
|
| 26. |
866254
|
[6] |
Screw
|
Included in overhaul kit.
|
| 27. |
849692
|
[3] |
Segment
|
Included in overhaul kit.
|
| 28. |
866255
|
[1] |
Overhaul kit
|
|
