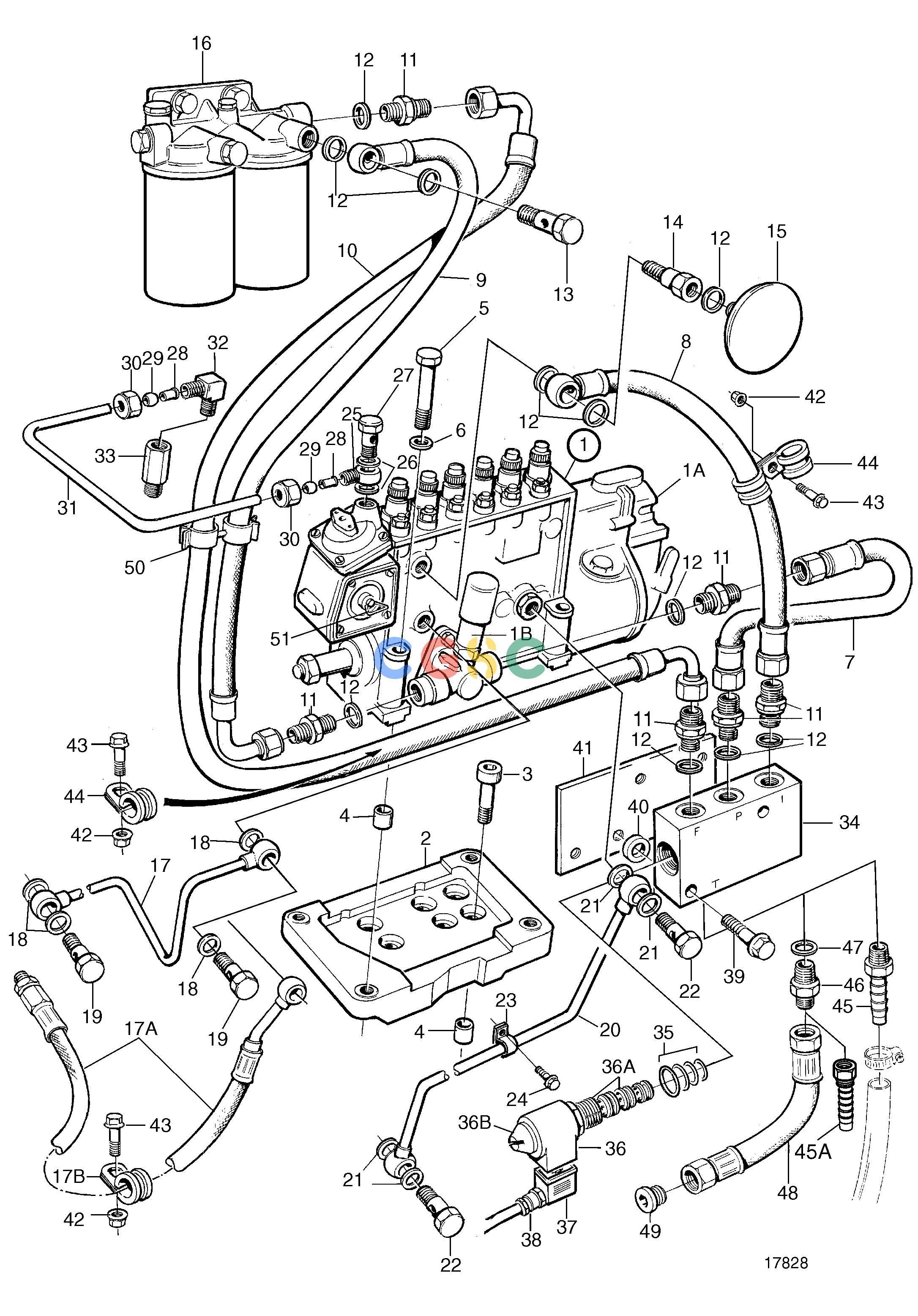

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 866633 | [1] | Injection pump | SN-XXXXXXXXX/183028 |
| 1. | 3803780 | [1] | Injection pump | SN-XXXXXXXXX/183028 |
| 1. | 3830102 | [1] | Injection pump | Could be used to TAMD63P-A SN-XXXXXXXXXX/183028 if all injectors changes to 3830101 together with tu |
| 1. | 3803793 | [1] | Injection pump | Could be used to TAMD63P-A SN-XXXXXXXXXX/183028 if all injectors changes to 3830101 together with tu |
| 1. | 3825130 | [1] | Governor | For 866633 |
| 1. | 3836081 | [1] | Governor | For 3830102 |
| 1. | 863474 | [1] | Feed pump | |
| 2. | 477793 | [1] | Shelf | |
| 3. | 959241 | [4] | Hex. socket screw | |
| 4. | 417588 | [2] | Guide sleeve | |
| 5. | 965189 | [4] | Flange screw | |
| 6. | 190509 | [4] | Washer | |
| 7. | 3830304 | [1] | Hose | L=175mm |
| 8. | 3830306 | [1] | Hose | L=405mm |
| 9. | 3830307 | [1] | Hose | L=460mm |
| 10. | 3830308 | [1] | Hose | L=660mm |
| 11. | 941754 | [6] | Nipple | |
| 12. | 969011 | [11] | Gasket | |
| 13. | 25167 | [1] | Hollow screw | |
| 14. | 849853 | [1] | Hollow screw | |
| 15. | 477173 | [1] | Pressure equalizer | |
| 16. | 7740790_034 | Fuel filter, with installation comps. | ||
| 17. | 866124 | [1] | Oil pressure pipe | SN-XXXXXXXXXX/118946 |
| 17A. | 3828252 | [1] | Hose | SNXXXXXXXXXX/118947- |
| 17B. | 952632 | [1] | Clamp | For 3828252 |
| 18. | 947281 | [4] | Gasket | 3 pcs for 3828252 |
| 19. | 48634 | [2] | Hollow screw | 1 pc for 3828252 |
| 20. | 866995 | [1] | Oil return pipe | |
| 21. | 969011 | [4] | Gasket | |
| 22. | 48634 | [2] | Hollow screw | |
| 23. | 940374 | [1] | Clamp | |
| 24. | 946440 | [1] | Flange screw | |
| 25. | 945417 | [1] | Banjo nipple | |
| 26. | 11994 | [2] | Gasket | |
| 27. | 969299 | [1] | Hollow screw | |
| 28. | 944717 | [2] | Support sleeve | |
| 29. | 954364 | [2] | Sleeve | |
| 30. | 954356 | [2] | Fitting nut | |
| 31. | 945460 | [1] | Tube | L=750mm |
| 32. | 954385 | [1] | Elbow nipple | |
| 33. | 862109 | [1] | Nipple | |
| 34. | 866698 | [1] | Valve | 12V repl by 3828982 |
| 34. | 866699 | [1] | Valve | 24V repl by 3828983 |
| 34. | 3828982 | [1] | Fuel valve | Incl 4pcs nipple 941754 and 4pcs gasket 969011. |
| 34. | 3828983 | [1] | Fuel valve | Incl 4pcs nipple 941754 and 4pcs gasket 969011. |
| 35. | 3828981 | [1] | Gasket kit | |
| 36. | 3825239 | [1] | Magnet | 12V |
| 36. | 3825240 | [1] | Magnet | 24V |
| 36A. | 3825235 | [1] | Valve | |
| 36B. | ||||
| 37. | 866664 | [1] | Housing | |
| 38. | 844576 | [1] | Grommet | |
| 39. | 947760 | [2] | Flange screw | |
| 40. | 941908 | [2] | Spring washer | |
| 41. | 7740790_049 | Bracket | ||
| 42. | 949278 | [3] | Flange lock nut | |
| 43. | 946544 | [3] | Flange screw | |
| 44. | 952629 | [3] | Clamp | |
| 45. | 3825000 | [1] | Hose nipple | 1/4-18NPTF male thread |
| 45A. | 3829292 | [1] | Nipple | M16 female thread |
| 46. | 977677 | [1] | Nipple | Included in kit 866997., M16x1,5 / 1/4-18 NPTF |
| 46. | 941754 | [1] | Nipple | M16x1,5 / M14x1,5 |
| 47. | 969011 | [1] | Gasket | Included in kit 866997. |
| 48. | 3830309 | [1] | Hose | Included in kit 866997. |
| 49. | 22753 | [2] | Nipple | Included in kit 866997. |
| 50. | 9205207 | [2] | Retainer |
