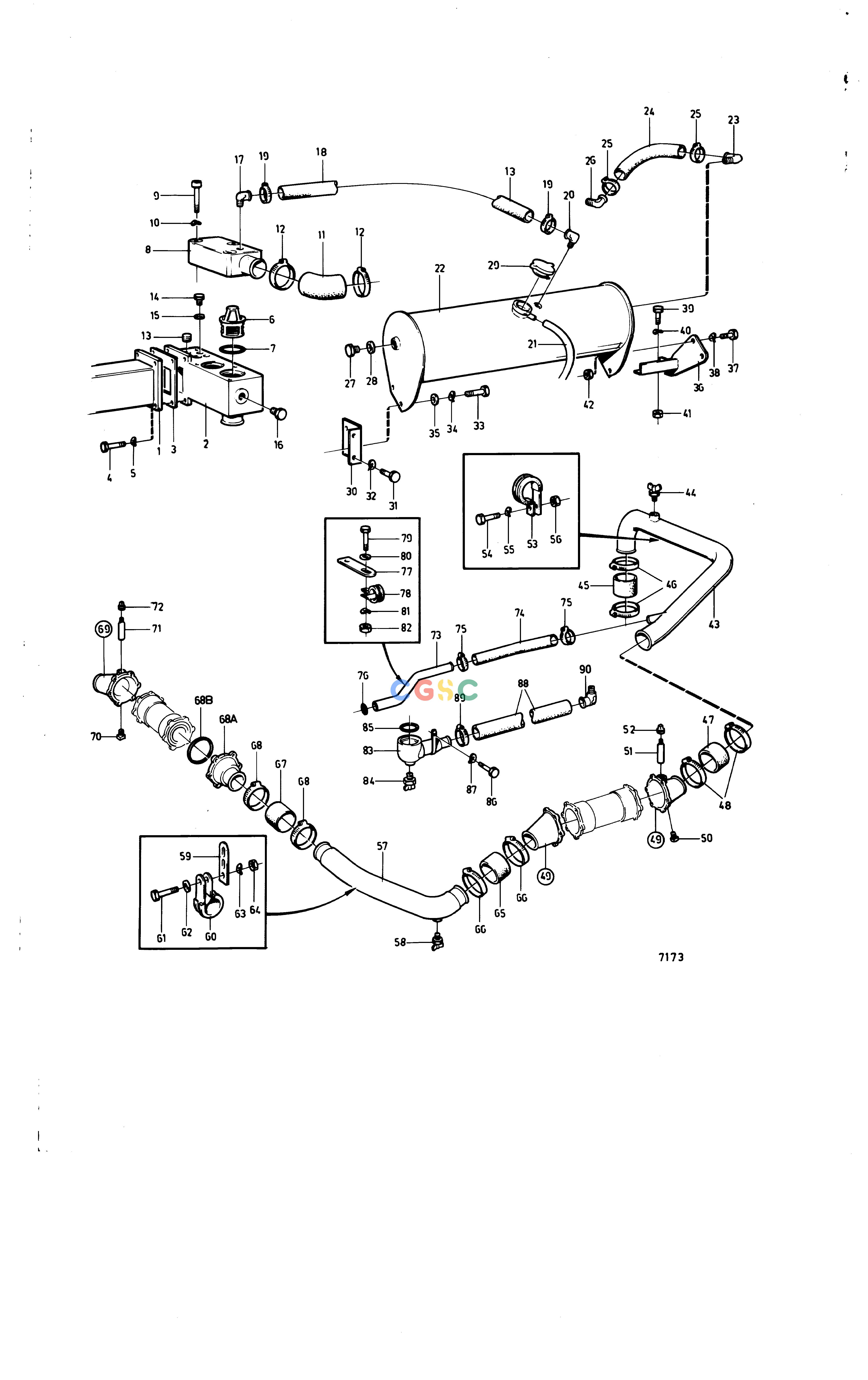

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | See group 2B | |||
| 2. | 824136 | [1] | Thermostat housing | |
| 3. | 820604 | [1] | Gasket | |
| 4. | 940134 | [4] | Hexagon screw | |
| 5. | 941909 | [4] | Spring washer | |
| 6. | 875788 | [1] | Thermostat kit | 70° |
| 6. | 875787 | [1] | Thermostat kit | 76° |
| 7. | 416033 | [2] | Sealing ring | |
| 8. | 847312 | [1] | Upper section | |
| 9. | 955540 | [3] | Hexagon screw | |
| 10. | 942336 | [3] | Spring washer | |
| 11. | 821128 | [1] | Radiator hose | |
| 12. | 943479 | [2] | Hose clamp | |
| 13. | 952077 | [2] | Plug | |
| 14. | 180761 | [1] | Plug | |
| 15. | 11996 | [1] | Gasket | |
| 16. | 82744 | [1] | Shut-off cock | |
| 17. | 180283 | [1] | Elbow nipple | |
| 18. | 13776 | [1] | Hose | |
| 19. | 943471 | [2] | Hose clamp | |
| 20. | 180283 | [1] | Elbow nipple | |
| 21. | 192618 | [1] | Hose | L=1000mm |
| 22. | 845436 | [1] | Expansion tank | |
| 23. | 961610 | [1] | Hose nipple | |
| 24. | 943369 | [1] | Rubber hose | L=350mm |
| 25. | 994559 | [2] | Hose clamp | |
| 26. | 961610 | [1] | Hose nipple | |
| 27. | 836268 | [1] | Plug | |
| 28. | 947282 | [1] | Gasket | |
| 29. | 334687 | [1] | Cover | |
| 30. | 847314 | [1] | Bracket | |
| 31. | 959794 | [2] | Hexagon screw | |
| 32. | 941907 | [2] | Spring washer | |
| 33. | 940113 | [2] | Hexagon screw | |
| 34. | 941907 | [2] | Spring washer | |
| 35. | 955894 | [2] | Washer | |
| 36. | 847315 | [1] | Bracket | |
| 37. | 955524 | [2] | Hexagon screw | |
| 38. | 941907 | [2] | Spring washer | |
| 39. | 940135 | [2] | Hexagon screw | |
| 40. | 941907 | [2] | Spring washer | |
| 41. | 955826 | [2] | Hexagon nut | |
| 42. | 955826 | [2] | Hexagon nut | |
| 43. | 847264 | [1] | Coolant pipe | |
| 44. | 947893 | [1] | Shut-off cock | |
| 45. | 952979 | [1] | Rubber hose | L=60mm |
| 46. | 943479 | [2] | Hose clamp | |
| 47. | 952980 | [1] | Hose | L=90mm |
| 48. | 943479 | [2] | Hose clamp | |
| 49. | 837129 | [2] | End cover | |
| 50. | 180759 | [6] | Plug | |
| 51. | 838929 | [2] | Anode | |
| 52. | 838928 | [2] | Plug | |
| 53. | 945734 | [1] | Clamp | |
| 54. | 955512 | [1] | Hexagon screw | |
| 55. | 941906 | [1] | Spring washer | |
| 56. | 955825 | [1] | Hexagon nut | |
| 57. | 848046 | [1] | Coolant pipe | |
| 58. | 947893 | [1] | Shut-off cock | |
| 59. | 965536 | [1] | Bracket | |
| 60. | 945734 | [1] | Clamp | |
| 61. | 955512 | [1] | Hexagon screw | |
| 62. | 955893 | [1] | Washer | |
| 63. | 941906 | [1] | Spring washer | |
| 64. | 955825 | [1] | Hexagon nut | |
| 65. | 952980 | [1] | Hose | L=90mm |
| 66. | 952980 | [2] | Hose | |
| 67. | 952979 | [1] | Rubber hose | L=60mm |
| 68. | 943479 | [2] | Hose clamp | |
| 68A. | 806580 | [1] | End plate | |
| 68B. | 806153 | [1] | Gasket | |
| 69. | 837129 | [1] | End cover | |
| 70. | 180759 | [3] | Plug | |
| 71. | 838929 | [1] | Anode | |
| 72. | 838928 | [1] | Plug | |
| 73. | 847265 | [1] | Coolant pipe | |
| 74. | 944386 | [1] | Rubber hose | L=320mm |
| 75. | 994559 | [2] | Hose clamp | |
| 76. | 949658 | [1] | O-ring | |
| 77. | 965534 | [1] | Bracket | |
| 78. | 952635 | [1] | Clamp | |
| 79. | 955512 | [1] | Hexagon screw | |
| 80. | 955893 | [1] | Washer | |
| 81. | 941906 | [1] | Spring washer | |
| 82. | 955825 | [1] | Hexagon nut | |
| 83. | 847266 | [1] | Coolant pipe | |
| 84. | 947893 | [1] | Shut-off cock | |
| 85. | 925064 | [1] | O-ring | |
| 86. | 955523 | [1] | Hexagon screw | |
| 87. | 941907 | [1] | Spring washer | |
| 88. | 943369 | [1] | Rubber hose | L=250mm |
| 89. | 943473 | [2] | Hose clamp | |
| 90. | 961610 | [1] | Hose nipple |
