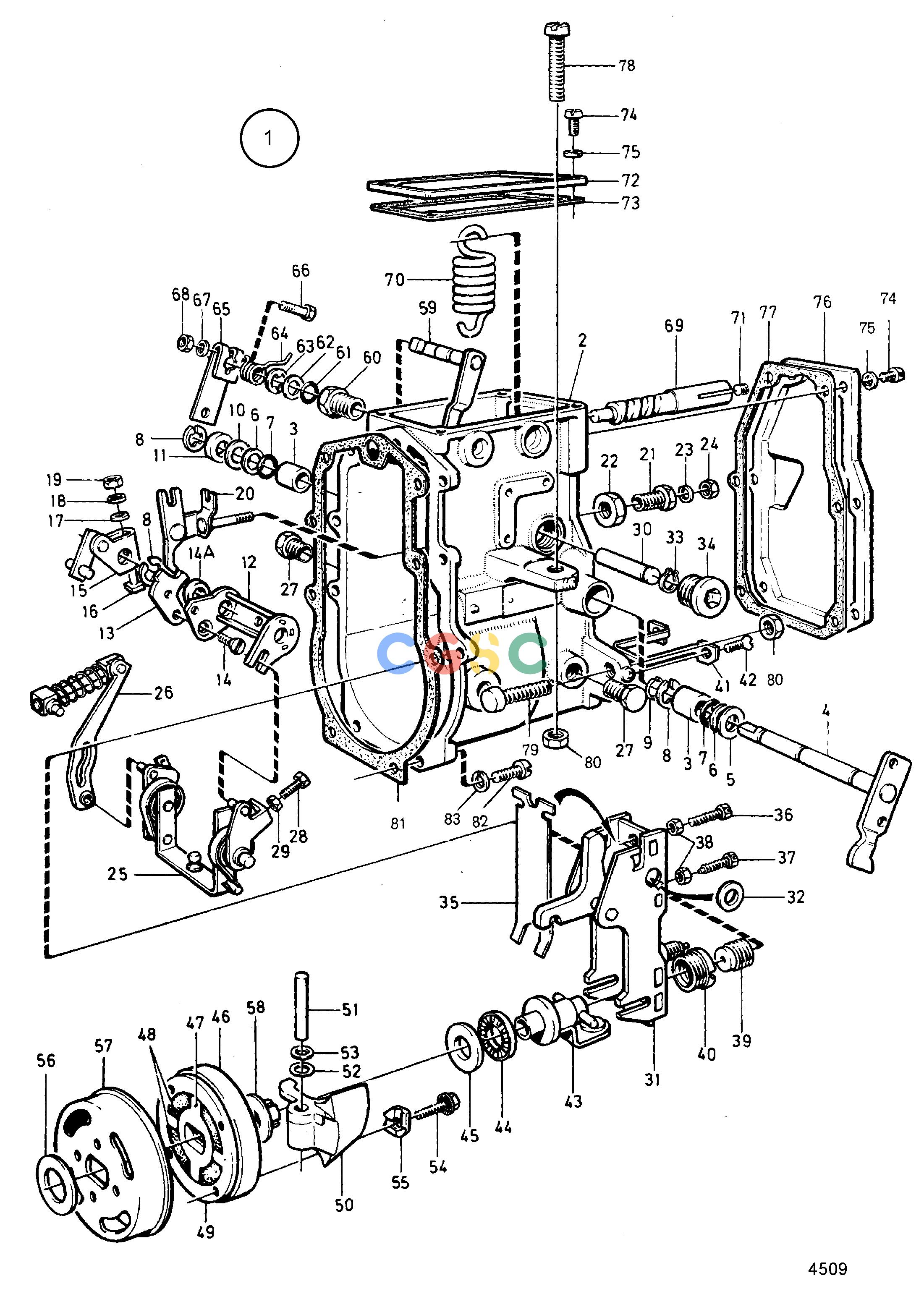

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 843180 | [1] | Governor | |
| 2. | 244243 | [1] | Regulator housing | |
| 3. | 244095 | [2] | Bushing | |
| 4. | 244100 | [1] | Lever | |
| 5. | 244192 | [1] | Washer | |
| 6. | 244108 | [2] | Spacer washer | |
| 7. | 244102 | [2] | O-ring | |
| 8. | 843182 | [3] | Lock washer | |
| 9. | 244105 | [1] | Clamping ring | |
| 10. | 244111 | [1] | Adjusting washer | TH=0.3mm |
| 10. | 244101 | [1] | Washer | TH=0.5mm |
| 11. | 244113 | [1] | Spacer washer | |
| 12. | 244104 | [1] | Companion flange | |
| 13. | 244163 | [1] | Guide plate | |
| 14. | 244164 | [1] | Screw | |
| 14A. | 244103 | [1] | Collet | |
| 15. | 244125 | [1] | Lever | |
| 16. | 244126 | [1] | Screw | |
| 17. | 955892 | [1] | Washer | |
| 18. | 941906 | [1] | Spring washer | |
| 19. | 244127 | [1] | Nut | |
| 20. | 244130 | [1] | Stop | |
| 21. | 244128 | [1] | Bushing | |
| 22. | 244129 | [1] | Nut | |
| 23. | 240769 | [1] | Spring washer | |
| 24. | 244127 | [1] | Nut | |
| 25. | 244096 | [1] | Lever | |
| 26. | 244098 | [1] | Lever | |
| 27. | 244099 | [2] | Plug | |
| 28. | 244097 | [1] | Adjusting screw | |
| 29. | ||||
| 30. | 244123 | [1] | Bearing bolt | |
| 31. | 244115 | [1] | Lever | |
| 32. | 244122 | [1] | Adjusting washer | |
| 33. | 244124 | [1] | Lock ring | |
| 34. | 240919 | [1] | Plug | |
| 35. | 244121 | [1] | Leaf spring | |
| 36. | 244117 | [1] | Adjusting screw | |
| 37. | 244117 | [1] | Adjusting screw | |
| 38. | 955781 | [2] | Hexagon nut | (244116) |
| 39. | 244119 | [1] | Screw | |
| 40. | 244120 | [1] | Nut | |
| 41. | 244106 | [1] | Brace | |
| 42. | 244107 | [2] | Screw | |
| 43. | 244150 | [1] | Control sleeve | |
| 44. | 244151 | [1] | Needle bearing | |
| 45. | 244256 | [1] | Adjusting washer | TH=3,45mm |
| 45. | 244257 | [1] | Adjusting washer | TH=3,65mm |
| 45. | 244258 | [1] | Adjusting washer | TH=3,85mm |
| 45. | 244259 | [1] | Adjusting washer | TH=4,05mm |
| 45. | 244260 | [1] | Adjusting washer | TH=4,25mm |
| 45. | 244152 | [1] | Adjusting washer | TH=4,45mm |
| 45. | 244153 | [1] | Adjusting washer | TH=4,65mm |
| 45. | 244154 | [1] | Adjusting washer | TH=4,85mm |
| 45. | 244155 | [1] | Adjusting washer | TH=5,05mm |
| 46. | 244143 | [1] | Retainer | |
| 47. | 244139 | [1] | Companion flange | |
| 48. | 244140 | [4] | Rubber damper | |
| 49. | 244141 | [1] | Washer | |
| 50. | 870919 | [4] | Weight | |
| 51. | 244145 | [4] | Bearing bolt | |
| 52. | 244148 | [1] | Adjusting washer | TH=0.1mm |
| 52. | 244149 | [1] | Adjusting washer | TH=0.2mm |
| 53. | 843191 | [8] | Washer | |
| 54. | 244147 | [4] | Screw | |
| 55. | 244146 | [4] | Clamping jaw | |
| 56. | 244137 | [1] | Bearing washer | |
| 57. | 244138 | [1] | Cap | |
| 58. | 244142 | [1] | Nut | |
| 59. | 244170 | [1] | Lever | |
| 60. | 244169 | [1] | Bushing | |
| 61. | 243786 | [1] | O-ring | |
| 62. | 233816 | [1] | Washer | |
| 63. | 951670 | [1] | E-circlip | |
| 64. | 244197 | [1] | Spring | |
| 65. | 244244 | [1] | Lever | |
| 66. | 244174 | [1] | Screw | |
| 67. | 842302 | [1] | Washer | |
| 68. | 955780 | [1] | Hexagon nut | |
| 69. | 244131 | [1] | Shaft | |
| 70. | 244194 | [1] | Spring | |
| 71. | 244133 | [1] | Plug | |
| 72. | 244135 | [1] | Cover | |
| 73. | 244134 | [1] | Gasket | |
| 74. | 956091 | [10] | Cross recessed screw | (843169) |
| 75. | 941906 | [10] | Spring washer | |
| 76. | 244166 | [1] | Cover | |
| 77. | 244165 | [1] | Gasket | |
| 78. | 244167 | [1] | Adjusting screw | |
| 79. | 244109 | [1] | Bolt | |
| 80. | 244110 | [2] | Nut | |
| 81. | 244162 | [1] | Gasket | |
| 82. | 955272 | [8] | Hexagon screw | (843190) |
| 83. | 941906 | [8] | Spring washer |
