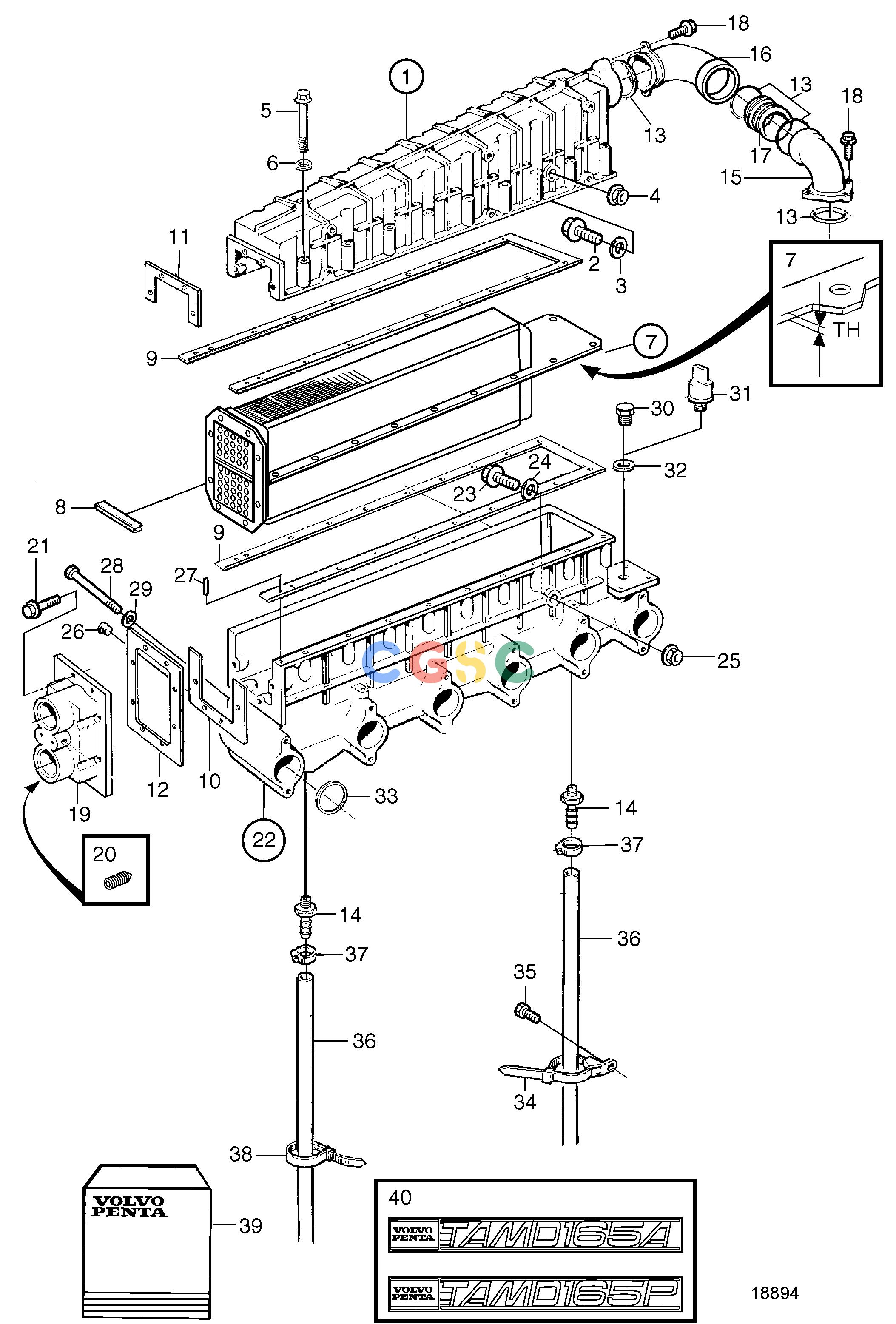

| 1. |
862257
|
[1] |
Inlet manifold, without support screw
|
Repl by 3826928
|
| 1. |
3826928
|
[1] |
Inlet manifold
|
Repl by 3835913
|
| 1. |
3835913
|
[1] |
Inlet pipe
|
|
| 2. |
3825668
|
[2] |
Tensioning screw
|
For fixing of the charge air cooler insert.
|
| 3. |
955899
|
[2] |
Washer
|
Remove the washer, if the support screw will be used.
|
| 4. |
971097
|
[2] |
Flange nut
|
For fixing of the charge air cooler insert., Only when the support screw will be used.
|
| 5. |
968842
|
[18] |
Flange screw
|
(973080)
|
| 6. |
941907
|
[18] |
Spring washer
|
|
| 7. |
877389
|
[1] |
Charge air cooler ki
|
|
| 8. |
865383
|
[1] |
Sealing strip
|
Included in after cooler kit 877389.
|
| 9. |
3825913
|
[2] |
Gasket
|
Included in after cooler kit 877389.
|
| 10. |
863117
|
[1] |
Gasket
|
Included in after cooler kit 877389.
|
| 11. |
863118
|
[1] |
Gasket
|
Included in after cooler kit 877389.
|
| 12. |
3828317
|
[1] |
Gasket
|
Included in after cooler kit 877389.
|
| 13. |
3825197
|
[4] |
Sealing ring
|
Included in after cooler kit 877389.
|
| 14. |
180003
|
[2] |
Nipple
|
|
| 15. |
3825944
|
[1] |
Connecting pipe, turbo
|
TAMD165A
|
| 15. |
866631
|
[1] |
Connecting pipe
|
TAMD165P
|
| 16. |
3835927
|
[1] |
Connecting pipe
|
|
| 17. |
866740
|
[1] |
Intermediate pipe
|
|
| 18. |
946173
|
[6] |
Flange screw
|
|
| 19. |
848789
|
[1] |
Cover
|
Replaced by 1pc 3828249 cover, 1pc 946847 ground screw and 8pcs 947760 flange screw.
|
| 19. |
3828249
|
[1] |
Cap
|
|
| 20. |
946847
|
[1] |
Set screw, ground
|
|
| 21. |
945444
|
[8] |
Flange screw
|
L=16mm
|
| 21. |
947760
|
[8] |
Flange screw
|
L=40mm
|
| 22. |
876768
|
[1] |
Inlet manifold, without support screw
|
Repl by 3826929
|
| 22. |
3826929
|
[1] |
Inlet pipe
|
Spare part design
|
| 23. |
3825668
|
[2] |
Tensioning screw
|
For fixing of the charge air cooler insert.
|
| 24. |
955899
|
[2] |
Washer
|
For fixing of the charge air cooler insert.
|
| 25. |
971097
|
[2] |
Flange nut
|
For fixing of the charge air cooler insert., Only when the support screw will be used.
|
| 26. |
479977
|
[2] |
Plug
|
|
| 27. |
950545
|
[2] |
Pin
|
|
| 28. |
955313
|
[11] |
Hexagon screw
|
L=160mm
|
| 28. |
968303
|
[1] |
Hexagon screw
|
L=190mm
|
| 29. |
941907
|
[12] |
Spring washer
|
|
| 30. |
960632
|
[1] |
Plug
|
|
| 31. |
7744520_134
|
|
Pressure sensor, turbo
|
|
| 32. |
947624
|
[1] |
Gasket
|
|
| 33. |
1543172
|
[6] |
Sealing ring
|
|
| 34. |
1578046
|
[1] |
Retainer
|
|
| 35. |
969422
|
[1] |
Six point socket scr, cylinder block
|
|
| 36. |
942700
|
[1] |
Hose
|
L=850mmx2
|
| 37. |
961662
|
[2] |
Hose clamp
|
|
| 38. |
948211
|
[3] |
Cable tie
|
|
| 39. |
876805
|
[1] |
Intake gasket kit, inlet pipe
|
For mounting of the inlet manifold. bring also 4 pcs sealing ring 3825197.
|
| 40. |
3837386
|
[1] |
Decal
|
TAMD165A
|
| 40. |
3837388
|
[1] |
Decal
|
TAMD165P
|
