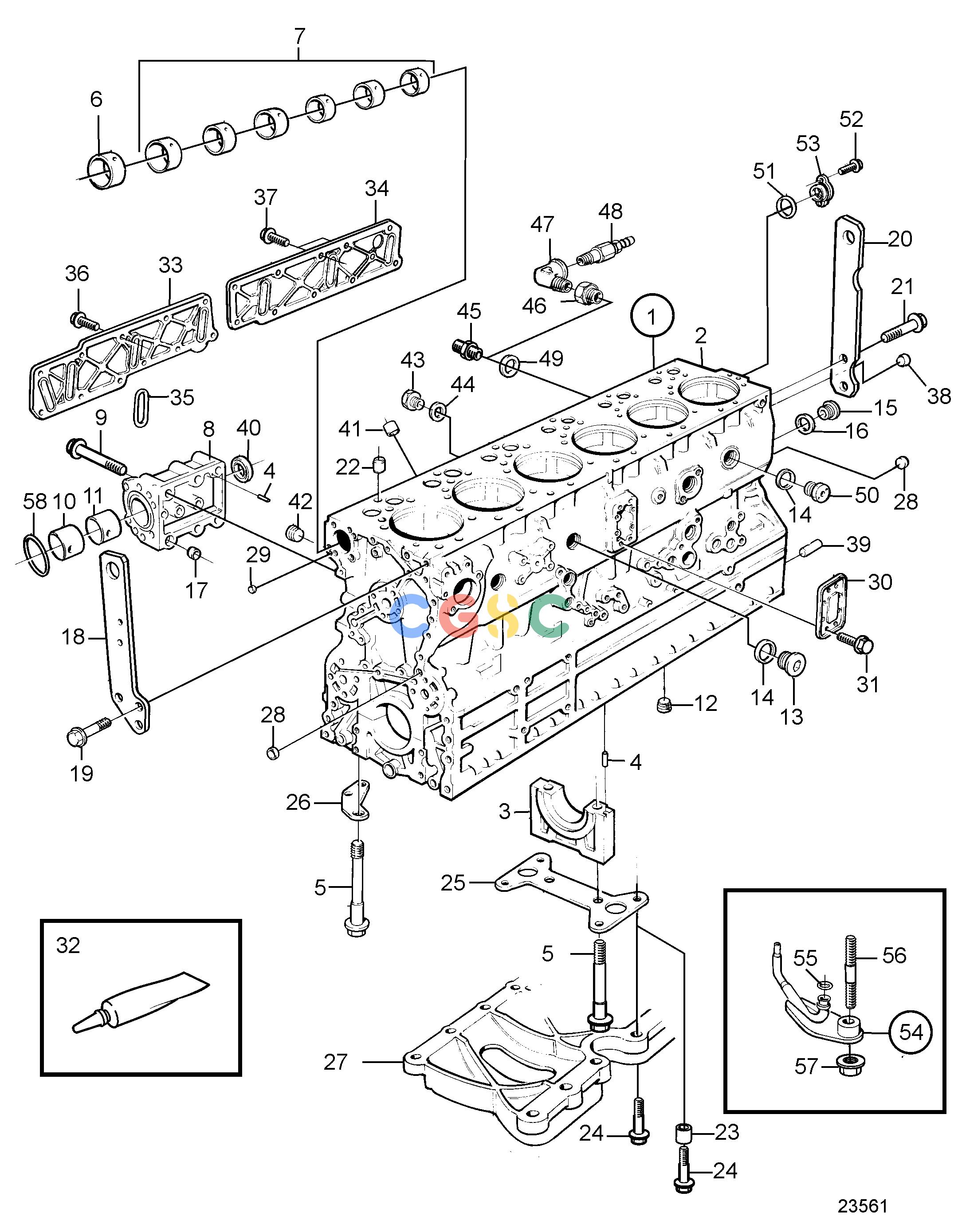

| 1. |
1556500
|
[1] |
Cylinder block
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
422426
|
[8] |
Pin
|
|
| 5. |
20581443
|
[14] |
Flange screw
|
(1543412)
|
| 6. |
1556514
|
[1] |
Bushing, front
|
|
| 7. |
1556515
|
[6] |
Bushing
|
|
| 8. |
|
|
|
|
| 9. |
975102
|
[4] |
Flange screw
|
L=60mm
|
| 9. |
975105
|
[1] |
Flange screw
|
L=100mm
|
| 9. |
975107
|
[1] |
Flange screw
|
L=120mm
|
| 10. |
1556353
|
[1] |
Bushing, front
|
|
| 11. |
1556372
|
[1] |
Bushing, rear
|
|
| 12. |
952079
|
[1] |
Plug
|
|
| 13. |
467367
|
[3] |
Plug
|
|
| 14. |
1556907
|
[3] |
Gasket
|
|
| 15. |
8193945
|
[1] |
Plug
|
|
| 16. |
469327
|
[1] |
Gasket
|
|
| 17. |
1543693
|
[1] |
Guide sleeve
|
|
| 18. |
|
|
|
|
| 19. |
965191
|
[3] |
Flange screw
|
|
| 20. |
|
|
|
|
| 21. |
968436
|
[2] |
Flange screw
|
|
| 22. |
1543693
|
[6] |
Guide sleeve, cylinder head
|
|
| 23. |
1543787
|
[8] |
Spacer sleeve
|
SNXXXXXXXXXX/27111-
|
| 24. |
965192
|
[28] |
Flange screw
|
|
| 25. |
1556797
|
[5] |
Stiffening plate
|
(1543590)
|
| 26. |
1543589
|
[4] |
Stiffening plate
|
|
| 27. |
1556670
|
[1] |
Frame
|
SNXXXXXXXXXX/27111-
|
| 28. |
955083
|
[2] |
Cap plug
|
D=14,5mm
|
| 29. |
967853
|
[1] |
Cap plug
|
D=10,5mm
|
| 30. |
1543593
|
[1] |
Cover
|
|
| 31. |
967949
|
[8] |
Flange screw
|
(965175)
|
| 32. |
1161231
|
[1] |
Sealant
|
304ml
|
| 32. |
1161277
|
[1] |
Sealant
|
10g
|
| 33. |
1543486
|
[1] |
Cover plate
|
|
| 34. |
1543488
|
[1] |
Cover plate, crankhouse vent.
|
(1556289)
|
| 35. |
469606
|
[7] |
Seal
|
|
| 36. |
945444
|
[18] |
Flange screw
|
M8x25mm
|
| 36. |
946470
|
[1] |
Flange screw
|
M8x35mm
|
| 36. |
7744520_053
|
|
Screw, crankhouse vent.
|
|
| 37. |
946752
|
[2] |
Flange screw
|
M10x35mm
|
| 38. |
946778
|
[1] |
Cap plug
|
D=17,5mm
|
| 39. |
191171
|
[2] |
Pin, flywheel casing
|
|
| 40. |
1546221
|
[1] |
Sealing ring
|
|
| 41. |
417588
|
[1] |
Guide sleeve, fuel inj. pump
|
|
| 42. |
968063
|
[1] |
Plug, m16
|
|
| 43. |
960631
|
[1] |
Plug, m16
|
|
| 43. |
421528
|
[1] |
Nipple, super vising equipment
|
|
| 44. |
947622
|
[1] |
Gasket
|
|
| 45. |
1676622
|
[1] |
Nipple, draining
|
Replaced by 1pc drain cock 949918, 1pc reduction nipple 191068 and 1pc elbow nipple 3826916., SN-XXX
|
| 46. |
948867
|
[1] |
Reduction nipple
|
SNXXXXXXXXXX/19770-
|
| 47. |
977409
|
[1] |
Elbow nipple
|
SNXXXXXXXXXX/19770-
|
| 48. |
974320
|
[1] |
Shut-off cock
|
SNXXXXXXXXXX/19770-
|
| 49. |
948885
|
[1] |
Gasket
|
|
| 50. |
848785
|
[1] |
Nipple, water pipe-turbo
|
|
| 51. |
968971
|
[1] |
O-ring
|
|
| 52. |
946173
|
[2] |
Flange screw
|
|
| 53. |
1542242
|
[1] |
Cover, camshaft
|
|
| 54. |
1556430
|
[6] |
Piston cooling jet, piston cooling
|
|
| 55. |
955981
|
[6] |
O-ring
|
|
| 56. |
1556434
|
[6] |
Stud
|
|
| 57. |
948645
|
[6] |
Flange lock nut
|
|
| 58. |
980236
|
[1] |
O-ring
|
|
