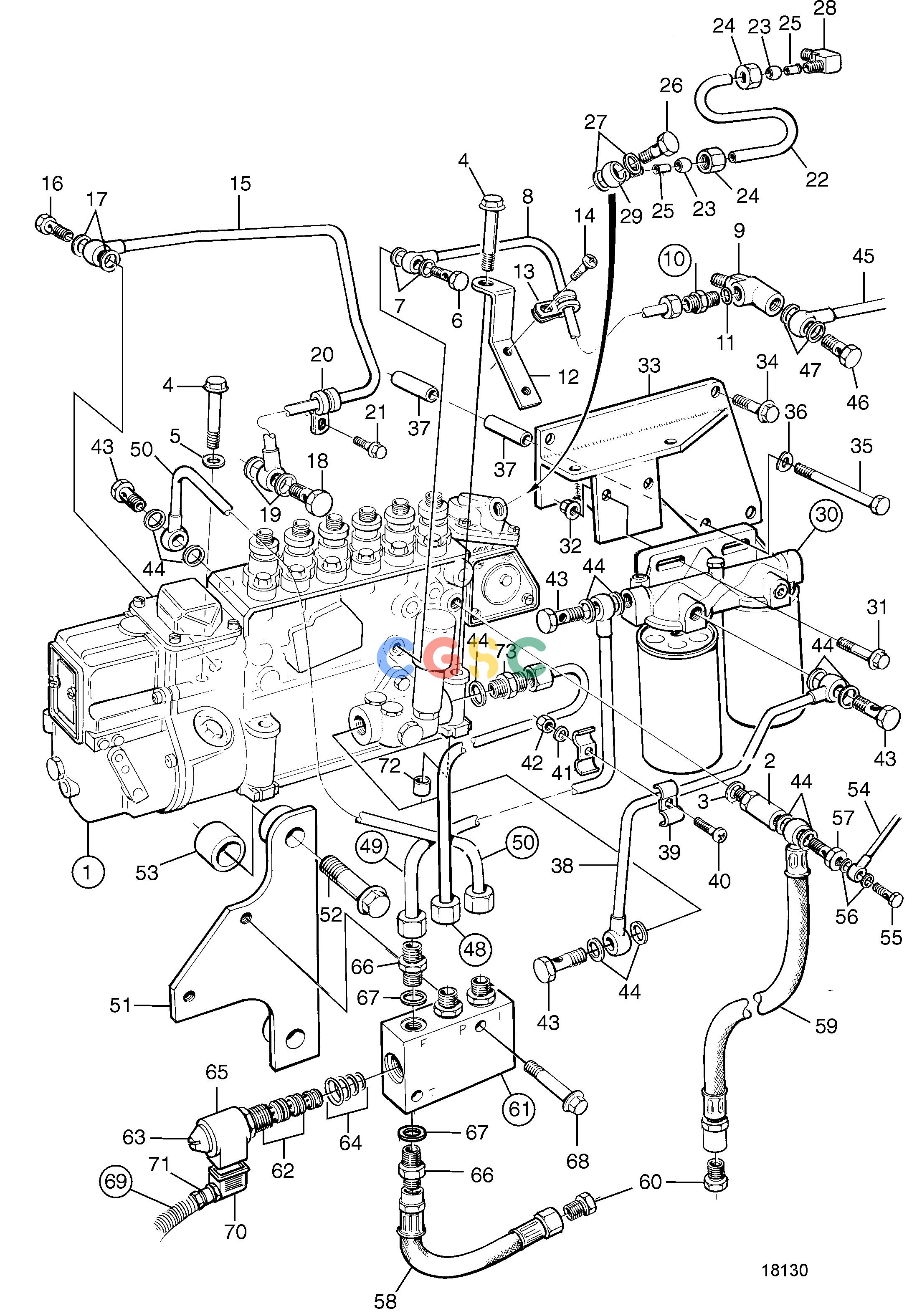

| 1. |
3836265
|
[1] |
Injection pump
|
500kW/2100rpm, E.U=3803828
|
| 1. |
3803828
|
[1] |
Injection pump
|
500kW/2100rpm, E.U=3803828
|
| 1. |
3836264
|
[1] |
Injection pump
|
551kW/2100rpm, E.U=3803827
|
| 1. |
3803827
|
[1] |
Injection pump
|
551kW/2100rpm, E.U=3803827
|
| 1. |
|
|
|
|
| 1. |
3825481
|
[1] |
Governor
|
|
| 1. |
3825429
|
[1] |
Feed pump
|
|
| 2. |
11996309
|
[1] |
Overflow valve
|
|
| 3. |
15304
|
[1] |
Gasket
|
|
| 4. |
965189
|
[4] |
Flange screw
|
|
| 5. |
190509
|
[3] |
Washer
|
|
| 6. |
48634
|
[1] |
Hollow screw
|
|
| 7. |
947281
|
[2] |
Gasket
|
|
| 8. |
1556736
|
[1] |
Oil pressure pipe, incl fitting and ferrule
|
Repl by 3837743
|
| 8. |
3837743
|
[1] |
Oil pressure pipe
|
|
| 8. |
980779
|
[1] |
Ferrule
|
|
| 8. |
966728
|
[1] |
Banjo nipple
|
|
| 8. |
956981
|
[1] |
Fitting nut
|
|
| 9. |
977640
|
[1] |
3-way nipple, cylinder block
|
|
| 10. |
977639
|
[1] |
Nipple
|
|
| 11. |
|
|
|
|
| 12. |
1556112
|
[1] |
Bracket
|
|
| 13. |
952623
|
[1] |
Clamp
|
|
| 14. |
956092
|
[1] |
Cross recessed screw
|
|
| 15. |
1556254
|
[1] |
Oil return pipe
|
|
| 16. |
48634
|
[1] |
Hollow screw
|
|
| 17. |
947281
|
[2] |
Gasket
|
|
| 18. |
25167
|
[1] |
Hollow screw, cylinder block
|
|
| 19. |
982723
|
[2] |
Gasket
|
|
| 20. |
949746
|
[1] |
Clamp
|
(946834)
|
| 21. |
946440
|
[1] |
Flange screw
|
|
| 22. |
945460
|
[1] |
Tube
|
L=450mm
|
| 23. |
954364
|
[2] |
Sleeve
|
|
| 24. |
954356
|
[2] |
Fitting nut
|
|
| 25. |
944717
|
[2] |
Support sleeve
|
|
| 26. |
969299
|
[1] |
Hollow screw
|
|
| 27. |
11994
|
[2] |
Gasket
|
|
| 28. |
954385
|
[1] |
Elbow nipple, induction manifold
|
|
| 29. |
945417
|
[1] |
Banjo nipple
|
|
| 30. |
8194541
|
[1] |
Fuel filter housing
|
(1676832)
|
| 31. |
965185
|
[2] |
Flange screw
|
|
| 32. |
971095
|
[2] |
Flange nut
|
|
| 33. |
862189
|
[1] |
Bracket
|
|
| 34. |
946173
|
[2] |
Flange screw
|
|
| 35. |
955313
|
[1] |
Hexagon screw
|
|
| 36. |
941907
|
[1] |
Spring washer
|
|
| 37. |
822791
|
[2] |
Spacer sleeve, pump companion guard
|
|
| 38. |
865017
|
[1] |
Fuel pipe
|
|
| 39. |
404279
|
[4] |
Clamp
|
|
| 40. |
956094
|
[2] |
Cross recessed screw
|
|
| 41. |
955892
|
[2] |
Washer
|
|
| 42. |
945407
|
[2] |
Flange nut
|
|
| 43. |
25167
|
[4] |
Hollow screw
|
|
| 44. |
982723
|
[14] |
Gasket
|
|
| 45. |
7746600_096
|
|
Oil feed pipe, sea water pump
|
|
| 46. |
969299
|
[1] |
Hollow screw
|
|
| 47. |
11994
|
[2] |
Gasket
|
|
| 48. |
3825227
|
[1] |
Fuel pipe, incl fitting and ferrule
|
|
| 49. |
3825228
|
[1] |
Fuel pipe, incl fitting and ferrule
|
|
| 50. |
3825229
|
[1] |
Fuel pipe, incl fitting and ferrule
|
|
| 51. |
3825152
|
[1] |
Bracket
|
|
| 52. |
968437
|
[2] |
Flange screw
|
|
| 53. |
1593030
|
[2] |
Spacer sleeve
|
When engine brackets are not mounted.
|
| 54. |
7746600_031
|
|
Leak-off line
|
|
| 55. |
7746600_031
|
|
Hollow screw
|
|
| 56. |
7746600_031
|
|
Gasket
|
|
| 57. |
16496
|
[1] |
Hollow screw
|
|
| 58. |
3830309
|
[1] |
Hose
|
|
| 59. |
3830312
|
[1] |
Hose
|
|
| 60. |
22753
|
[2] |
Nipple
|
|
| 61. |
3828983
|
[1] |
Fuel valve
|
|
| 62. |
|
|
|
|
| 63. |
|
|
|
|
| 64. |
3828981
|
[1] |
Gasket kit
|
|
| 65. |
3825240
|
[1] |
Magnet
|
|
| 66. |
941754
|
[4] |
Nipple
|
|
| 67. |
969011
|
[4] |
Gasket
|
|
| 68. |
947760
|
[2] |
Flange screw
|
|
| 69. |
873619
|
[1] |
Cable harness
|
|
| 70. |
866664
|
[1] |
Housing
|
|
| 71. |
844576
|
[1] |
Grommet
|
|
| 72. |
417588
|
[1] |
Guide sleeve, cylinder block
|
|
| 73. |
941754
|
[1] |
Nipple
|
|
