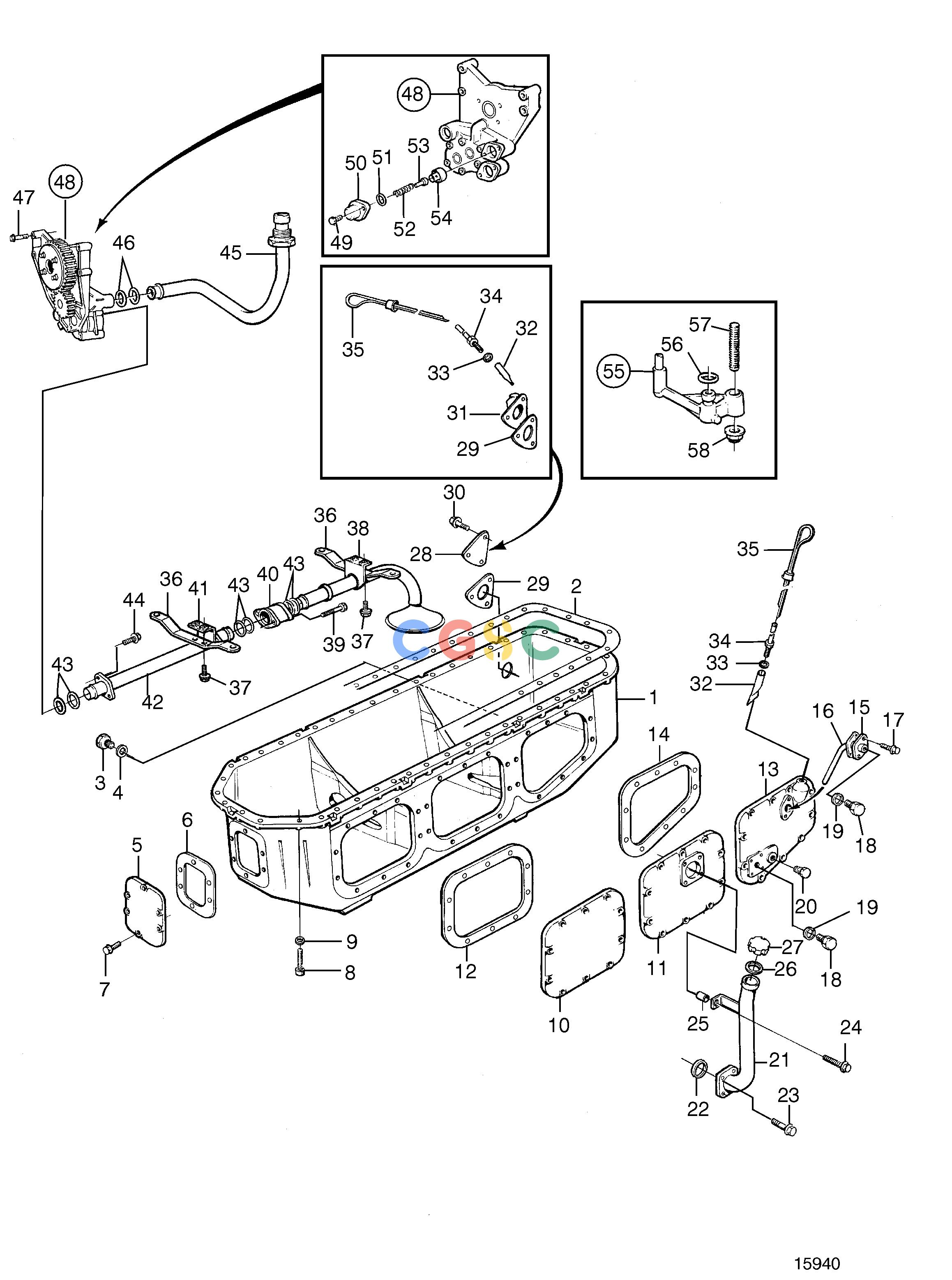

| 1. |
862554
|
[1] |
Oil sump
|
|
| 2. |
3827274
|
[1] |
Gasket
|
|
| 3. |
949175
|
[1] |
Magnetic plug
|
|
| 4. |
949329
|
[1] |
Gasket
|
|
| 5. |
849276
|
[1] |
Cap
|
|
| 6. |
849823
|
[1] |
Gasket
|
|
| 7. |
946671
|
[36] |
Flange screw
|
|
| 8. |
959223
|
[44] |
Hex. socket screw
|
|
| 9. |
941907
|
[44] |
Spring washer
|
|
| 10. |
862626
|
[1] |
Cap
|
|
| 11. |
849851
|
[1] |
Cap
|
|
| 12. |
848912
|
[2] |
Gasket
|
|
| 13. |
862555
|
[1] |
Cap
|
|
| 14. |
862575
|
[1] |
Gasket
|
|
| 15. |
849793
|
[1] |
Oil draining pipe, draining
|
|
| 16. |
862602
|
[1] |
Gasket
|
|
| 17. |
946173
|
[2] |
Flange screw
|
|
| 18. |
960632
|
[2] |
Plug
|
|
| 19. |
947624
|
[2] |
Gasket
|
|
| 20. |
479956
|
[1] |
Plug
|
|
| 21. |
862061
|
[1] |
Oil filler pipe
|
Replaced by 1pc oil filler pipe 866936, 1pc flange screw 946671 and 1pc sleeve 862713., SN-XXXXXXXXX
|
| 21. |
866936
|
[1] |
Oil filler pipe
|
SNXXXXXXXXXX/15949-
|
| 22. |
843584
|
[1] |
Gasket
|
|
| 23. |
946173
|
[4] |
Flange screw
|
|
| 24. |
946173
|
[1] |
Flange screw, L=20mm
|
SN-XXXXXXXXXX/15948
|
| 24. |
946671
|
[1] |
Flange screw, L=30mm
|
SNXXXXXXXXXX/15949-
|
| 25. |
862713
|
[1] |
Spacer sleeve
|
SNXXXXXXXXXX/15949-
|
| 26. |
1275379
|
[1] |
Gasket
|
SN-XXXXXXXXXX/15948
|
| 27. |
421753
|
[1] |
Oil filler cap
|
SN-XXXXXXXXXX/15948
|
| 27. |
1275403
|
[1] |
Oil filler cap
|
SNXXXXXXXXXX/15949-
|
| 28. |
849265
|
[1] |
Cap
|
Alt
|
| 29. |
849266
|
[1] |
Gasket
|
|
| 30. |
946173
|
[3] |
Flange screw
|
|
| 31. |
849249
|
[1] |
Bracket
|
|
| 32. |
862856
|
[2] |
Tube
|
Alt
|
| 33. |
11996
|
[2] |
Gasket
|
Alt
|
| 34. |
862572
|
[2] |
Nipple
|
Alt
|
| 35. |
849975
|
[2] |
Oil dipstick
|
Alt
|
| 36. |
848867
|
[2] |
Bracket
|
|
| 37. |
946440
|
[4] |
Flange screw
|
|
| 38. |
848871
|
[1] |
Suction pipe
|
|
| 39. |
965184
|
[2] |
Flange screw
|
|
| 40. |
848870
|
[1] |
Flange
|
|
| 41. |
848868
|
[1] |
Bracket
|
|
| 42. |
848864
|
[1] |
Suction pipe
|
|
| 43. |
1543579
|
[6] |
Sealing ring
|
|
| 44. |
945444
|
[2] |
Flange screw
|
|
| 45. |
|
|
|
Replaced by 1pc pressure oil 3826186 and 2pcs sealing ring 1543578., Early type
|
| 45. |
3826186
|
[1] |
Oil pressure pipe, incl fitting and ferrule
|
Late type
|
| 46. |
1543578
|
[2] |
Sealing ring
|
Late type
|
| 47. |
965186
|
[4] |
Flange screw
|
|
| 48. |
1543963
|
[1] |
Oil pump
|
For TAMD162A,TAMD162C-B relplaced by 1pc oil pump 3825153, 1pc oil strainer 1543988, 1pc 864897, 1pc
|
| 48. |
|
|
|
|
| 48. |
865282
|
[1] |
Oil pump
|
SNXXXXXXXXXX/8701-25067, Repl by 3825153
|
| 48. |
3825153
|
[1] |
Oil pump
|
|
| 49. |
945444
|
[2] |
Flange screw
|
|
| 50. |
1543608
|
[1] |
Housing
|
|
| 51. |
949659
|
[1] |
O-ring
|
|
| 52. |
1543630
|
[1] |
Compression spring
|
|
| 53. |
1543610
|
[1] |
Peg
|
|
| 54. |
1543964
|
[1] |
Seat
|
|
| 55. |
7745600_001
|
|
Outlet, piston cooling
|
|
| 56. |
7745600_001
|
|
O-ring
|
|
| 57. |
7745600_001
|
|
Stud
|
|
| 58. |
7745600_001
|
|
Lock nut
|
|
