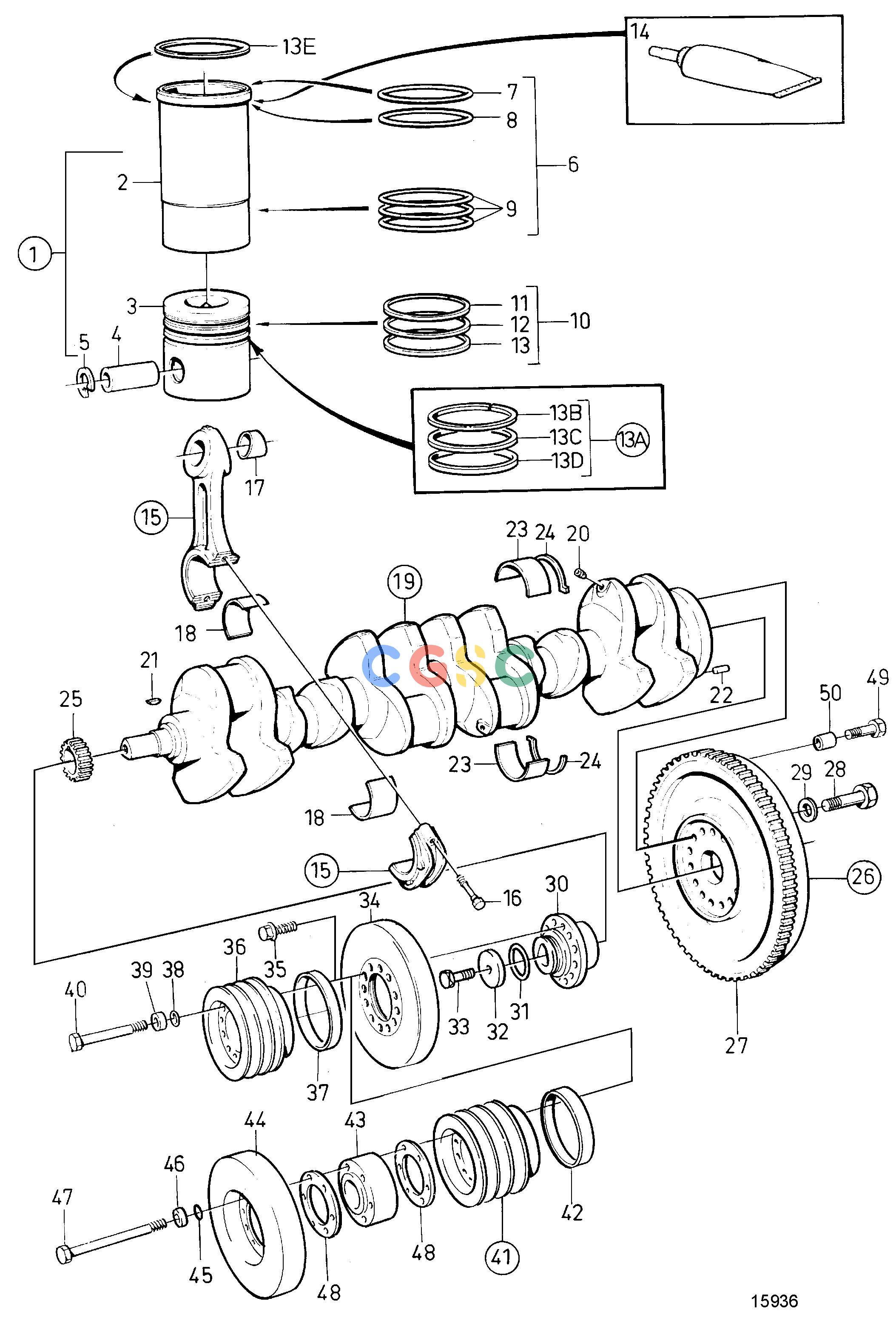

| 1. |
3826843
|
[6] |
Cylinder liner kit, keystone
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
1556940
|
[6] |
Gudgeon pin
|
(1556200) L=120mm
|
| 5. |
914532
|
[12] |
Snap ring
|
|
| 6. |
270935
|
[6] |
Sealing ring kit
|
|
| 7. |
1543507
|
[6] |
Sealing ring
|
|
| 8. |
|
|
|
|
| 9. |
|
|
|
|
| 10. |
3826935
|
[6] |
Piston ring kit, keystone
|
SNXXXXXXXXXX/4410-
|
| 11. |
|
|
|
TH=4,0mm
|
| 12. |
|
|
|
TH=3,5mm
|
| 13. |
|
|
|
|
| 13A. |
276036
|
[6] |
Piston ring kit, not keystone
|
SN-XXXXXXXXXX/4409
|
| 13B. |
|
|
|
TH=2,96mm
|
| 13C. |
|
|
|
TH=3,46mm
|
| 13D. |
|
|
|
|
| 13E. |
1548125
|
[1] |
Shim
|
Shims to adjust the cylinder liner level., TH=0,20mm
|
| 13. |
1548126
|
[1] |
Shim
|
Shims to adjust the cylinder liner level., TH=0,30mm
|
| 13. |
1548127
|
[1] |
Shim
|
Shims to adjust the cylinder liner level., TH=0,50mm
|
| 14. |
1161231
|
[1] |
Sealant
|
304ml
|
| 14. |
1161277
|
[1] |
Sealant
|
10g
|
| 15. |
863794
|
[6] |
Connecting rod
|
Classified
|
| 16. |
1543035
|
[12] |
Flange screw
|
|
| 17. |
1543034
|
[6] |
Bushing
|
|
| 18. |
270796
|
[6] |
Big-end bearing kit
|
Std D
|
| 18. |
270797
|
[6] |
Big end bearing kit
|
U.S=0,25mm
|
| 18. |
270798
|
[6] |
Big end bearing kit
|
U.S=0,51mm
|
| 18. |
270799
|
[6] |
Big end bearing kit
|
U.S=0,76mm
|
| 19. |
863792
|
[1] |
Crankshaft
|
Classified
|
| 20. |
968060
|
[6] |
Plug, with sealant
|
Repl by 978130
|
| 20. |
978130
|
[6] |
Plug, without sealant
|
|
| 21. |
422253
|
[1] |
Woodruff key
|
|
| 22. |
950645
|
[1] |
Pin
|
|
| 23. |
270792
|
[7] |
Main bearing kit
|
Std D
|
| 23. |
270793
|
[7] |
Main bearing kit
|
U.S=0,25mm
|
| 23. |
270794
|
[7] |
Main bearing kit
|
U.S=0,51mm
|
| 23. |
270795
|
[7] |
Main bearing kit
|
U.S=0,76mm
|
| 24. |
270929
|
[1] |
Thrust washer kit
|
Std D
|
| 24. |
270930
|
[1] |
Thrust washer kit
|
O.S=0,10mm
|
| 24. |
270931
|
[1] |
Thrust washer kit
|
O.S=0,20mm
|
| 24. |
270932
|
[1] |
Thrust washer kit
|
O.S=0,30mm
|
| 25. |
1543444
|
[1] |
Gear
|
|
| 26. |
3825678
|
[1] |
Flywheel
|
|
| 27. |
20711957
|
[1] |
Ring gear
|
(8193939)
|
| 28. |
849912
|
[14] |
Hexagon screw
|
|
| 29. |
1543563
|
[14] |
Washer
|
|
| 30. |
848851
|
[1] |
Hub
|
|
| 31. |
945512
|
[1] |
O-ring
|
To be used when belt-pulley, alternative power-take-off is mounted.
|
| 32. |
422124
|
[1] |
Washer
|
|
| 33. |
862504
|
[1] |
Screw
|
|
| 34. |
8193930
|
[1] |
Vibration damper
|
(1543834)
|
| 35. |
946472
|
[6] |
Flange screw
|
L=30mm
|
| 36. |
863272
|
[1] |
V-belt pulley, 12-hole
|
3-grooves, D=208mm
|
| 37. |
3829683
|
[1] |
Wear ring, crankshaft seal
|
|
| 38. |
955974
|
[12] |
O-ring
|
|
| 39. |
4956010
|
[12] |
Washer
|
|
| 40. |
970960
|
[12] |
Hexagon screw, l=100mm
|
|
| 41. |
|
|
|
SN1101051791/XXXXX-
|
| 41. |
3825893
|
[1] |
V-belt pulley, 12-hole
|
3-grooves, D=190mm
|
| 42. |
3829683
|
[1] |
Wear ring, crankshaft seal
|
|
| 43. |
|
|
|
Earlier production of 6pcs of screw is replaced by 12pcs screw., SN-1101051790/XXXXX
|
| 43. |
3825885
|
[1] |
Hub, 12-hole
|
SN1101051791/XXXXX-
|
| 44. |
8193930
|
[1] |
Vibration damper
|
(1543834)
|
| 45. |
955974
|
[12] |
O-ring, 12-hole
|
SN1101051791/XXXXX-
|
| 46. |
4956010
|
[12] |
Washer, 12-hole
|
SN1101051791/XXXXX-
|
| 47. |
973253
|
[12] |
Hexagon screw, l=180mm
|
SN1101051791/XXXXX-
|
| 48. |
|
|
|
Earlier production of 6pcs of screw is replaced by 12pcs screw., SN-1101051790/XXXXX
|
| 48. |
3825886
|
[2] |
Gasket, 12-hole
|
SN1101051791/XXXXX-
|
| 49. |
955565
|
[8] |
Hexagon screw, generator connection
|
|
| 50. |
969300
|
[8] |
Spacer sleeve, generator connection
|
|
