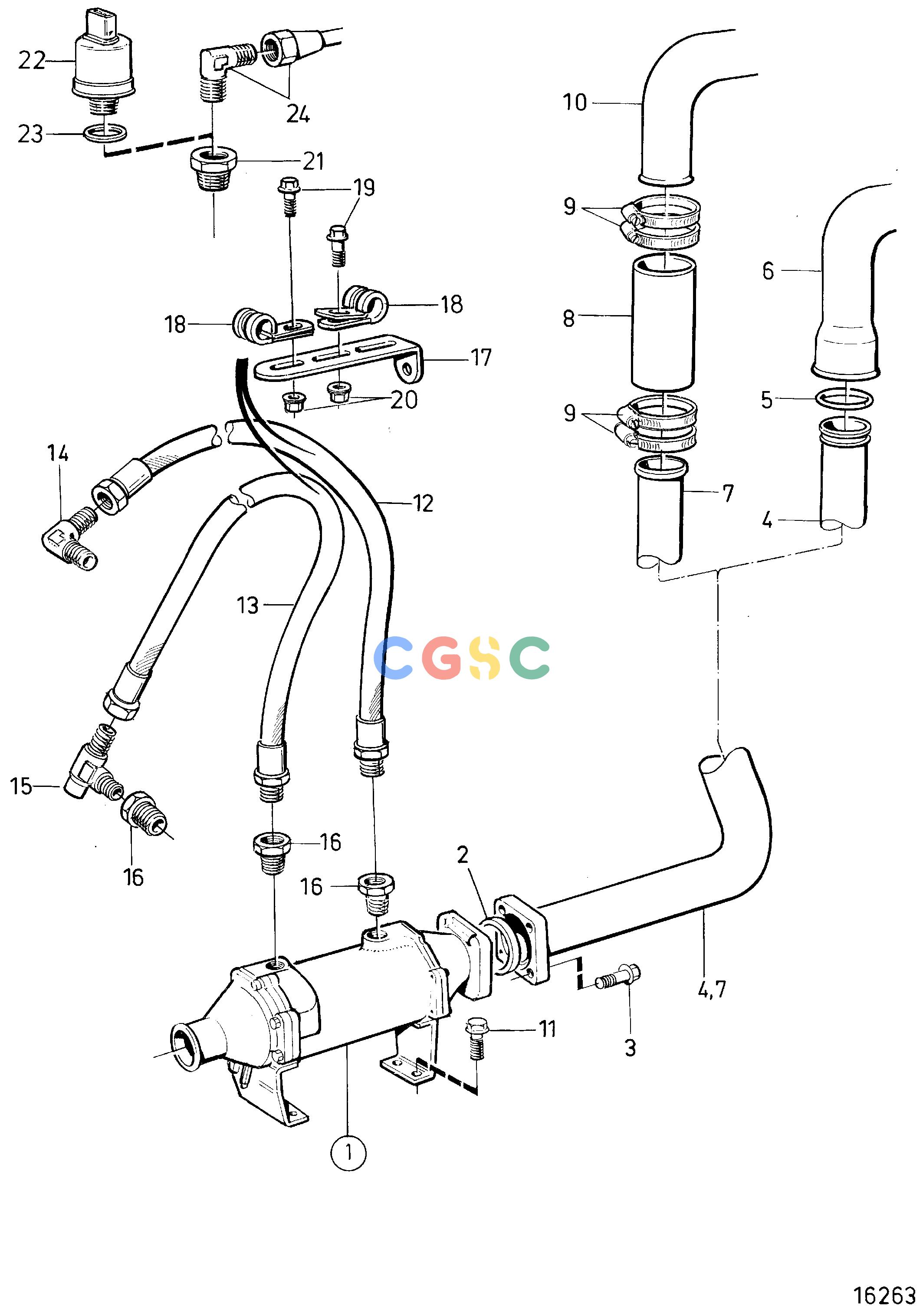

| 1. |
3825936
|
[1] |
Oil cooler
|
|
| 1. |
|
|
|
|
| 2. |
843584
|
[1] |
Gasket
|
|
| 3. |
946173
|
[4] |
Flange screw
|
|
| 4. |
849323
|
[1] |
Coolant pipe
|
For sea water cooling replaced by 1pc coolant pipe 866772, 1pc coolant pipe 866773, 4pcs clamp 96167
|
| 5. |
863209
|
[1] |
Sealing ring
|
SN-1101050801/XXXXX
|
| 6. |
849331
|
[1] |
Coolant pipe, l=965mm
|
For separately mounted (central-) heat exchanger and keel cooling., Replaced by 1pc coolant pipe 866
|
| 6. |
849342
|
[1] |
Coolant pipe, l=1172mm
|
For engine mounted heat exchanger., Replaced by 1pc coolant pipe 866772, 1pc coolant pipe 866773, 4p
|
| 7. |
866773
|
[1] |
Coolant pipe
|
SN1101050802/XXXXX-
|
| 8. |
952980
|
[1] |
Hose, l=190mm
|
SN1101050802/XXXXX-
|
| 9. |
961673
|
[4] |
Hose clamp
|
SN1101050802/XXXXX-
|
| 10. |
866771
|
[1] |
Coolant pipe, l=965mm
|
For separately mounted (central-) heat exchanger and keel cooling., SN1101050802/XXXXX-
|
| 10. |
866772
|
[1] |
Coolant pipe, l=1172mm
|
For engine mounted heat exchanger., SN1101050802/XXXXX-
|
| 11. |
946329
|
[4] |
Flange screw
|
(973083)
|
| 12. |
863649
|
[1] |
Lubricating oil hose
|
L=1300mm
|
| 13. |
862156
|
[1] |
Lubricating oil hose
|
L=1550mm
|
| 14. |
837063
|
[1] |
Elbow union
|
|
| 15. |
824479
|
[1] |
Elbow union
|
|
| 16. |
949707
|
[3] |
Reduction nipple
|
|
| 17. |
965559
|
[1] |
Bracket
|
|
| 18. |
952637
|
[2] |
Clamp
|
|
| 19. |
946544
|
[2] |
Flange screw
|
|
| 20. |
945407
|
[2] |
Flange nut
|
|
| 21. |
942919
|
[1] |
Reduction nipple
|
|
| 22. |
866839
|
[1] |
Sensor, oil
|
Std
|
| 23. |
11998
|
[1] |
Gasket
|
Alt
|
| 23. |
947624
|
[1] |
Gasket
|
Alt
|
| 24. |
7745600_123
|
|
Pressure sensor, oil
|
|
