沃尔沃零件查询TAMD162A; TAMD162B; TAMD162C; TAMD162C-BCooling SystemExpansion TankEPC Volvo Penta Parts catalog

作者：广数供应链运营团队
浏览数：
时间：2025-01-24 01:48:11
Parts Contact me WhatsApp

工程机械零件图册查询

专业 覆盖挖掘机、装载机、推土机全系配件
立即查询
Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴 Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴

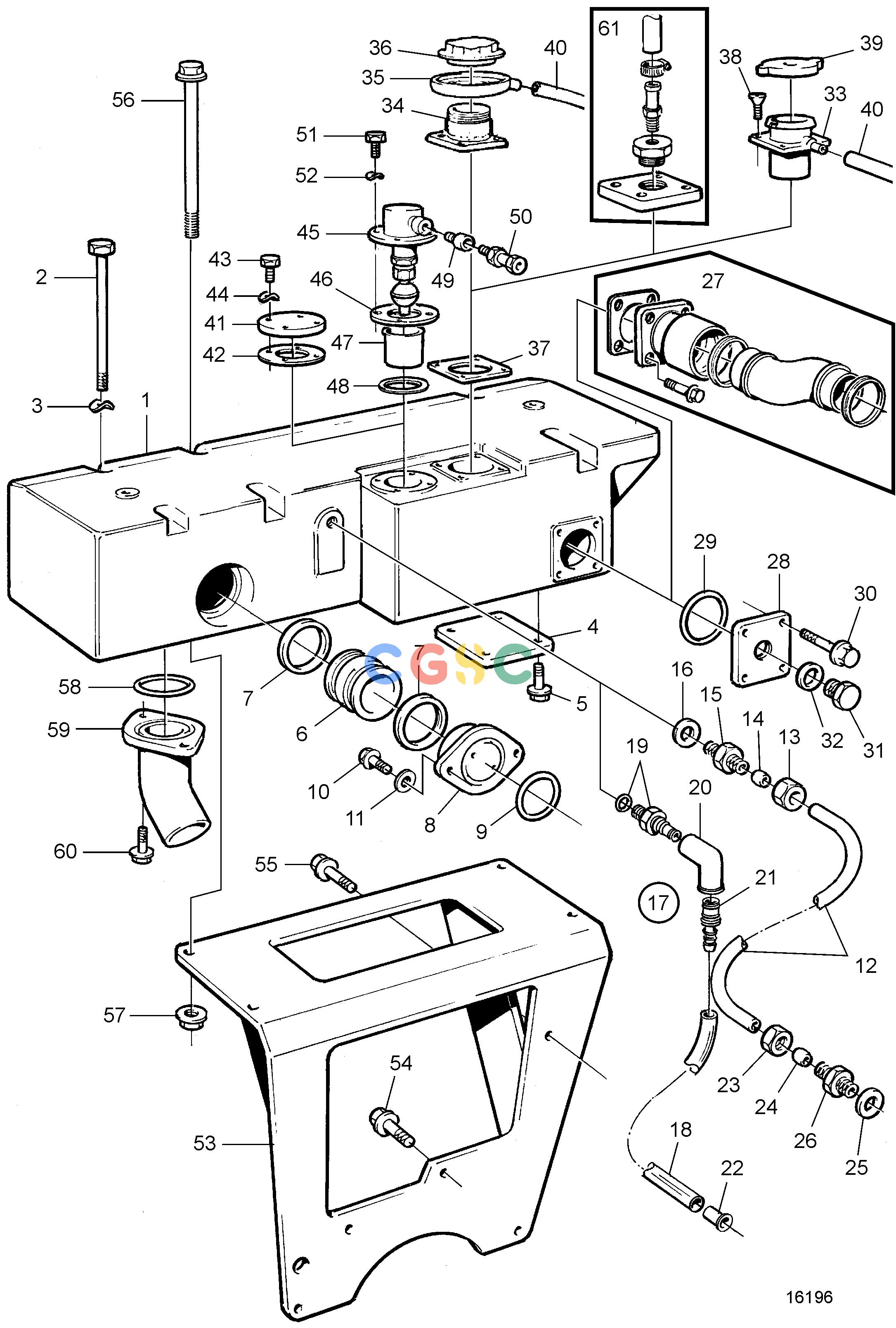

Pos. Part No Qty Parts name Comments
1. 862705 [1]   Expansion tank Repl by 864609, SN-1101041631/XXXXX
1. 864609 [1]   Expansion tank SN1101041632/XXXXX-
2. 970966 [6]   Hexagon screw For engine mounted heat exchanger.
3. 941908 [6]   Spring washer For engine mounted heat exchanger.
4. 862858 [1]   Cover SN-1101041631/XXXXX
5. 946173 [4]   Flange screw SN-1101041631/XXXXX
6. 3826974 [1]   Connector
7. 863210 [2]   Sealing ring
8. 866566 [1]   Flange connection, therm. housing For engine mounted heat exchanger.
8. 866567 [1]   Flange connection, therm. housing For separately mounted (central-) heat exchanger and keel cooling.
9. 925078 [1]   O-ring
10. 945444 [2]   Flange screw
11. 976944 [2]   Washer (966674)
12. 3826170 [1]   Air vent pipe Early type
13. 956981 [1]   Fitting nut Early type
14. 956967 [1]   Ferrule Early type
15. 963947 [1]   Nipple Early type
16. 18665 [1]   Gasket Early type
17. 3826170 [1]   Air vent pipe Late type
18. 980831 [1]   Tube, l=185mm Late type, (976133)
19. 969323 [1]   Nipple Late type
20. 976958 [1]   Elbow nipple Late type
21. 976444 [1]   Nipple Late type
22. 949361 [1]   Support sleeve Late type
23. 956981 [1]   Fitting nut
24. 956967 [1]   Ferrule
25. 18665 [1]   Gasket
26. 7745600_067     Nipple
27. 7745600_074     Connector, charge air cooler
28. 849843 [1]   Cap For engine mounted heat exchanger.
29. 1664473 [1]   O-ring For engine mounted heat exchanger.
30. 945444 [4]   Flange screw For engine mounted heat exchanger.
31. 914394 [1]   Plug For engine mounted heat exchanger.
32. 947629 [1]   Gasket For engine mounted heat exchanger.
33. 823580 [1]   Filler neck Replaced by 1pc filler neck 3825064, 1pc rubber collar 3828863 and 1pc pressure cap 1674083
34. 3825064 [1]   Filler neck
35. 3828863 [1]   Rubber collar
36. 1674083 [1]   Pressure cap
37. 842137 [1]   Gasket
38. 956223 [4]   Cross recessed screw
39. 350578 [1]   Pressure cap, 50 kpa Repl by 866095
39. 866095 [1]   Pressure cap, 70 kpa
40. 192618 [1]   Hose L=1100mm
41. 843760 [1]   Cap
42. 863715 [1]   Gasket
43. 969405 [4]   Six point socket scr (955244)
44. 941905 [4]   Spring washer
45. 837797 [1]   Float breaker Replaced by 1pc level guard 872315, 4pcs screw 941460 and 1pc 863715 gasket., SN-1101018222/XXXXX
45. 863777 [1]   Level guard Replaced by 1pc level guard 872315, 4pcs screw 941460 and 1pc 863715 gasket., SN1101018223/XXXXX-
45.     SN-1101039311/XXXXX
45. 872315 [1]   Level guard SN1101039312/XXXXX-
46. 863715 [1]   Gasket SN1101018223/XXXXX-
47. 862101 [1]   Splash pipe Repl by 863711, SN-1101021147/XXXXX
47. 863711 [1]   Tube SN1101021148/XXXXX-
48. 862201 [1]   Gasket SN-1101021147/XXXXX
49. 843906 [1]   Reduction sleeve SN-1101039311/XXXXX
50. 881191 [2]   Grommet
51. 969407 [4]   Six point socket scr, hexagon Alt, SN-1101039311/XXXXX, (955246)
51. 956078 [4]   Cross recessed screw, cross recessed Alt, SN-1101039311/XXXXX
51. 941460 [4]   Hex. socket screw, hexagon socket SN1101039312/XXXXX-
52. 941905 [4]   Spring washer
53. 862548 [1]   Bracket For separately mounted (central-) heat exchanger and keel cooling.
54. 965189 [4]   Flange screw For separately mounted (central-) heat exchanger and keel cooling.
55. 973924 [1]   Flange screw For separately mounted (central-) heat exchanger and keel cooling., (965179)
56. 973253 [4]   Hexagon screw For separately mounted (central-) heat exchanger and keel cooling.
57. 971095 [4]   Flange nut For separately mounted (central-) heat exchanger and keel cooling.
58. 925079 [1]   O-ring For separately mounted (central-) heat exchanger and keel cooling.
59. 864383 [1]   Coolant pipe For separately mounted (central-) heat exchanger and keel cooling.
60. 946329 [2]   Flange screw For separately mounted (central-) heat exchanger and keel cooling., (973083)
61. 7745600_064     Connector
