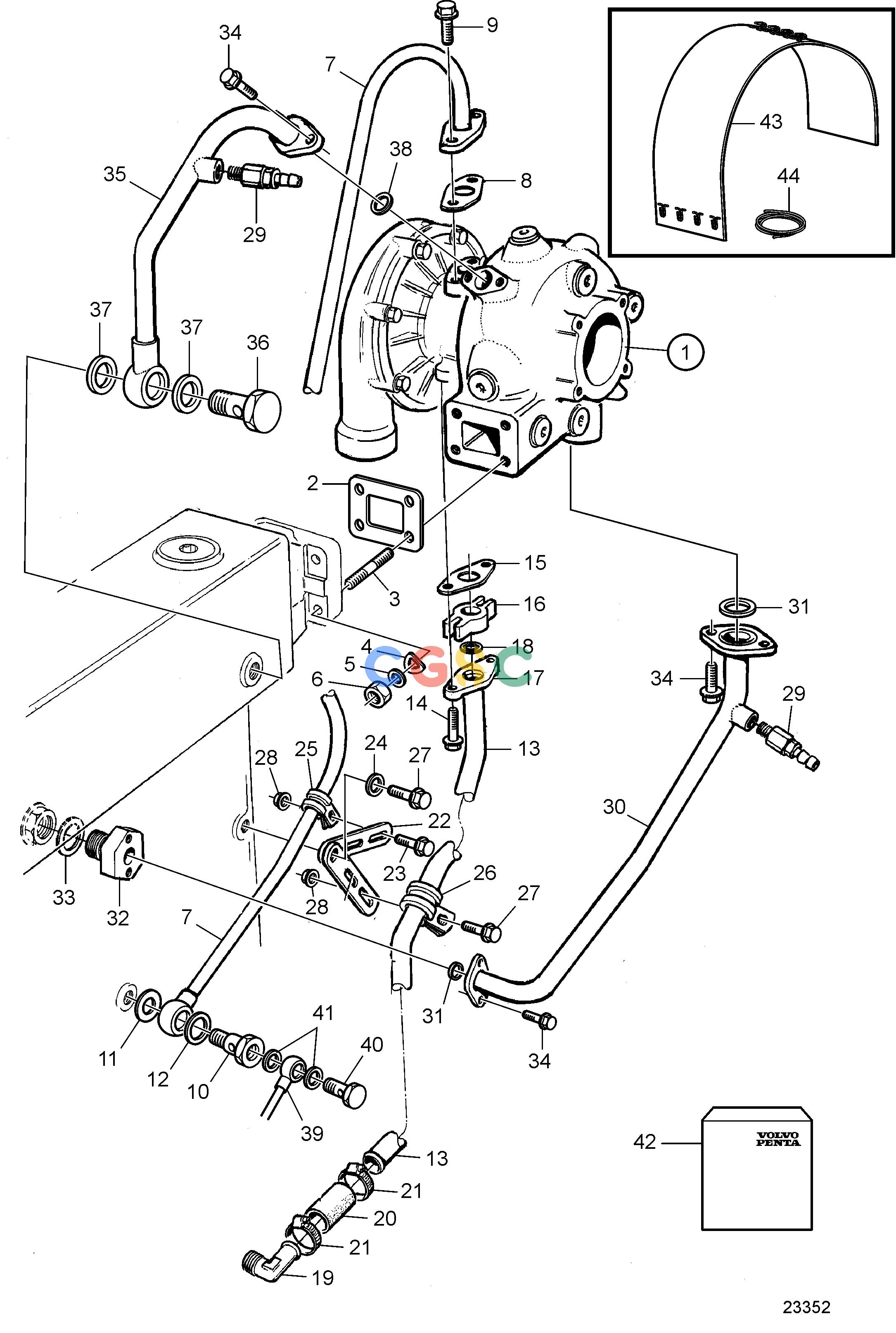

| 1. |
3802128
|
[1] |
Turbocharger
|
|
| 1. |
|
|
|
|
| 2. |
420618
|
[1] |
Gasket
|
|
| 3. |
943883
|
[4] |
Stud
|
|
| 4. |
940097
|
[4] |
Washer
|
|
| 5. |
942336
|
[4] |
Spring washer
|
|
| 6. |
940183
|
[4] |
Hexagon nut
|
|
| 7. |
3829662
|
[1] |
Oil pressure pipe, oil-pressure
|
|
| 8. |
420641
|
[1] |
Plane gasket
|
|
| 9. |
946173
|
[2] |
Flange screw
|
|
| 10. |
479464
|
[1] |
Hollow screw, cylinder block
|
|
| 11. |
942703
|
[1] |
Gasket
|
|
| 12. |
11998
|
[1] |
Gasket
|
|
| 13. |
864391
|
[1] |
Oil return pipe, oil drain
|
|
| 14. |
947760
|
[2] |
Flange screw
|
|
| 15. |
420643
|
[1] |
Plane gasket
|
|
| 16. |
8148729
|
[1] |
Connector
|
|
| 17. |
469543
|
[1] |
Pipe flange
|
|
| 18. |
469601
|
[1] |
Rubber moulding
|
|
| 19. |
479959
|
[1] |
Elbow nipple, cylinder block
|
|
| 20. |
466328
|
[1] |
Hose
|
|
| 21. |
994559
|
[2] |
Hose clamp
|
|
| 22. |
965539
|
[2] |
Bracket
|
|
| 23. |
946544
|
[1] |
Flange screw
|
|
| 24. |
940280
|
[1] |
Spring washer
|
|
| 25. |
952627
|
[1] |
Clamp
|
|
| 26. |
952632
|
[1] |
Clamp
|
|
| 27. |
946544
|
[2] |
Flange screw
|
|
| 28. |
945407
|
[2] |
Flange nut
|
|
| 29. |
949918
|
[2] |
Shut-off cock
|
|
| 30. |
864599
|
[1] |
Coolant pipe, coolant water
|
|
| 31. |
831622
|
[2] |
Sealing ring
|
|
| 32. |
847492
|
[1] |
Nipple
|
|
| 33. |
190957
|
[1] |
Gasket
|
|
| 34. |
946544
|
[6] |
Flange screw
|
|
| 35. |
864600
|
[1] |
Coolant pipe, coolant water
|
|
| 36. |
866364
|
[1] |
Hollow screw
|
|
| 37. |
947627
|
[2] |
Gasket
|
|
| 38. |
831622
|
[1] |
Sealing ring
|
|
| 39. |
422245
|
[1] |
Oil feed pipe, fuel inj. pump
|
|
| 40. |
969299
|
[1] |
Hollow screw
|
|
| 41. |
11994
|
[2] |
Gasket
|
|
| 42. |
876714
|
[1] |
Gasket kit, turbo connect.
|
See group 99
|
| 43. |
3812603
|
[1] |
Insulation
|
Aux
|
| 44. |
941710
|
[1] |
Locking wire
|
Aux
|
