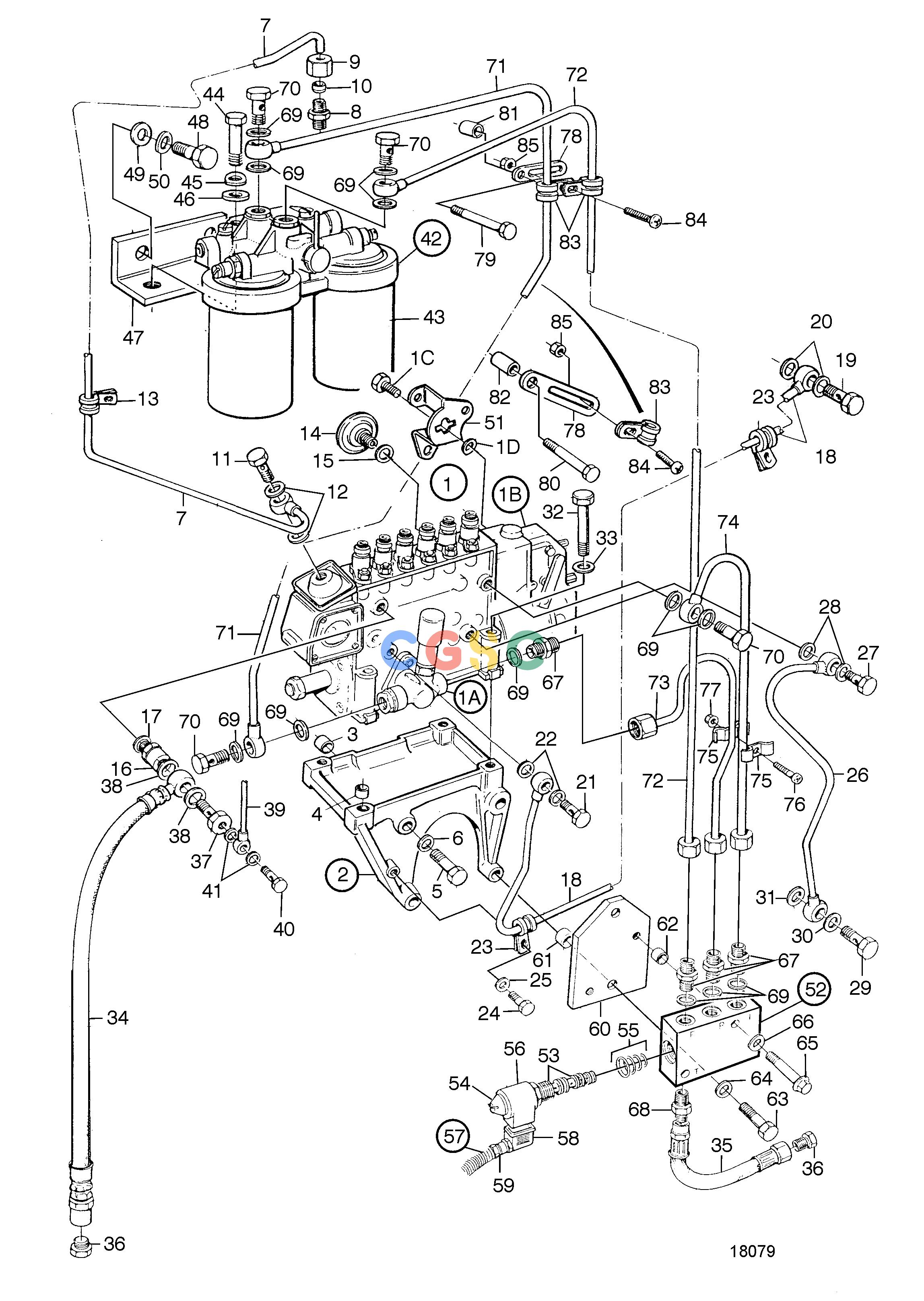

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3803795 | [1] | Injection pump | |
| 1A. | 3825429 | [1] | Feed pump | |
| 1. | ||||
| 1B. | 3825498 | [1] | Governor | |
| 1C. | 955270 | [1] | Hexagon screw | |
| 1D. | 941906 | [1] | Spring washer | |
| 2. | 478647 | [1] | Bracket | |
| 3. | 423161 | [2] | Guide sleeve | |
| 4. | 417588 | [1] | Guide sleeve | |
| 5. | 955566 | [2] | Hexagon screw | |
| 6. | 940280 | [2] | Spring washer | |
| 7. | 864368 | [1] | Tube | |
| 8. | 954379 | [1] | Nipple, induction manifold | |
| 9. | 954357 | [1] | Fitting nut | |
| 10. | 954365 | [1] | Fitting | |
| 11. | 969299 | [1] | Hollow screw | |
| 12. | 11994 | [2] | Gasket | |
| 13. | 942400 | [2] | Clamp | |
| 14. | 477173 | [1] | Pressure equalizer | |
| 15. | 969011 | [1] | Gasket | |
| 16. | 3825154 | [1] | Overflow valve | |
| 17. | 15304 | [1] | Gasket | |
| 18. | 7746440_037 | Oil feed pipe, cylinder block | ||
| 19. | 7746440_037 | Hollow screw | ||
| 20. | 7746440_037 | Gasket | ||
| 21. | 48634 | [1] | Hollow screw | |
| 22. | 947281 | [2] | Gasket | |
| 23. | 952623 | [2] | Clamp | |
| 24. | 955512 | [1] | Hexagon screw | |
| 25. | 949607 | [1] | Spring washer | |
| 26. | 422246 | [1] | Return pipe, oil drain | |
| 27. | 25167 | [1] | Hollow screw | |
| 28. | 969011 | [2] | Gasket | |
| 29. | 942007 | [1] | Hollow screw, cylinder block | |
| 30. | 11998 | [1] | Gasket | |
| 31. | 942703 | [1] | Gasket | |
| 32. | 940156 | [4] | Hexagon screw | |
| 33. | 190509 | [4] | Washer | |
| 34. | 3830312 | [1] | Hose | |
| 35. | 3830309 | [1] | Hose | |
| 36. | 22753 | [2] | Nipple | |
| 37. | 16496 | [1] | Hollow screw | |
| 38. | 969011 | [2] | Gasket | |
| 39. | 7746440_031 | Leak-off pipe | ||
| 40. | 7746440_031 | Hollow screw | ||
| 41. | 7746440_031 | Gasket | ||
| 42. | 864399 | [1] | Fuel filter | |
| 42. | ||||
| 43. | 3825133 | [2] | Fuel filter | |
| 44. | 940162 | [2] | Hexagon screw | |
| 45. | 942336 | [2] | Spring washer | |
| 46. | 960142 | [2] | Washer | |
| 47. | 845319 | [1] | Bracket | |
| 48. | 940160 | [2] | Hexagon screw | |
| 49. | 960144 | [2] | Washer | |
| 50. | 941909 | [2] | Spring washer | |
| 51. | 848677 | [1] | Intermediate lever, stop solenoid | |
| 52. | 3828983 | [1] | Fuel valve | |
| 53. | 3825235 | [1] | Valve | |
| 54. | ||||
| 55. | 3828981 | [1] | Gasket kit | |
| 56. | 3825240 | [1] | Magnet | |
| 57. | 873631 | [1] | Cable harness | |
| 58. | ||||
| 59. | ||||
| 60. | 3826145 | [1] | Bracket | (3825601) |
| 61. | 1678297 | [2] | Spacer sleeve | |
| 62. | 843075 | [2] | Spacer sleeve | |
| 63. | 955570 | [2] | Hexagon screw | |
| 64. | 940280 | [2] | Spring washer | |
| 65. | 973924 | [2] | Flange screw | |
| 66. | 976944 | [2] | Washer | |
| 67. | 941754 | [4] | Nipple | Included in shut off valve 3828983 |
| 68. | 977677 | [1] | Nipple | |
| 69. | 969011 | [10] | Gasket | |
| 70. | 25167 | [4] | Hollow screw | |
| 71. | 864343 | [1] | Fuel pipe | |
| 72. | 864342 | [1] | Fuel pipe | |
| 73. | 3826765 | [1] | Fuel pipe | |
| 74. | 3826766 | [1] | Fuel pipe | |
| 75. | 404279 | [2] | Attaching clamp | |
| 76. | 950047 | [1] | Cross recessed screw | |
| 77. | 955825 | [1] | Hexagon nut | |
| 78. | 965535 | [2] | Bracket | |
| 79. | 959800 | [1] | Hexagon screw | L=178mm |
| 80. | 959799 | [1] | Hexagon screw | L=165mm |
| 81. | 820917 | [1] | Spacer sleeve | L=11mm |
| 82. | 822255 | [1] | Spacer sleeve | L=24mm |
| 83. | 952625 | [3] | Clamp | |
| 84. | 950047 | [2] | Cross recessed screw | |
| 85. | 955825 | [2] | Hexagon nut |
