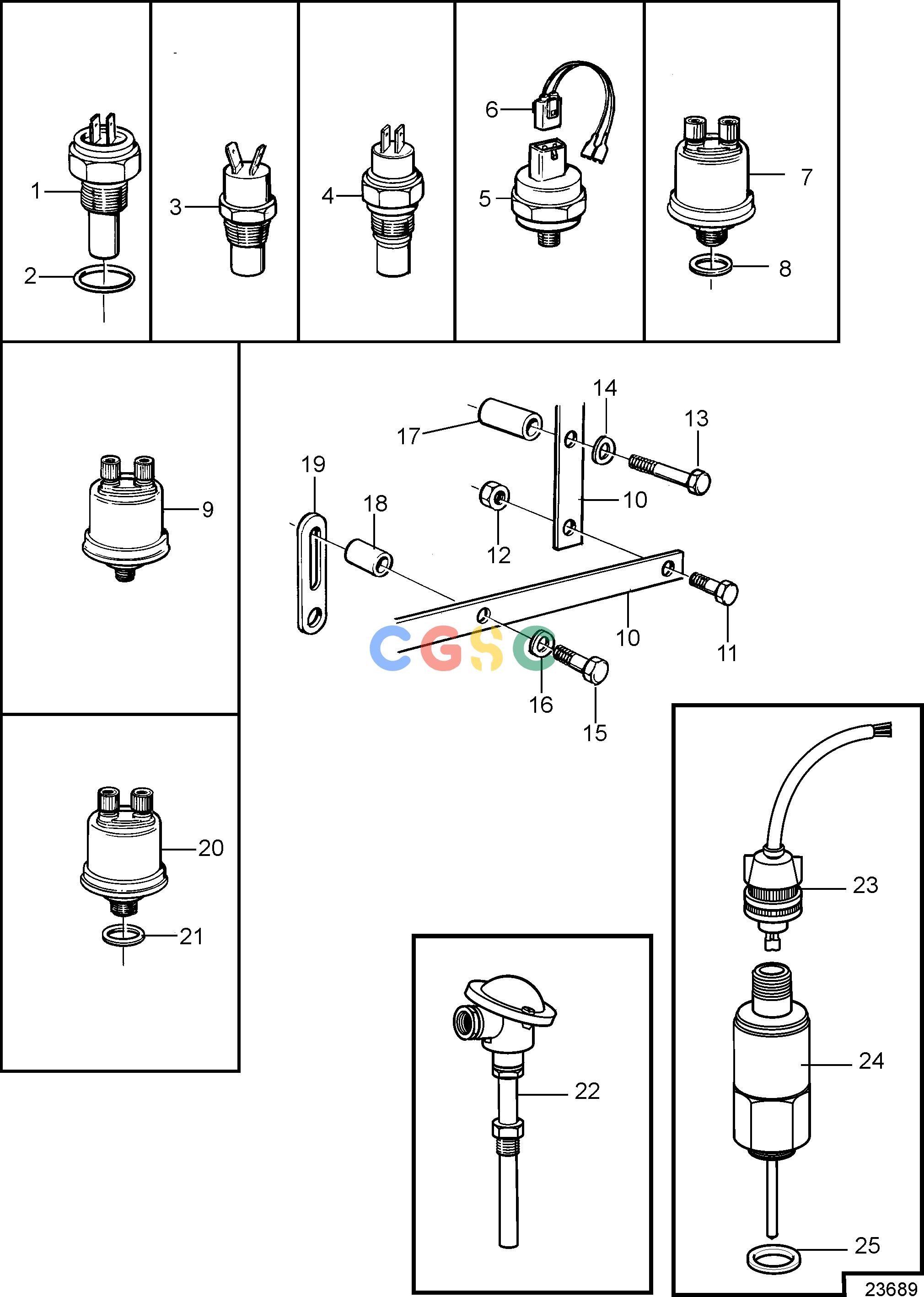

| 1. |
3013297
|
[1] |
Tachometer sensor
|
|
| 2. |
863604
|
[1] |
Gasket
|
|
| 3. |
822858
|
[1] |
Thermo monitor, coolant temp.
|
97°C
|
| 3. |
822859
|
[1] |
Contact, charge air temp
|
KC, 86°C
|
| 4. |
827150
|
[1] |
Sensor, coolant temp.
|
90°C
|
| 4. |
837044
|
[1] |
Temperature sensor, coolant temp.
|
For double instruments.
|
| 5. |
863169
|
[1] |
Pressure monitor, oil pressure-engine
|
0,7bar
|
| 6. |
873601
|
[1] |
Cable
|
|
| 7. |
872196
|
[1] |
Pressure sensor, turbo
|
0-3 bar
|
| 8. |
947624
|
[1] |
Gasket
|
|
| 9. |
866835
|
[1] |
Sensor, oil-engine
|
0-10 bar
|
| 9. |
866834
|
[1] |
Pressure sensor, oil-engine
|
For double instruments., 0-10 bar
|
| 10. |
|
|
|
|
| 11. |
946544
|
[3] |
Flange screw
|
M6x16mm
|
| 12. |
945407
|
[1] |
Flange nut
|
M6
|
| 13. |
940161
|
[1] |
Hexagon screw
|
5/16
|
| 14. |
941907
|
[1] |
Spring washer
|
|
| 15. |
940162
|
[2] |
Hexagon screw
|
3/8
|
| 16. |
942336
|
[2] |
Spring washer
|
|
| 17. |
820508
|
[1] |
Spacer sleeve
|
L=28mm
|
| 18. |
827861
|
[2] |
Spacer sleeve
|
L=19mm
|
| 19. |
849138
|
[1] |
Bracket
|
|
| 20. |
866840
|
[1] |
Pressure sensor, reverseing gear
|
0-30 bar
|
| 21. |
947624
|
[1] |
Gasket
|
|
| 22. |
3829871
|
[1] |
Temperature sensor
|
|
| 23. |
874160
|
[1] |
Cable harness, level guard
|
|
| 24. |
874159
|
[1] |
Level guard, expansion tank
|
|
| 25. |
947624
|
[1] |
Gasket
|
|
