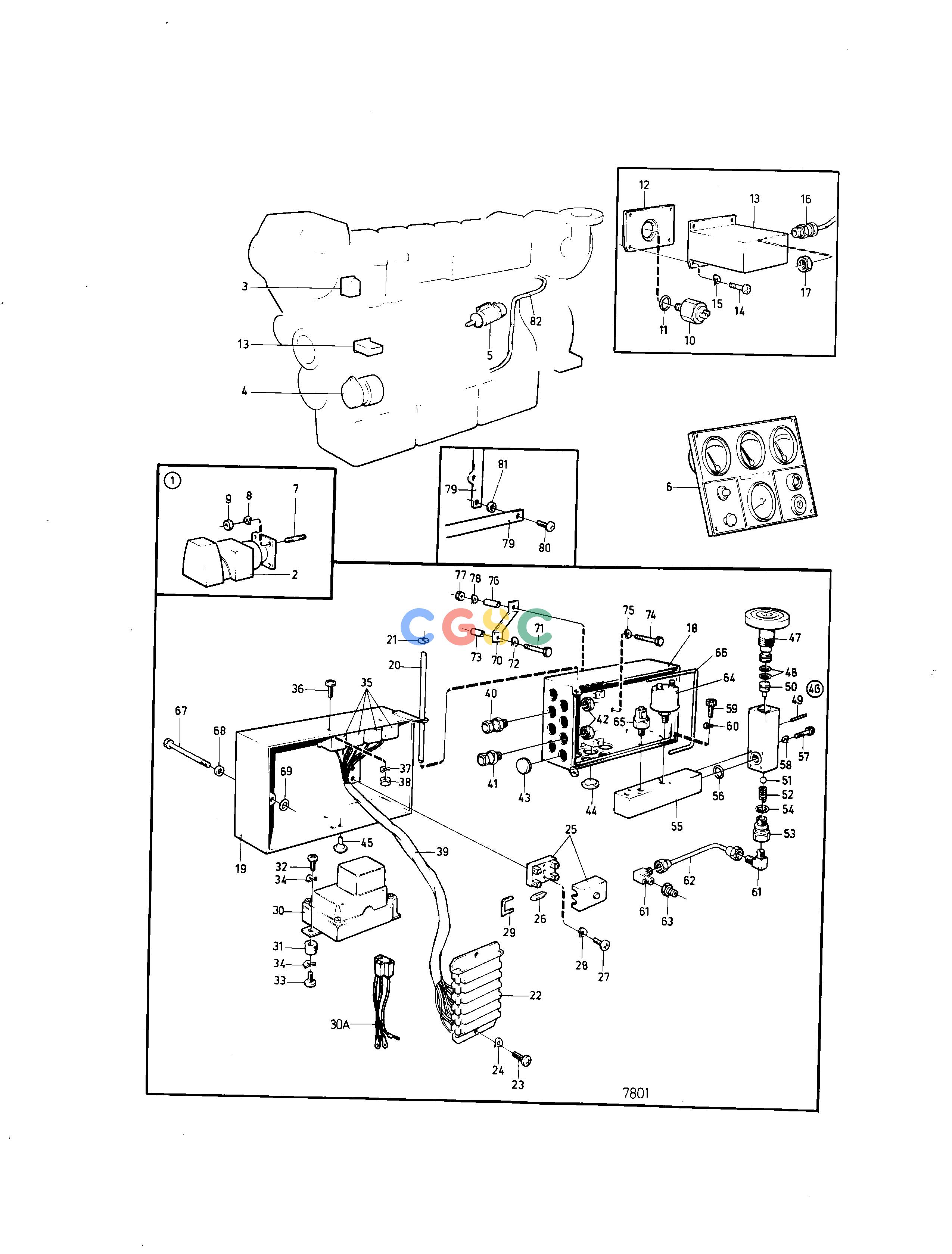

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 843510 | [1] | Starter motor | 24V, repl by 847307 |
| 1. | 847307 | [1] | Starter motor | 24V later prod |
| 2. | 7743250_108 | starter casing and installation comps | ||
| 2. | ||||
| 3. | 7743250_107 | thermoswitch and protecting box with installation comps | ||
| 3. | ||||
| 4. | 7743250_101 | alternator and installation comps | ||
| 4. | ||||
| 5. | ||||
| 6. | ||||
| 6. | 844665 | [1] | Instrument panel | 24V |
| 7. | 953486 | [3] | Stud | |
| 8. | 942336 | [3] | Spring washer | |
| 9. | 955827 | [3] | Hexagon nut | |
| 10. | 354671 | [1] | Tachometer sensor | |
| 11. | 925059 | [1] | O-ring | |
| 12. | 843103 | [1] | Attaching plate | |
| 13. | 843102 | [1] | Box | |
| 14. | 956060 | [4] | Cross recessed screw | |
| 15. | 941904 | [4] | Spring washer | |
| 16. | 822327 | [1] | Grommet | |
| 17. | 880243 | [1] | Nut | |
| 18. | 837812 | [1] | Clutch housing | |
| 19. | 837866 | [1] | Cover | |
| 20. | 837838 | [1] | Shaft | |
| 21. | 951667 | [2] | E-circlip | |
| 22. | 837829 | [1] | Terminal block | |
| 23. | 956074 | [2] | Cross recessed screw | |
| 24. | 941905 | [2] | Spring washer | |
| 25. | 88578 | [2] | Fuse box | |
| 26. | 943905 | [2] | Fuse | 25A |
| 26. | 942785 | [2] | Fuse | 16A |
| 27. | 956060 | [4] | Cross recessed screw | |
| 28. | 941904 | [4] | Spring washer | |
| 29. | 842390 | [1] | Bridge connector | |
| 30. | 4803292 | [1] | Charge regulator | 24V 25A |
| 30A. | 845976 | [1] | Cable block | |
| 31. | 899709 | [3] | Vibration damper | |
| 32. | 956091 | [3] | Cross recessed screw | |
| 33. | 956092 | [3] | Cross recessed screw | |
| 34. | 941906 | [6] | Spring washer | |
| 35. | 1504951 | [4] | Relay | |
| 36. | 956074 | [2] | Cross recessed screw | |
| 37. | 941905 | [2] | Spring washer | |
| 38. | 955780 | [2] | Hexagon nut | |
| 39. | 842124 | [1] | Cable block | |
| 40. | 822327 | [2] | Grommet | |
| 40. | 881520 | [1] | Grommet | |
| 41. | 881192 | [2] | Grommet | |
| 42. | 880243 | [4] | Nut | |
| 42. | 880755 | [1] | Nut | |
| 43. | 94081 | [9] | Plug | |
| 44. | 662620 | [2] | Rubber button | |
| 45. | 655545 | [3] | Rubber button | Alt |
| 46. | 837928 | [1] | Valve | |
| 47. | ||||
| 48. | 925052 | [2] | O-ring | |
| 49. | 951938 | [1] | Spring pin | |
| 50. | 837932 | [1] | Intermediate section | |
| 51. | 70472 | [1] | Ball | |
| 52. | 832441 | [1] | Spring | |
| 53. | ||||
| 54. | 955985 | [1] | O-ring | |
| 55. | 837938 | [1] | Spacer | |
| 56. | 955984 | [1] | O-ring | |
| 57. | 959181 | [4] | Hex. socket screw | |
| 58. | 941904 | [4] | Spring washer | |
| 59. | 942001 | [4] | Hex. socket screw | |
| 60. | 941906 | [4] | Spring washer | |
| 61. | 954342 | [2] | Elbow nipple | |
| 62. | 844074 | [1] | Oil pressure pipe | |
| 63. | 180002 | [1] | Nipple | |
| 64. | 881432 | [1] | Sensor | |
| 65. | 848367 | [1] | Pressure switch | Stop |
| 65. | 848368 | [1] | Pressure switch | Alarm |
| 66. | 842224 | [1] | Sealing strip | L=1000mm |
| 67. | 955261 | [1] | Hexagon screw | |
| 68. | 960138 | [1] | Washer | |
| 69. | 955978 | [1] | O-ring | |
| 70. | 844079 | [1] | Bracket | |
| 71. | 955561 | [1] | Hexagon screw | |
| 72. | 940280 | [1] | Spring washer | |
| 73. | 842236 | [1] | Spacer sleeve | |
| 74. | 955528 | [2] | Hexagon screw | L=70mm |
| 74. | 955529 | [1] | Hexagon screw | L=76mm |
| 75. | 941907 | [3] | Spring washer | |
| 76. | 821542 | [3] | Spacer sleeve | |
| 77. | 955826 | [1] | Hexagon nut | |
| 78. | 941907 | [1] | Spring washer | |
| 79. | ||||
| 80. | 950144 | [2] | Screw | |
| 81. | 120265 | [2] | Washer | |
| 82. | Acc. to classification. |
