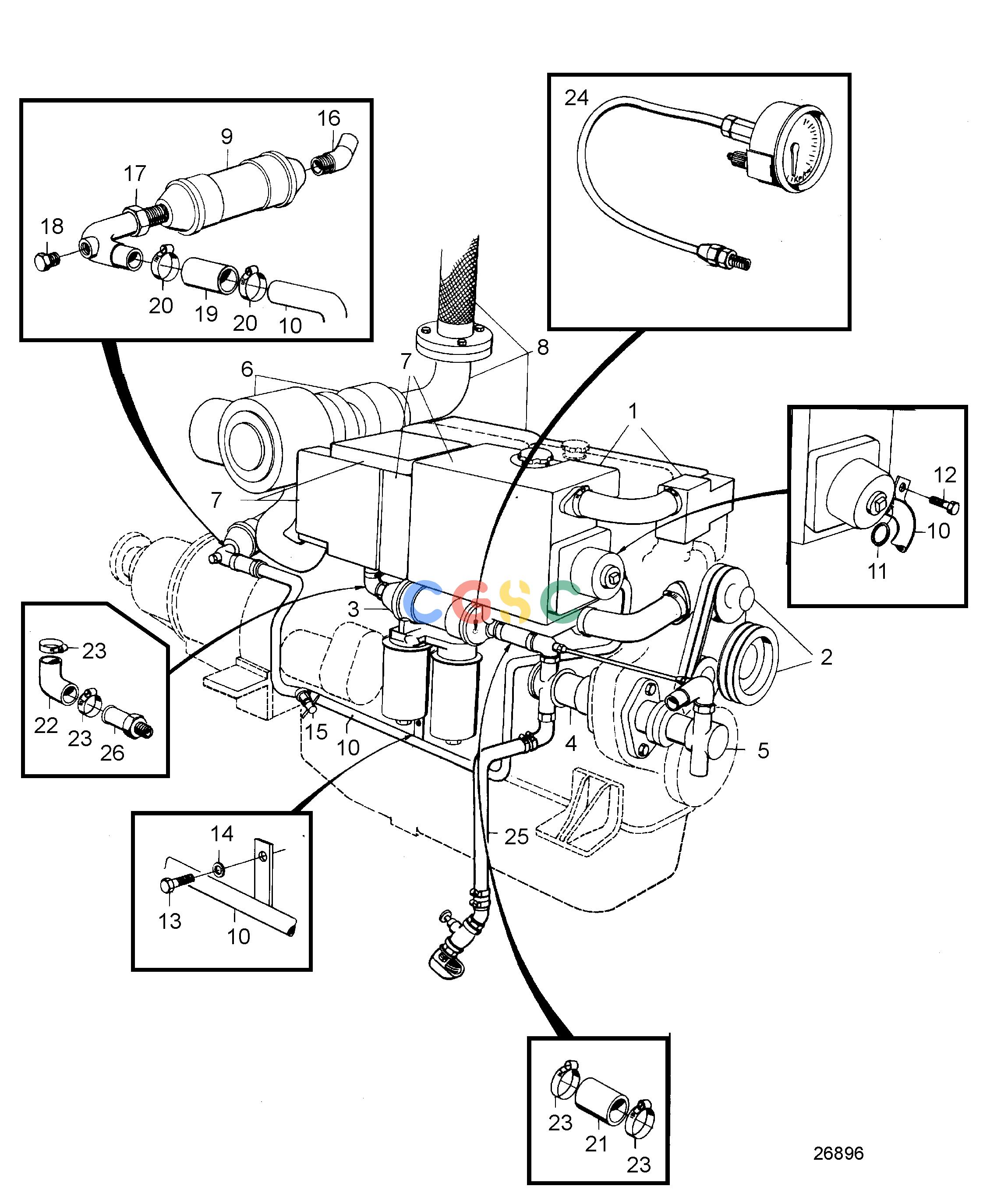

| 1. |
7743250_062
|
|
heat exchanger and thermostat with installation comps
|
|
| 2. |
7743250_074
|
|
circulation pump and drive device with installation comps
|
|
| 3. |
7743250_066
|
|
oil cooler and installation comps
|
|
| 4. |
7743250_069
|
|
sea water pump and installation comps
|
|
| 5. |
|
|
|
See group 9
|
| 6. |
7743250_078
|
|
turbo and air filter with installation comps
|
|
| 7. |
7743250_084
|
|
inlet manifold and after cooler with installation comps
|
|
| 8. |
7743250_085
|
|
exhaust manifold with installation comps
|
|
| 9. |
|
|
|
See group 4
|
| 10. |
843020
|
[1] |
Coolant pipe
|
|
| 11. |
836778
|
[1] |
Gasket
|
|
| 12. |
950060
|
[2] |
Cross recessed screw
|
|
| 13. |
940162
|
[1] |
Hexagon screw
|
See group 2A
|
| 14. |
942336
|
[1] |
Spring washer
|
See group 2A
|
| 15. |
192134
|
[1] |
Plug
|
|
| 16. |
836759
|
[1] |
Hose attachment
|
|
| 17. |
942334
|
[1] |
Hose attachment
|
|
| 18. |
192134
|
[1] |
Plug
|
|
| 19. |
942707
|
[1] |
Hose
|
Reverse gear Twin Disc.., L=170mm
|
| 20. |
994560
|
[2] |
Hose clamp
|
|
| 21. |
942707
|
[1] |
Hose
|
L=90mm
|
| 22. |
837670
|
[1] |
Hose bend
|
|
| 23. |
994561
|
[4] |
Hose clamp
|
|
| 24. |
819815
|
[1] |
Manometer kit
|
See group 9
|
| 25. |
|
|
|
See group 9
|
| 26. |
|
|
|
|
