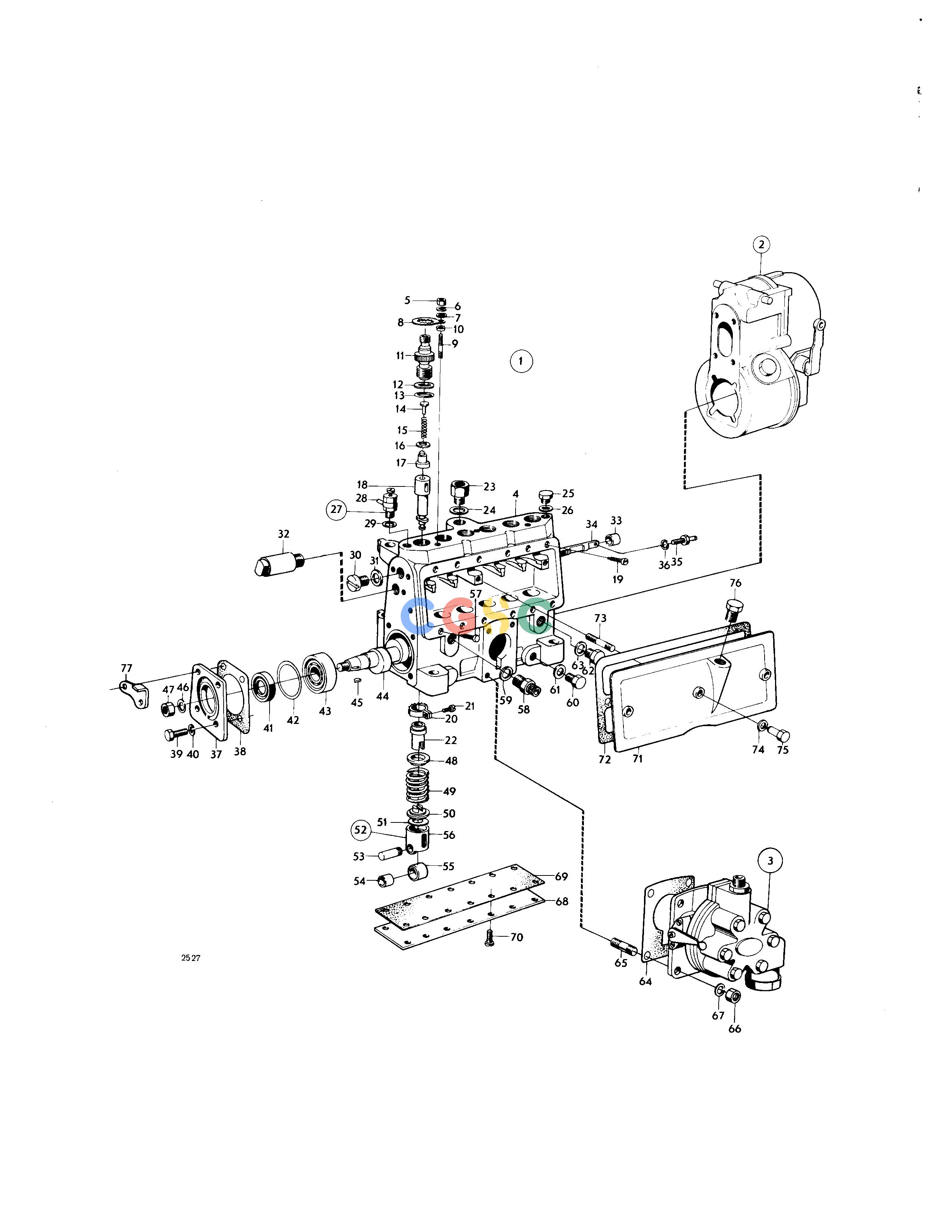

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 242643 | [1] | Injection pump | |
| 2. | 242872 | [1] | Centrifugal governor | |
| 3. | 242034 | [1] | Feed pump | |
| 4. | ||||
| 5. | 242465 | [3] | Nut | |
| 6. | 941906 | [3] | Spring washer | |
| 7. | ||||
| 8. | 236647 | [6] | Lock ring | |
| 9. | 242541 | [3] | Bolt | |
| 10. | 242032 | [3] | Spacer washer | |
| 11. | 236906 | [6] | Retainer | |
| 12. | 236761 | [6] | Gasket | |
| 13. | 78357 | [6] | O-ring | |
| 14. | 242542 | [6] | Plug | |
| 15. | 242682 | [6] | Spring | |
| 16. | 236449 | [6] | Gasket | |
| 17. | 236903 | [6] | Delivery valve | |
| 18. | 242681 | [6] | Pump element | |
| 19. | 115300 | [6] | Lock screw | |
| 20. | 236648 | [6] | Ratchet | |
| 21. | 115070 | [6] | Screw | |
| 22. | 78359 | [6] | Control sleeve | |
| 23. | 236899 | [1] | Fitting | |
| 24. | 242457 | [1] | Washer | |
| 25. | 180748 | [1] | Plug | |
| 26. | 236641 | [1] | Gasket | |
| 27. | 236438 | [1] | Fitting | |
| 28. | 180039 | [1] | Banjo nipple | |
| 29. | 236641 | [1] | Gasket | |
| 30. | 78415 | [2] | Screw | |
| 31. | 236637 | [2] | Gasket | |
| 32. | 236394 | [1] | Bushing | |
| 33. | 78333 | [2] | Bushing | |
| 34. | 236764 | [1] | Control shaft | |
| 35. | 242518 | [1] | Screw | |
| 36. | 941906 | [1] | Spring washer | |
| 37. | 236902 | [1] | Bearing shield | |
| 38. | 78349 | [1] | Gasket | |
| 39. | 955272 | [4] | Hexagon screw | |
| 40. | 941906 | [4] | Spring washer | |
| 41. | 19946 | [1] | Sealing ring | |
| 42. | 236460 | [1] | Adjusting washer | TH=0.15mm |
| 42. | 236461 | [1] | Adjusting washer | TH=0.20mm |
| 42. | 236462 | [1] | Adjusting washer | TH=0.25mm |
| 42. | 236463 | [1] | Adjusting washer | TH=0.91mm |
| 43. | 18524 | [2] | Roller bearing | |
| 44. | 242033 | [1] | Camshaft | |
| 45. | 910115 | [1] | Woodruff key | |
| 46. | 941911 | [1] | Spring washer | |
| 47. | ||||
| 48. | 78362 | [6] | Spring disc | |
| 49. | 78361 | [6] | Spring | |
| 50. | 236650 | [6] | Spring disc | |
| 51. | 78434 | [1] | Adjusting washer | TH=0.3mm |
| 51. | 78433 | [1] | Adjusting washer | TH=0.4mm |
| 51. | 78432 | [1] | Adjusting washer | TH=0.5mm |
| 51. | 78435 | [1] | Adjusting washer | TH=0.6mm |
| 51. | 242803 | [1] | Washer | TH=0.7mm |
| 51. | 78425 | [1] | Adjusting washer | TH=0.8mm |
| 51. | 78426 | [1] | Adjusting washer | TH=0.9mm |
| 51. | 78427 | [1] | Adjusting washer | TH=1.0mm |
| 51. | 78428 | [1] | Adjusting washer | TH=1.1mm |
| 51. | 78429 | [1] | Adjusting washer | TH=1.2mm |
| 51. | 78430 | [1] | Adjusting washer | TH=1.3mm |
| 51. | 78431 | [1] | Adjusting washer | TH=1,4mm |
| 52. | 236466 | [6] | Cam follower | |
| 53. | 78366 | [6] | Pin | |
| 54. | 78367 | [6] | Bushing | |
| 55. | 236456 | [6] | Roller | |
| 56. | ||||
| 57. | 236467 | [6] | Adjusting screw | |
| 58. | 242230 | [1] | Fitting | |
| 59. | 957178 | [1] | Gasket | |
| 60. | 236439 | [1] | Plug | |
| 61. | 236641 | [1] | Gasket | |
| 62. | 960630 | [1] | Plug | |
| 63. | 957178 | [1] | Gasket | |
| 64. | 78414 | [1] | Gasket | |
| 65. | ||||
| 66. | 242465 | [4] | Nut | |
| 67. | 941906 | [4] | Spring washer | |
| 68. | 78337 | [1] | Cover | |
| 69. | 78338 | [1] | Gasket | |
| 70. | 956090 | [14] | Cross recessed screw | |
| 71. | ||||
| 72. | 78341 | [1] | Gasket | |
| 73. | 130026 | [3] | Screw | |
| 74. | 42780 | [3] | Gasket | |
| 75. | 78340 | [3] | Nut | |
| 76. | 960630 | [1] | Plug | |
| 77. | 242418 | [1] | Setting indicator |
