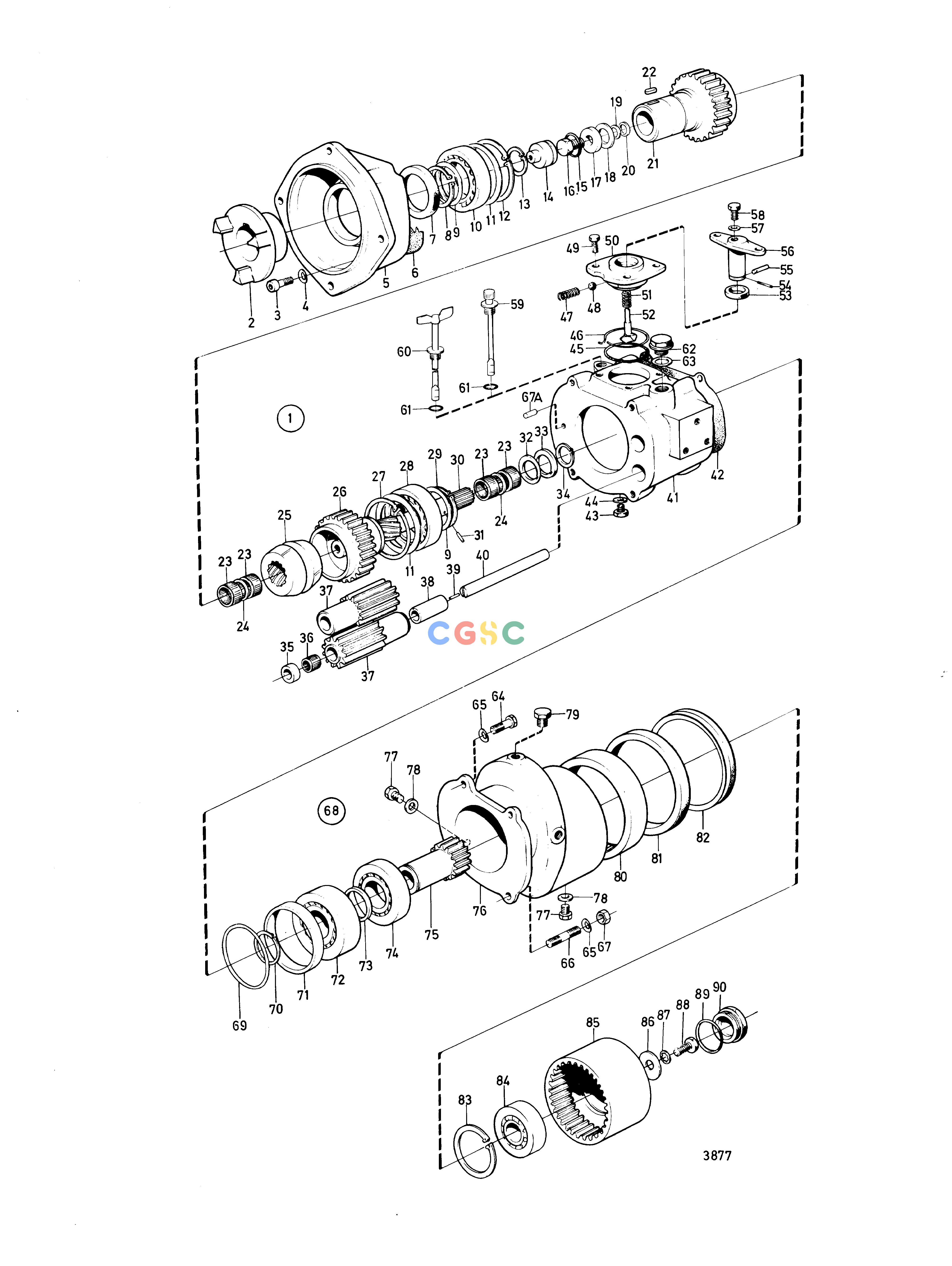

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 834210 | [1] | Reversing gear | Ratio 1,91:1 |
| 2. | 827617 | [1] | Companion flange | |
| 3. | 959223 | [4] | Hex. socket screw | |
| 4. | 941907 | [4] | Spring washer | |
| 5. | 834036 | [1] | Cover | |
| 6. | 852156 | [1] | Gasket | |
| 7. | 958878 | [1] | Sealing ring | |
| 8. | 914472 | [1] | Snap ring | |
| 10. | 19578 | [1] | Ball bearing | |
| 12. | 914540 | [1] | Snap ring | |
| 13. | 914517 | [1] | Snap ring | |
| 14. | 827317 | [1] | Plug | |
| 15. | 955997 | [1] | O-ring | |
| 16. | 827583 | [1] | Screw | |
| 17. | 827665 | [1] | Washer | |
| 18. | 827315 | [1] | Washer | |
| 19. | 25930 | [1] | Shim | TH=0,10mm |
| 19. | 120073 | [1] | Shim | TH=0.50mm |
| 21. | 827309 | [1] | Gear | |
| 22. | 944013 | [1] | Key | |
| 23. | 181268 | [4] | Needle roller assemb | |
| 24. | 813939 | [2] | Spacer ring | |
| 25. | 827590 | [1] | Sliding sleeve | |
| 26. | 827310 | [1] | Gear | |
| 27. | 914540 | [1] | Snap ring | |
| 28. | 19578 | [1] | Ball bearing | |
| 29. | 914472 | [1] | Snap ring | |
| 30. | 827589 | [1] | Shaft | |
| 31. | 850761 | [1] | Pin | |
| 33. | 813941 | [1] | Spacer ring | |
| 34. | 814030 | [1] | Lock ring | |
| 35. | 827314 | [4] | Bushing | |
| 36. | 183366 | [4] | Needle roller assemb | |
| 37. | 827312 | [2] | Gear | |
| 38. | 834008 | [2] | Spacer sleeve | |
| 39. | 951931 | [2] | Clamping pin | |
| 40. | 827313 | [2] | Planet shaft | |
| 41. | 827306 | [1] | Planetary housing | |
| 42. | 827889 | [1] | Gasket | |
| 43. | 960628 | [1] | Plug | |
| 44. | 834452 | [1] | Gasket | |
| 45. | 925093 | [1] | O-ring | |
| 46. | 941338 | [1] | Locking wire | L=300mm, early type |
| 47. | 839136 | [2] | Spring | Early type |
| 48. | 60309 | [2] | Ball | Early type |
| 49. | 955272 | [4] | Hexagon screw | |
| 50. | 839505 | [1] | Bearing housing | |
| 51. | 814184 | [1] | Spring | |
| 52. | 814603 | [1] | Dog | |
| 53. | 958838 | [1] | Sealing ring | (941866) |
| 54. | 951924 | [1] | Spring pin | |
| 55. | 942871 | [1] | Clevis pin | |
| 56. | 897816 | [1] | Eccentric piston | |
| 57. | 897871 | [1] | Shim | TH=0.20mm |
| 58. | 897711 | [1] | Hexagon screw | |
| 59. | 827341 | [1] | Oil dipstick | |
| 61. | 925053 | [1] | O-ring | |
| 62. | 198 | [1] | Screw | |
| 63. | 15305 | [1] | Gasket | |
| 64. | 955297 | [2] | Hexagon screw | Late type |
| 65. | 941907 | [4] | Spring washer | |
| 66. | 924062 | [2] | Stud | Late type |
| 67. | 955782 | [2] | Hexagon nut | Late type |
| 68. | 827664 | [1] | Reduction gear | |
| 69. | 944562 | [1] | Shim | TH=0,10mm |
| 69. | 945733 | [1] | Adjusting washer | TH=0.35mm |
| 70. | 914465 | [1] | Snap ring | |
| 71. | 827653 | [1] | Spacer ring | |
| 72. | 11025 | [1] | Ball bearing | |
| 73. | 827654 | [1] | Spacer ring | |
| 74. | 183523 | [1] | Roller bearing | |
| 75. | 827652 | [1] | Gear | |
| 76. | 827639 | [1] | Gear housing | |
| 77. | 914389 | [2] | Plug | Late type |
| 78. | 834452 | [2] | Gasket | Late type |
| 79. | 946185 | [2] | Plug | |
| 80. | 183524 | [1] | Needle roller bearin | |
| 81. | Replaced by 942950 + 947044., Early type | |||
| 81. | 942950 | [1] | Sealing ring | Late type |
| 82. | 947044 | [1] | Sealing ring | Late type |
| 83. | 914533 | [1] | Snap ring | |
| 84. | 11023 | [1] | Ball bearing | |
| 85. | 827651 | [1] | Gear | |
| 86. | 827659 | [1] | Washer | |
| 87. | 940109 | [1] | Toothed washer | |
| 88. | 959640 | [1] | Hexagon screw | |
| 89. | Replaced by 955998 + 827936., Early type | |||
| 89. | 955998 | [1] | O-ring | Late type |
| 90. | Replaced by 955998 + 827936., Early type | |||
| 90. | 827936 | [1] | Plug | Late type |
| 90. | 875577 | [1] | Gasket kit | See group 10 |
