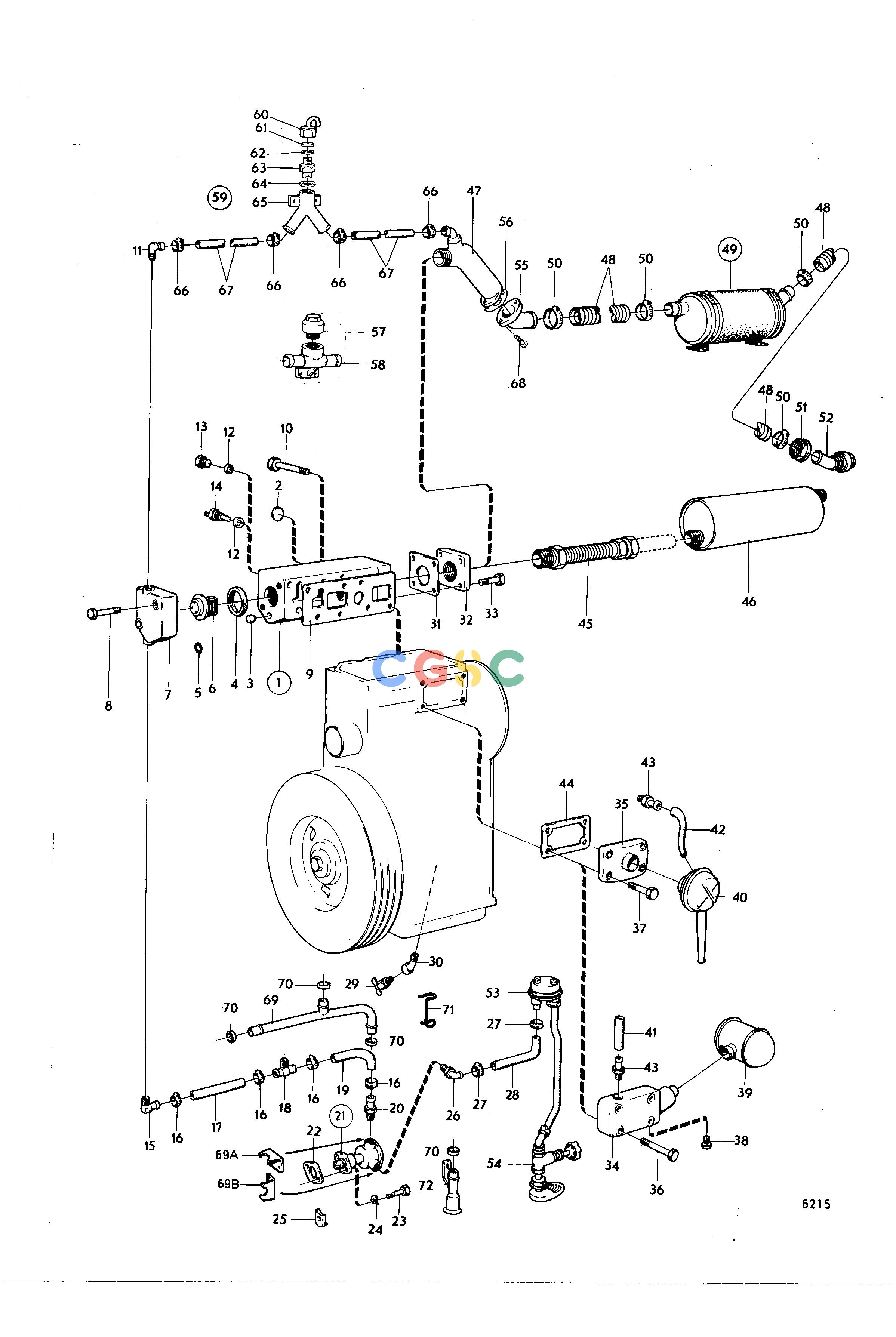

| 1. |
840211
|
[1] |
Exhaust pipe
|
|
| 2. |
192211
|
[2] |
Expansion plug
|
D=35mm
|
| 2. |
192426
|
[1] |
Expansion plug
|
D=26mm
|
| 3. |
3848797
|
[1] |
Plug
|
|
| 4. |
416033
|
[1] |
Sealing ring
|
(418361)
|
| 5. |
955989
|
[1] |
O-ring
|
|
| 6. |
875796
|
[1] |
Thermostat kit
|
60°C
|
| 7. |
3875367
|
[1] |
Cover
|
|
| 8. |
955299
|
[2] |
Hexagon screw
|
|
| 9. |
3875382
|
[1] |
Gasket
|
|
| 10. |
940129
|
[4] |
Hexagon screw
|
|
| 11. |
801197
|
[1] |
Hose attachment
|
|
| 12. |
957181
|
[1] |
Gasket
|
|
| 13. |
960632
|
[1] |
Plug
|
Alt
|
| 14. |
|
|
|
Alt, see group 3
|
| 15. |
945343
|
[1] |
Hose attachment
|
|
| 16. |
943471
|
[4] |
Hose clamp
|
(951787)
|
| 17. |
943416
|
[1] |
Rubber hose
|
L=190mm
|
| 18. |
840002
|
[1] |
Hose attachment
|
|
| 19. |
3875787
|
[1] |
Hose
|
|
| 20. |
803648
|
[1] |
Hose attachment
|
|
| 21. |
807368
|
[1] |
Water pump
|
Replaced by 833415., MO-2994, 3015-3029, 3113-3189.
|
| 21. |
833415
|
[1] |
Water pump
|
|
| 22. |
802551
|
[1] |
Gasket
|
|
| 23. |
955295
|
[2] |
Hexagon screw
|
|
| 24. |
941907
|
[2] |
Spring washer
|
|
| 26. |
|
|
|
|
| 26. |
897391
|
[1] |
Hose attachment
|
MD6A/100S spec 867193. MD6A spec 867232.
|
| 27. |
943472
|
[2] |
Hose clamp
|
|
| 28. |
943368
|
[1] |
Rubber hose
|
L=200mm
|
| 29. |
807036
|
[1] |
Shut-off cock
|
|
| 30. |
807079
|
[1] |
Elbow nipple
|
|
| 31. |
3875050
|
[1] |
Gasket
|
|
| 32. |
3875051
|
[1] |
Flange
|
|
| 33. |
955296
|
[4] |
Hexagon screw
|
|
| 34. |
|
|
|
Replaced by 840021 + 833414 + 840022 + 4PCS 940142., MO-1302
|
| 35. |
840021
|
[1] |
Inlet manifold
|
MO 1303-
|
| 36. |
955302
|
[4] |
Hexagon screw
|
MO-1302
|
| 37. |
940142
|
[4] |
Hexagon screw
|
MO 1303-
|
| 38. |
3848887
|
[1] |
Plug
|
MO-1302
|
| 39. |
|
|
|
Replaced by 840021 + 833414 + 840022 + 4PCS 940142., MO-1302
|
| 40. |
833414
|
[1] |
Air filter
|
MO 1303-
|
| 41. |
3875728
|
[1] |
Hose
|
MO-1302
|
| 42. |
840022
|
[1] |
Rubber hose
|
MO 1303-
|
| 43. |
3849143
|
[1] |
Nipple
|
MO 1303-
|
| 44. |
3875381
|
[1] |
Gasket
|
|
| 45. |
833841
|
[1] |
Compensator
|
Dry exhaust line.
|
| 46. |
833840
|
[1] |
Silencer
|
Dry exhaust line.
|
| 47. |
833602
|
[1] |
Exhaust bellows
|
See group 9
|
| 47. |
|
|
|
|
| 48. |
833755
|
[1] |
Rubber hose
|
|
| 49. |
|
|
|
See group 9, early type
|
| 49. |
828064
|
[1] |
Silencer
|
See group 9
|
| 50. |
961672
|
[5] |
Hose clamp
|
|
| 51. |
827877
|
[1] |
Nut
|
|
| 52. |
827874
|
[1] |
Hull fitting
|
See group 9
|
| 53. |
831733
|
[1] |
Strainer
|
See group 9
|
| 54. |
828242
|
[1] |
Coolant inlet
|
(836900) see group 9
|
| 55. |
834292
|
[1] |
Exhaust pipe elbow
|
|
| 56. |
803374
|
[1] |
Gasket
|
|
| 57. |
|
|
|
Replaced by 828263, 828262., Early type
|
| 58. |
|
|
|
Replaced by 828263, 828262., Early type
|
| 59. |
828534
|
[1] |
Vacuum valve
|
(828263)
|
| 60. |
|
|
|
|
| 61. |
|
|
|
|
| 62. |
828424
|
[2] |
Gasket
|
|
| 63. |
|
|
|
|
| 64. |
947282
|
[2] |
Gasket
|
|
| 65. |
828262
|
[1] |
Hose connection
|
Late type
|
| 66. |
961666
|
[4] |
Hose clamp
|
|
| 67. |
13569
|
[1] |
Hose
|
|
| 68. |
955320
|
[2] |
Hexagon screw
|
|
